3X-V65S-C3-3XR

6-port small cell antenna, 6x 1695–2690 MHz, 65° HPBW, 3x RET

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

Three DualPol® antennas under one radome
Fully integrated flange mounting system for ease of installation
Ideal concealment solution for areas with special regulations regarding visual impact

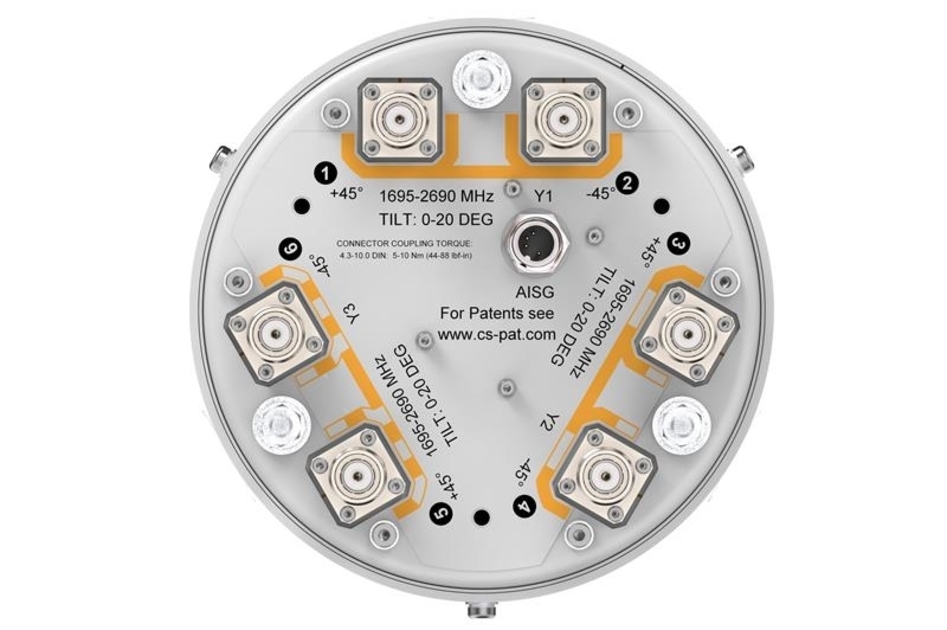

4.3-10 connector significantly improves PIM consistency and smaller footprint on antenna bottom

Specifications

General specifications

Antenna Type	Small Cell
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	6
RF Connector Quantity, total	6

RET Interface	8-pin DIN Male
RET Interface, quantity	1 male
Input Voltage	10–30 Vdc
Internal RET	Mid band (3)
Power Consumption, active state, maximum	13 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Multi-RET)

Click on image to enlarge.

Click on image to enlarge.

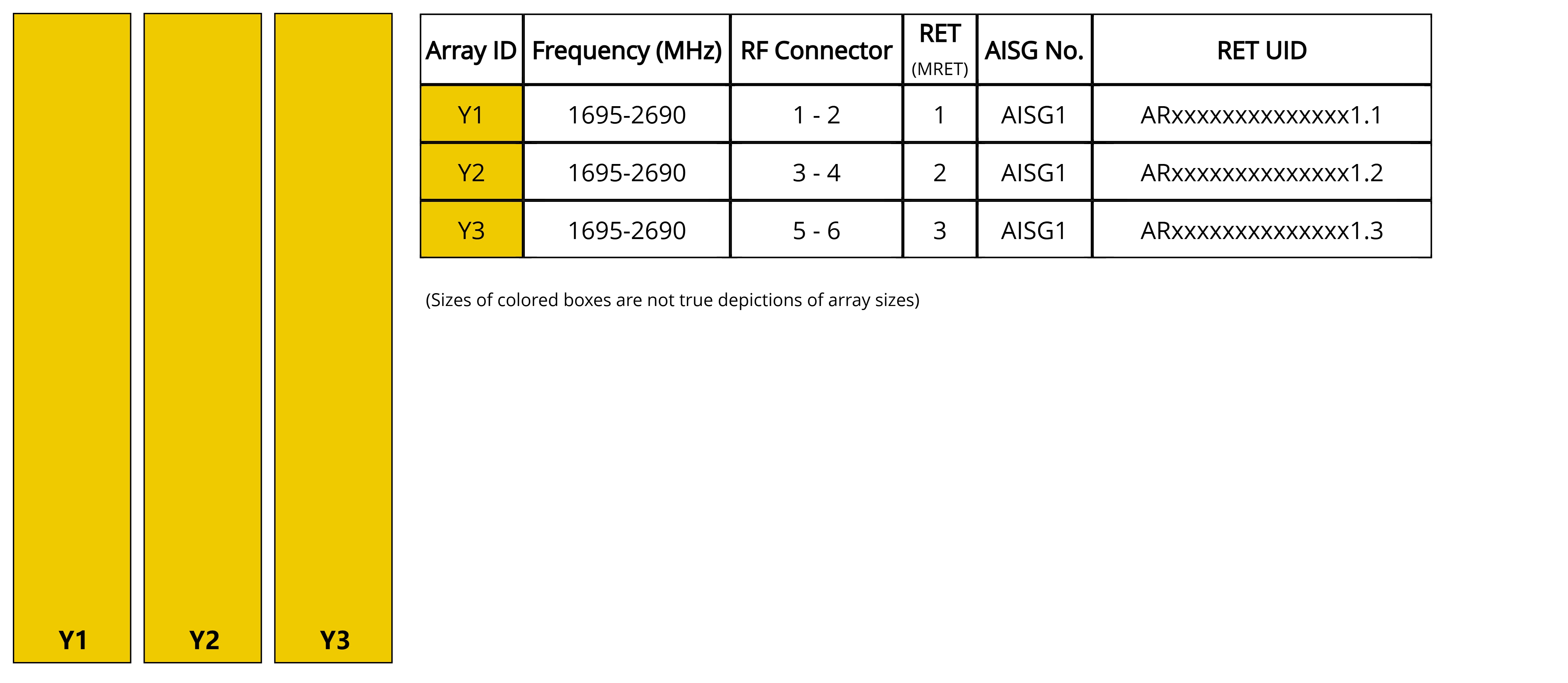

	Y1-Y3	Y1-Y3	Y1-Y3	Y1-Y3	Y1-Y3
Frequency Band, MHz	1695–1880	1850–1990	1920–2200	2300–2500	2500–2690
RF Port	1-6	1-6	1-6	1-6	1-6
Gain, dBi	13.3	13.6	13.7	14.3	14.3
Beamwidth, Horizontal, degrees	74	73	72	68	71
Beamwidth, Vertical, degrees	18.7	17.5	16.7	14.6	13.6
Beam Tilt, degrees	0–20	0–20	0–20	0–20	0–20
USLS (First Lobe), dB	15	16	16	16	15
Front-to-Back Ratio at 180°, dB	32	31	30	34	36
Isolation, Cross Polarization, dB	25	25	25	25	25
Isolation, Inter-band, dB	35	35	35	35	35
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-150	-150
Input Power per Port, maximum, watts	300	300	300	250	250

Wind Loading @ Velocity, frontal	58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	58.0 N @ 150 km/h (13.0 lbf @ 150 km/h)
Wind Speed, maximum	241.4 km/h (150 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
UK-ROHS	Compliant
