5V-12A-R5

10-port multibeam antenna, 10x 1710–2690 MHz, 5x 10-14° HPBW, 5x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Provides 5 beams, Supporting for high capacity at venues or special events
Increases capacity density for maximum throughput
Antenna is equipped with 5 RETs motors to provide independent electrical tilt control for each beam
Novel design produces stable beam peak positions

Specifications

General specifications

Antenna Type	Multibeam
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	10
RF Connector Quantity, total	10

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Mid band (5)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	749 mm \| 29.488 in
Depth	197 mm \| 7.756 in
Length	1042 mm \| 41.024 in
Net Weight, without mounting kit	40 kg \| 88.185 lb

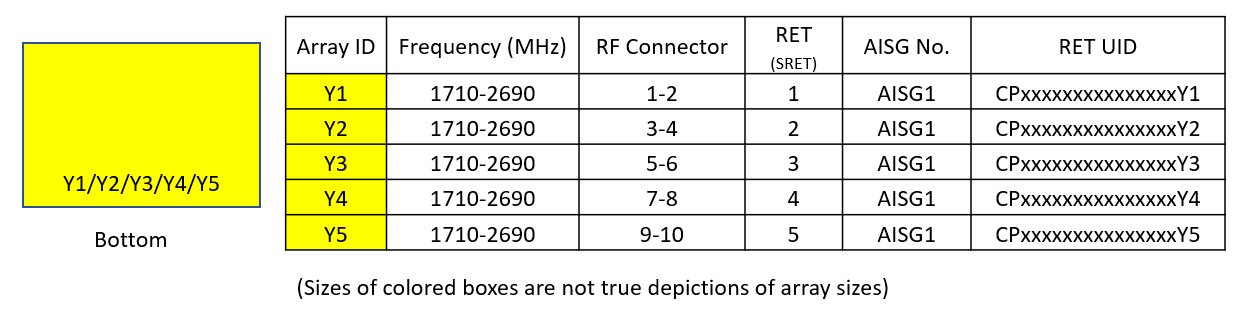

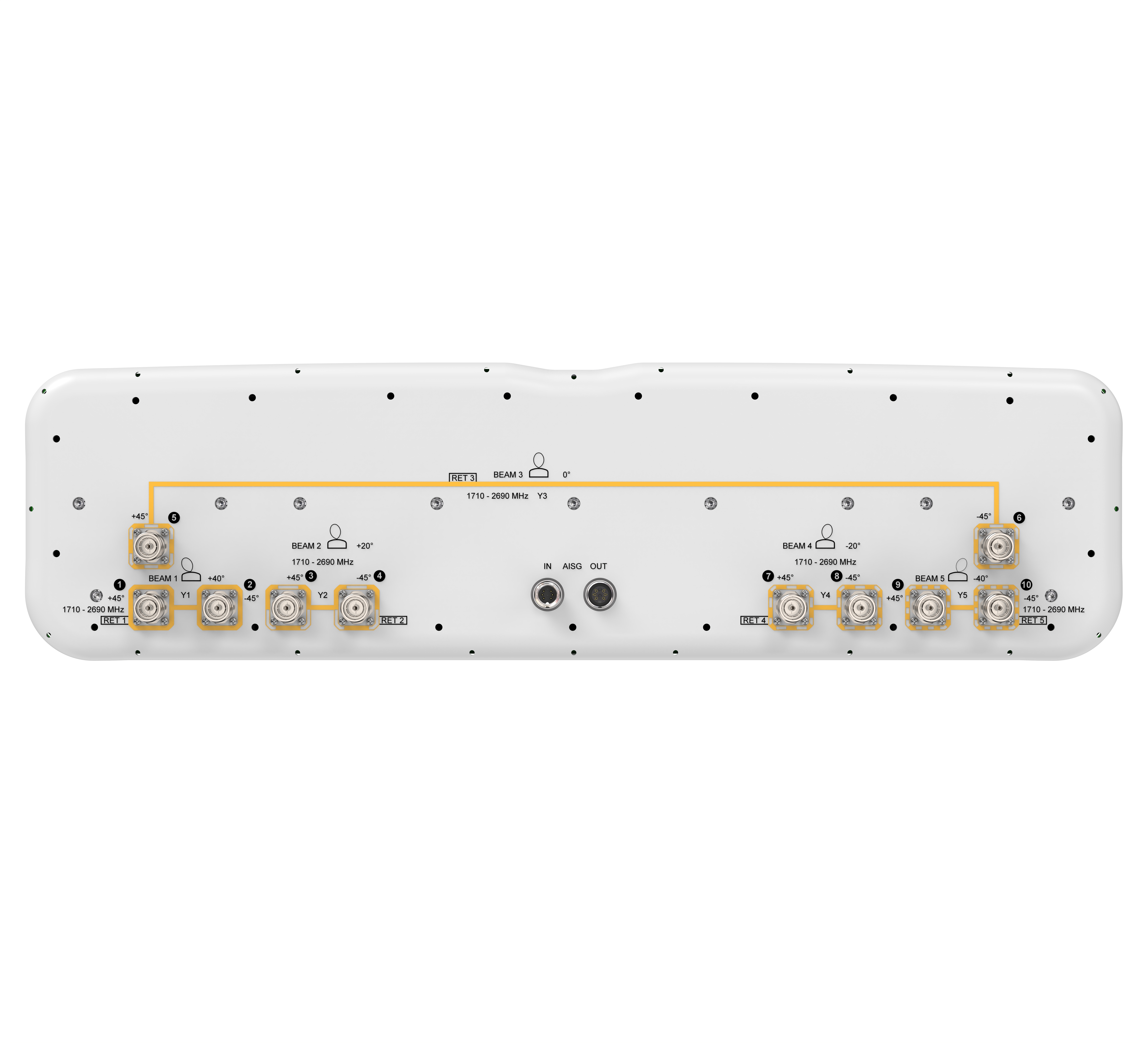

Click on image to enlarge.

Click on image to enlarge.

	Y1-Y5	Y1-Y5	Y1-Y5	Y1-Y5
Frequency Band, MHz	1710–1920	1920–2180	2300–2500	2500–2690
RF Port	1-10	1-10	1-10	1-10
Gain, dBi	21.0	21.6	21.8	22.0
Beam Centers, Horizontal, degrees	±0 ±20 ±40	±0 ±20 ±40	±0 ±20 ±40	±0 ±20 ±40
Beamwidth, Horizontal, degrees	14	13	11	10
Beamwidth, Vertical, degrees	9.9	9	7.7	7.2
Beam Tilt, degrees	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	20	20	18	17
Front-to-Back Ratio at 180°, dB	33	35	31	31
Isolation, Cross Polarization, dB	25	25	25	25
Isolation, Beam to Beam, dB	17	17	17	17
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port, maximum, watts	200	200	200	200

Wind Loading @ Velocity, frontal	1,000.0 N @ 150 km/h (224.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	96.0 N @ 150 km/h (21.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,000.0 N @ 150 km/h (224.8 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
UK-ROHS	Compliant

Antenna Type	Multibeam
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	10
RF Connector Quantity, total	10

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Mid band (5)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	749 mm \| 29.488 in
Depth	197 mm \| 7.756 in
Length	1042 mm \| 41.024 in
Net Weight, without mounting kit	40 kg \| 88.185 lb

	Y1-Y5	Y1-Y5	Y1-Y5	Y1-Y5
Frequency Band, MHz	1710–1920	1920–2180	2300–2500	2500–2690
RF Port	1-10	1-10	1-10	1-10
Gain, dBi	21.0	21.6	21.8	22.0
Beam Centers, Horizontal, degrees	±0; ±20; ±40	±0; ±20; ±40	±0; ±20; ±40	±0; ±20; ±40
Beamwidth, Horizontal, degrees	14	13	11	10
Beamwidth, Vertical, degrees	9.9	9	7.7	7.2
Beam Tilt, degrees	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	20	20	18	17
Front-to-Back Ratio at 180°, dB	33	35	31	31
Isolation, Cross Polarization, dB	25	25	25	25
Isolation, Beam to Beam, dB	17	17	17	17
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port, maximum, watts	200	200	200	200

Wind Loading @ Velocity, frontal	1,000.0 N @ 150 km/h (224.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	96.0 N @ 150 km/h (21.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,000.0 N @ 150 km/h (224.8 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)
