APXVAALL12M-C-I20

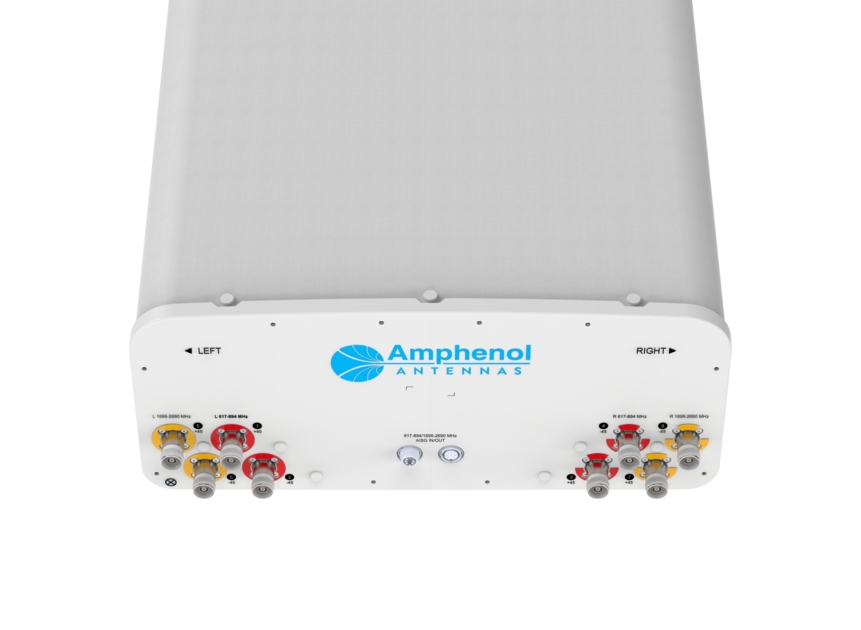

8-port sector antenna, 4x 617-894 and 4x 1695-2690 MHz, 65° HPBW, 2x RET

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage

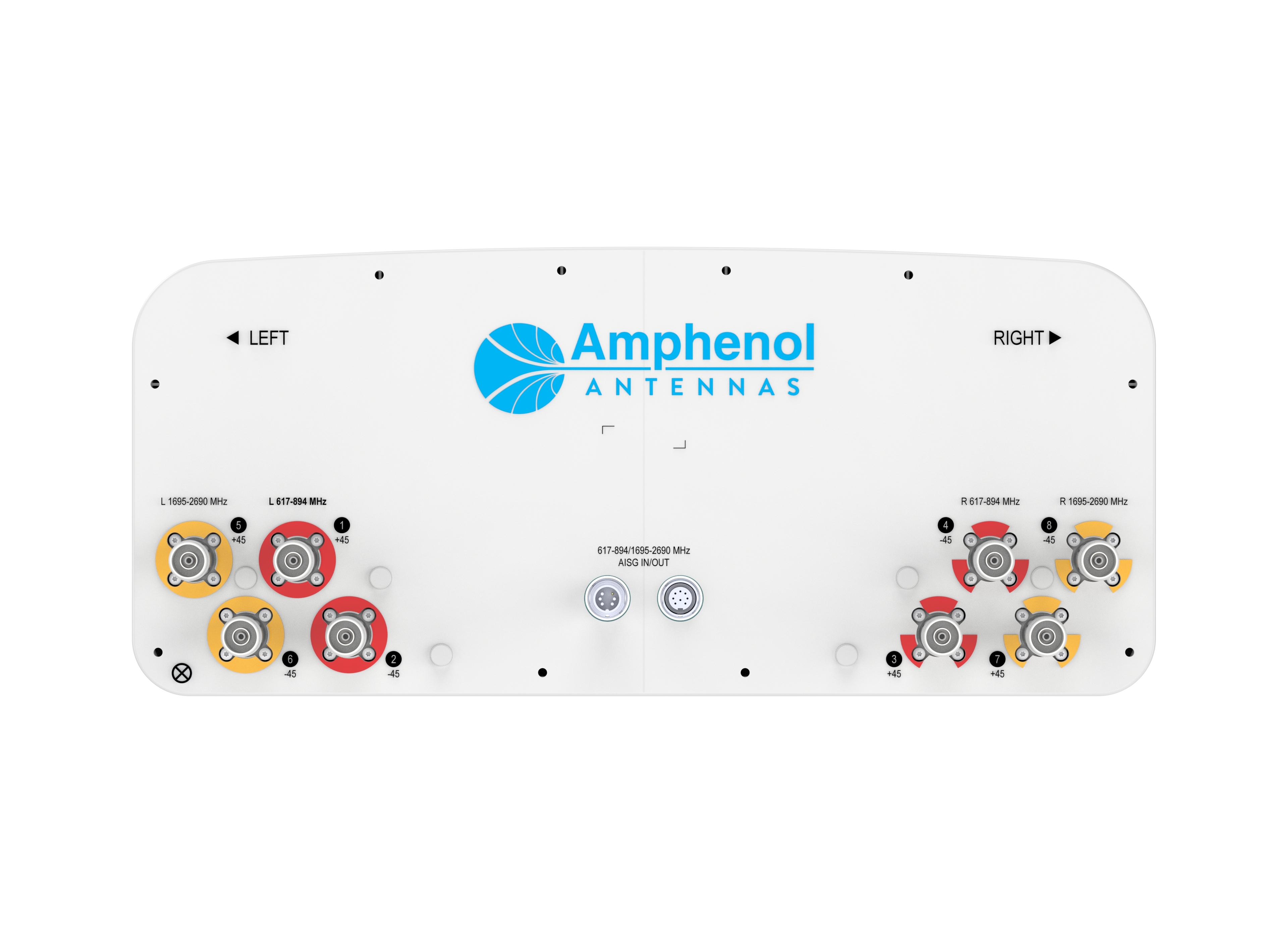

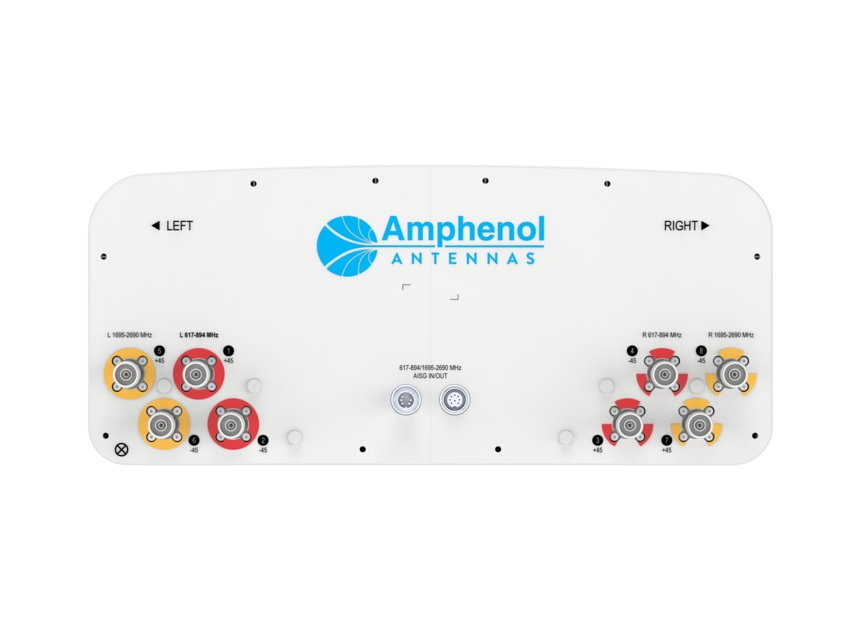

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	4
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Low band (1) \| Mid band (1)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0

Width	499 mm \| 19.646 in
Depth	215 mm \| 8.465 in
Length	1219 mm \| 47.992 in

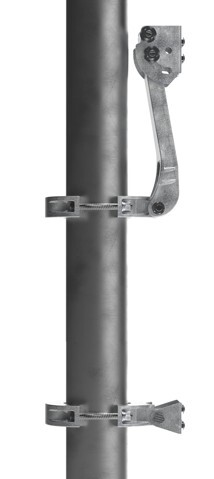

Net Weight, without mounting kit	22 kg \| 48.502 lb

Click on image to enlarge.

Click on image to enlarge.

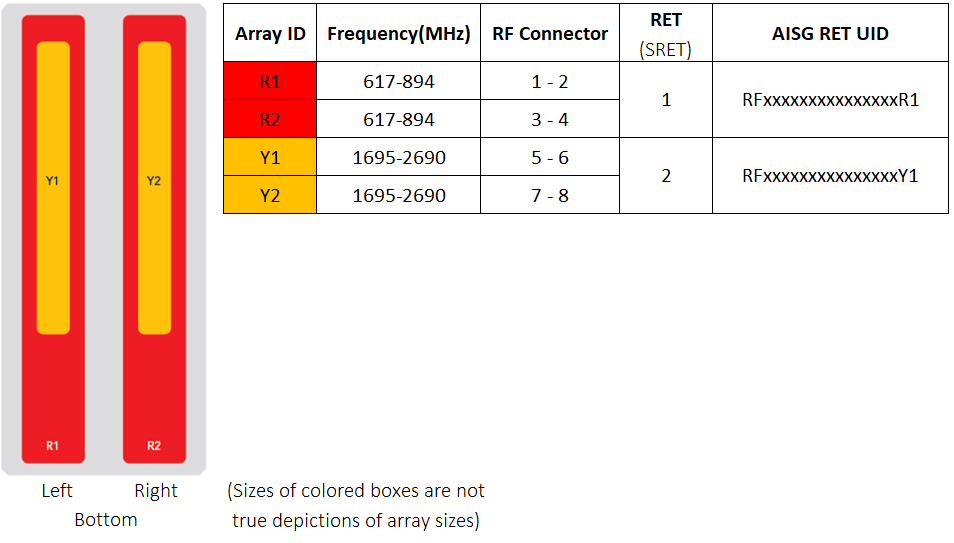

	R1,R2	R1,R2	R1,R2	Y1,Y2	Y1,Y2	Y1,Y2	Y1,Y2
Frequency Band, MHz	617–698	698–806	806–894	1695–1880	1850–1990	1995–2200	2200–2690
RF Port	1-4	1-4	1-4	5-8	5-8	5-8	5-8
Gain, dBi	13.0	13.8	13.9	16.0	16.3	16.7	17.4
Gain at Mid Tilt, dBi	12.6	13.5	13.7	15.2	16.0	16.5	16.7
Beamwidth, Horizontal, degrees	71	64	58	71	65	62	59
Beamwidth, Vertical, degrees	19.1	17.4	15.3	9.5	8.7	7.6	6.5
Beam Tilt, degrees	2–18	2–18	2–18	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	14	14	15	19	18	16	15
Front-to-Back Ratio at 180°, dB	26	24	29	29	28	27	27
Front-to-Back Total Power at 180° ± 30°, dB	18	20	21	23	22	23	22
CPR at Boresight, dB	20	21	16	15	21	18	18
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25
Isolation, Inter-band, dB	19	19	19	23	23	23	23
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	250	250

BASTA Version, mechanical

BASTA v12

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
UK-ROHS	Compliant

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, mid band	4
RF Connector Quantity, low band	4
RF Connector Quantity, total	8

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Input Voltage	10–30 Vdc
Internal RET	Low band (1) \| Mid band (1)
Power Consumption, active state, maximum	10 W
Power Consumption, idle state, maximum	2 W
Protocol	3GPP/AISG 2.0

Width	499 mm \| 19.646 in
Depth	215 mm \| 8.465 in
Length	1219 mm \| 47.992 in
Net Weight, without mounting kit	22 kg \| 48.502 lb

	R1,R2	R1,R2	R1,R2	Y1,Y2	Y1,Y2	Y1,Y2	Y1,Y2
Frequency Band, MHz	617–698	698–806	806–894	1695–1880	1850–1990	1995–2200	2200–2690
RF Port	1-4	1-4	1-4	5-8	5-8	5-8	5-8
Gain, dBi	13.0	13.8	13.9	16.0	16.3	16.7	17.4
Gain at Mid Tilt, dBi	12.6	13.5	13.7	15.2	16.0	16.5	16.7
Beamwidth, Horizontal, degrees	71	64	58	71	65	62	59
Beamwidth, Vertical, degrees	19.1	17.4	15.3	9.5	8.7	7.6	6.5
Beam Tilt, degrees	2–18	2–18	2–18	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	14	14	15	19	18	16	15
Front-to-Back Ratio at 180°, dB	26	24	29	29	28	27	27
Front-to-Back Total Power at 180° ± 30°, dB	18	20	21	23	22	23	22
CPR at Boresight, dB	20	21	16	15	21	18	18
Isolation, Cross Polarization, dB	25	25	25	25	25	25	25
Isolation, Inter-band, dB	19	19	19	23	23	23	23
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153	-153	-153	-153
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	250	250
