CV65BSX-M | CV65BSX-2X2
4-port sector antenna, 2x 790–960 and 2x 1710–2690 MHz, 65° HPBW, RET compatible
Features and benefits
- Utilizes AccuRET® actuator(s) on the back of the antenna
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |

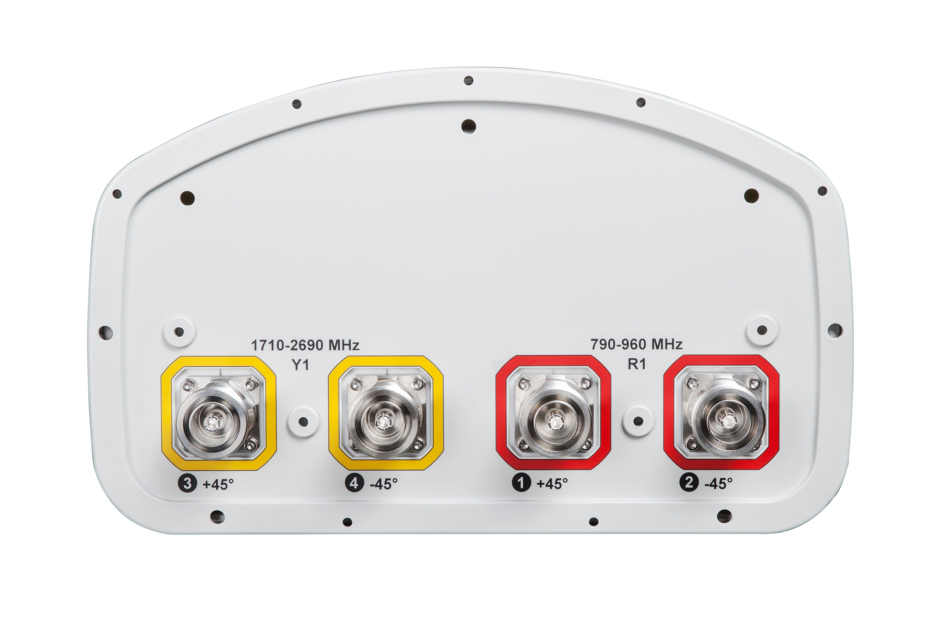

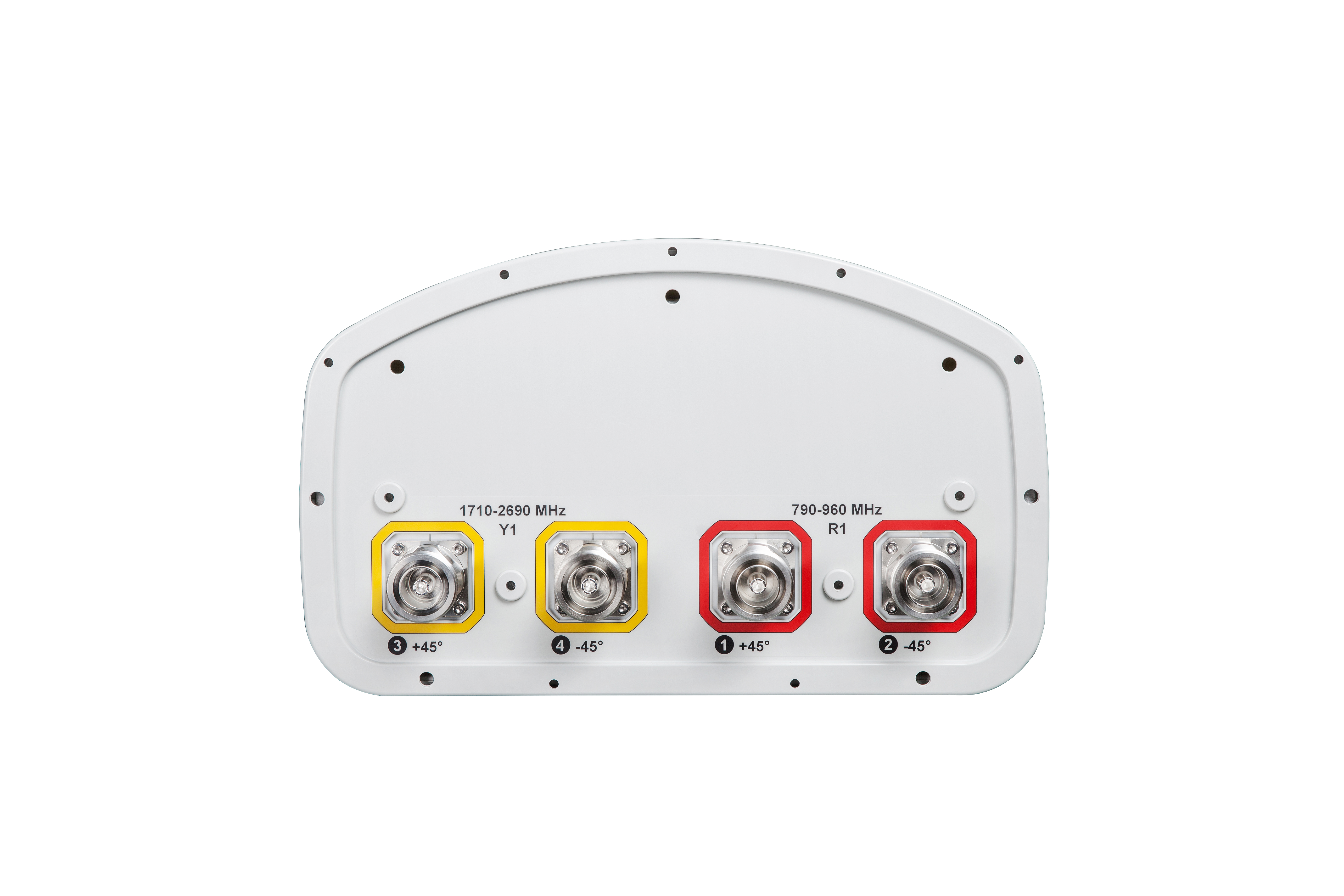

| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | CV65BSX-2X2 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1974 mm | 77.717 in |
| Net Weight, without mounting kit | 17.9 kg | 39.463 lb |

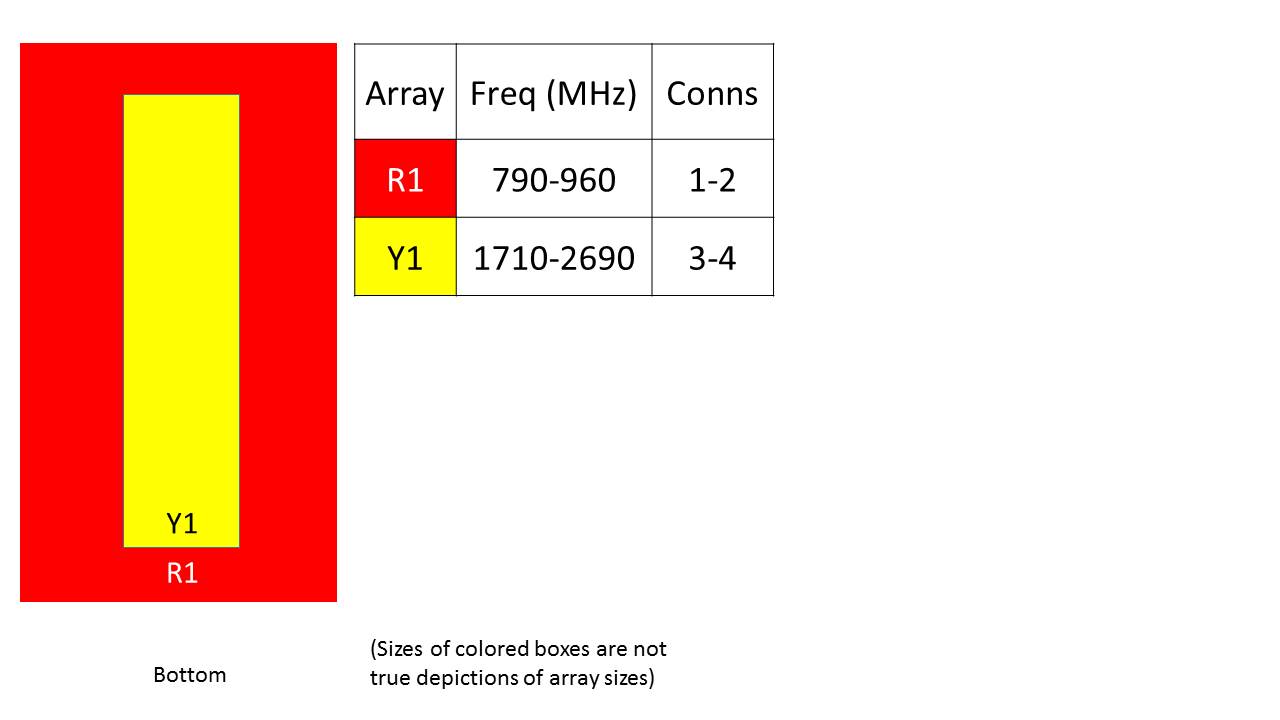

Array layout
| Click on image to enlarge. |
Port configuration
| Click on image to enlarge. | |
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–896 | 870–960 | 1710–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 15.6 | 15.6 | 17.4 | 17.7 | 18.1 | 18.0 | 18.2 |
| Beamwidth, Horizontal, degrees | 63 | 62 | 71 | 66 | 67 | 57 | 58 |
| Beamwidth, Vertical, degrees | 10.5 | 9.7 | 5.6 | 5.3 | 5 | 4.3 | 4.1 |
| Beam Tilt, degrees | 0–10 | 0–10 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 16 | 15 | 16 | 16 | 15 | 16 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 28 | 25 | 23 | 29 | 30 |
| CPR at Boresight, dB | 25 | 25 | 20 | 21 | 20 | 16 | 18 |
| CPR at Sector, dB | 10 | 10 | 9 | 7 | 7 | 5 | 7 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 350 | 350 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 306.0 N @ 150 km/h (68.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 253.0 N @ 150 km/h (56.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 589.0 N @ 150 km/h (132.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 441 mm | 17.362 in |
| Depth, packed | 337 mm | 13.268 in |
| Length, packed | 2108 mm | 82.992 in |
| Weight, gross | 34.6 kg | 76.28 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | CV65BSX-2X2 |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1974 mm | 77.717 in |
| Net Weight, without mounting kit | 17.9 kg | 39.463 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz | 1710 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–896 | 870–960 | 1710–1880 | 1850–1990 | 1920–2180 | 2300–2500 | 2500–2690 |
| Gain, dBi | 15.6 | 15.6 | 17.4 | 17.7 | 18.1 | 18.0 | 18.2 |
| Beamwidth, Horizontal, degrees | 63 | 62 | 71 | 66 | 67 | 57 | 58 |
| Beamwidth, Vertical, degrees | 10.5 | 9.7 | 5.6 | 5.3 | 5 | 4.3 | 4.1 |
| Beam Tilt, degrees | 0–10 | 0–10 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 14 | 16 | 15 | 16 | 16 | 15 | 16 |
| Front-to-Back Ratio at 180°, dB | 29 | 29 | 28 | 25 | 23 | 29 | 30 |
| CPR at Boresight, dB | 25 | 25 | 20 | 21 | 20 | 16 | 18 |
| CPR at Sector, dB | 10 | 10 | 9 | 7 | 7 | 5 | 7 |
| Isolation, Cross Polarization, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Isolation, Inter-band, dB | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 350 | 350 | 350 | 350 | 350 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 306.0 N @ 150 km/h (68.8 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 253.0 N @ 150 km/h (56.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 589.0 N @ 150 km/h (132.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 310.0 N @ 150 km/h (69.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 441 mm | 17.362 in |
| Depth, packed | 337 mm | 13.268 in |
| Length, packed | 2108 mm | 82.992 in |
| Weight, gross | 34.6 kg | 76.28 lb |
| Click on image to enlarge. | |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
