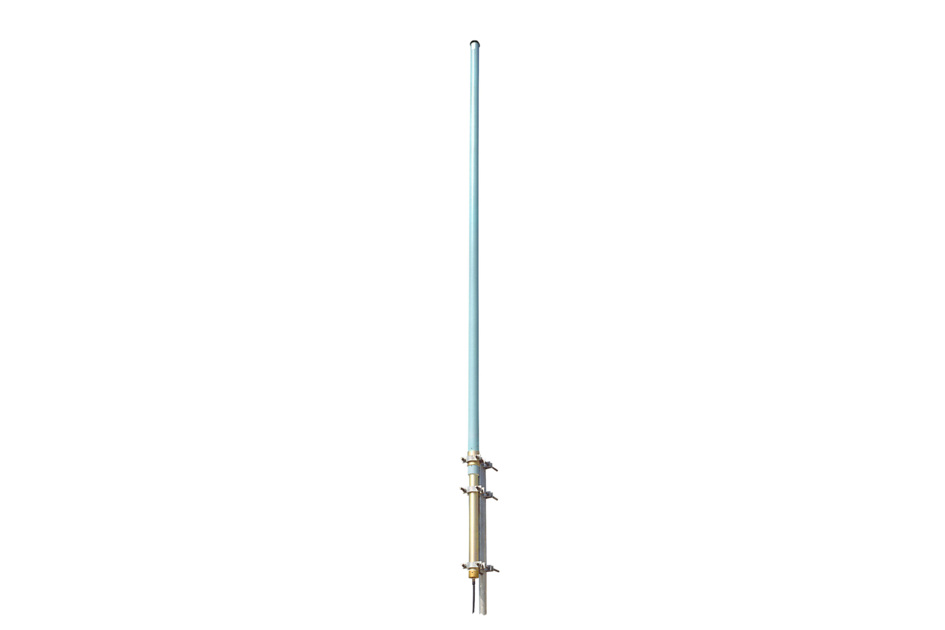

DB810E-PS
1-port omni antenna, 746–869 MHz, 360° HPBW, fixed electrical tilt
Features and benefits
- Omnidirectional antenna
- Rugged, durable design, heavy duty radome for minimum tip deflection
- Invert mountable
Specifications
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 4483 mm | 176.496 in |
| Net Weight, without mounting kit | 17 kg | 37.479 lb |
| Outer Diameter | 76 mm | 2.992 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 746 – 869 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 746–869 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 6 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 5th Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 500 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 444.8 N @ 100 mph (100.0 lbf @ 100 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 1 |
Dimensions
| Length | 4483 mm | 176.496 in |
| Net Weight, without mounting kit | 17 kg | 37.479 lb |
| Outer Diameter | 76 mm | 2.992 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 746 – 869 MHz |
| Polarization | Vertical |
Electrical specifications
| Frequency Band, MHz | 746–869 |
| Gain, dBi | 12.1 |
| Beamwidth, Horizontal, degrees | 360 |
| Beamwidth, Vertical, degrees | 6 |
| Beam Tilt, degrees | 0 |
| VSWR | Return loss, dB | 1.5 | 14.0 |
| PIM, 5th Order, 2 x 20 W, dBc | -150 |
| Input Power per Port, maximum, watts | 500 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 444.8 N @ 100 mph (100.0 lbf @ 100 mph) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
