EGRZV-65D-R5N43

10-port sector antenna, 2x 694-862, 2x 880-960, 2x 694-960, 2x 1427-2690 and 2x 1695-2690 MHz 65° HPBW, 5 x RET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Retractable tilt indicator rods
  • Antenna shape optimized for wind load reduction

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 6
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2769 mm | 109.016 in
Net Weight, without mounting kit 49.6 kg | 109.349 lb

Array layout

Click on image to enlarge.

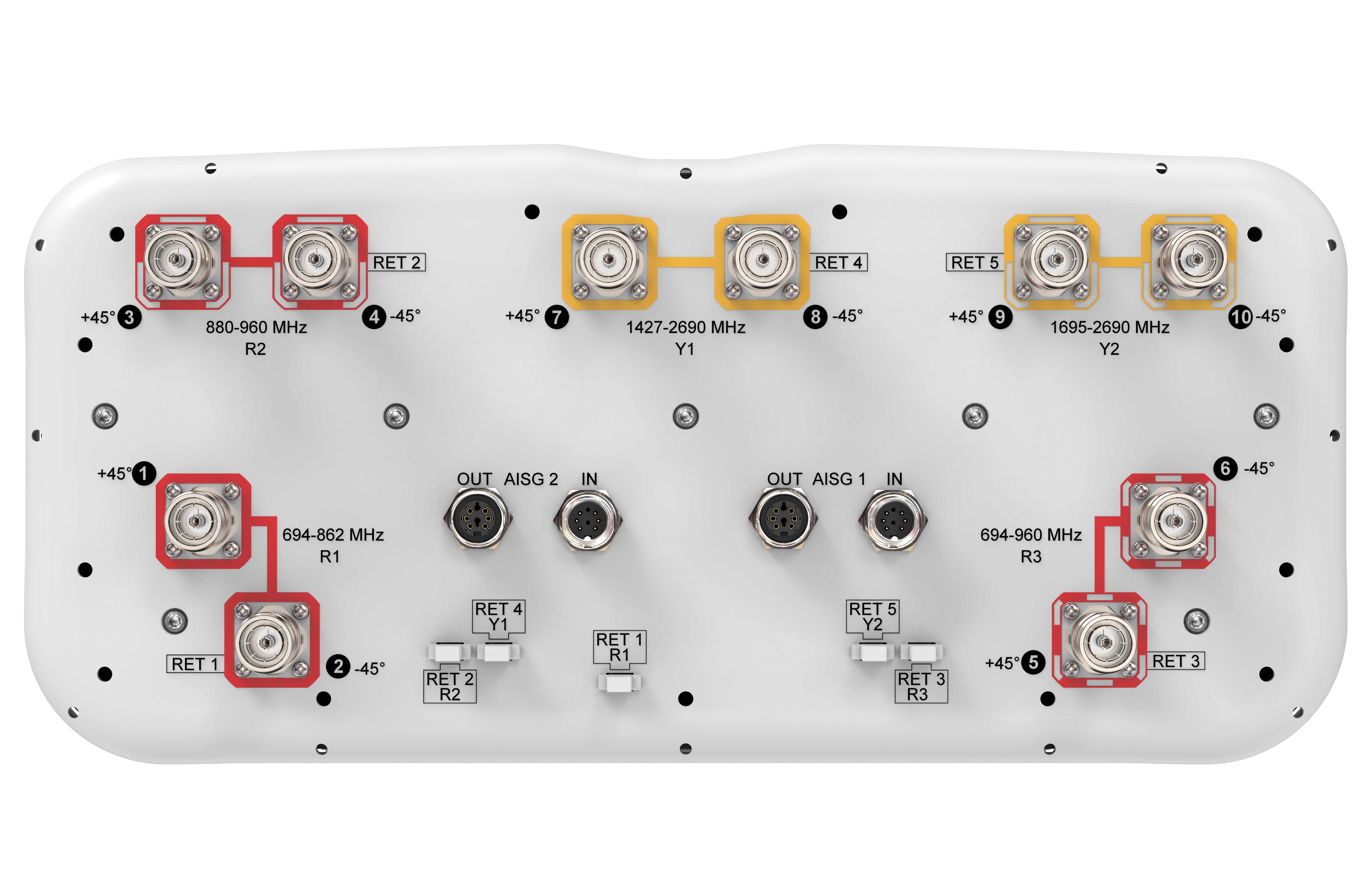

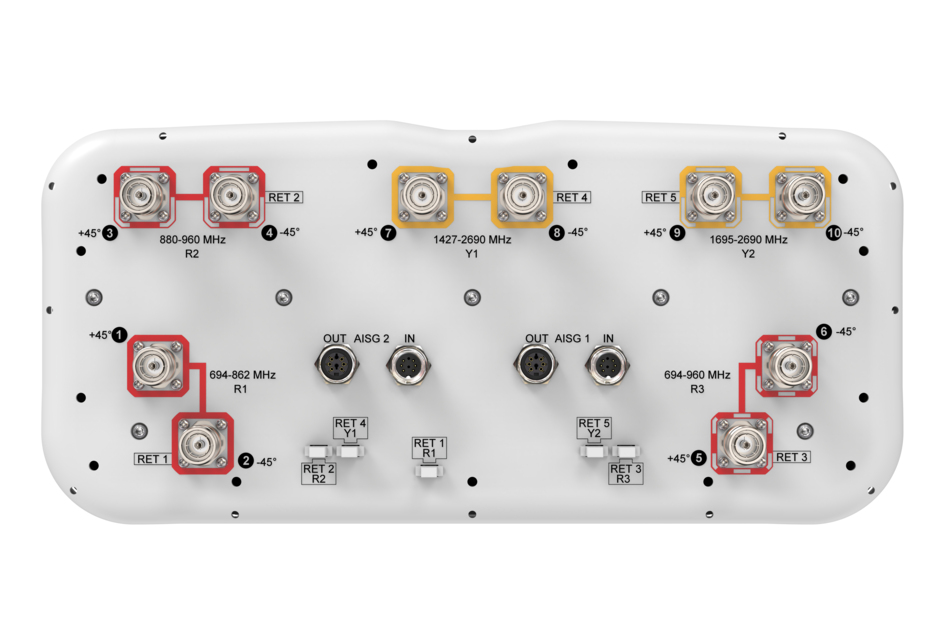

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–862 880–960 694–960 1427–1518 1695–2180 2300–2690 1695–2200 2300–2690
Gain, dBi 15.7 16.3 16.5 16.7 17.5 17.7 17.5 18.2
Beamwidth, Horizontal, degrees 59 55 58 55 59 66 58 56
Beamwidth, Vertical, degrees 7.3 6.3 6.9 7.1 5.7 4.4 6.1 5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 15 23 20 19 17 17
Front-to-Back Ratio at 180°, dB 32 31 31 39 29 30 30 32
CPR at Boresight, dB 22 24 23 21 16 15 15 17
Isolation, Cross Polarization, dB 27 27 27 26 26 26 27 27
Isolation, Inter-band, dB 27 27 27 27 27 27 27 27
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 150 200 150

Mechanical specifications

Wind Loading @ Velocity, frontal 680.0 N @ 150 km/h (152.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 347.0 N @ 150 km/h (78.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,020.0 N @ 150 km/h (229.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 434.0 N @ 150 km/h (97.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 530 mm | 20.866 in
Depth, packed 356 mm | 14.016 in
Length, packed 2897 mm | 114.055 in
Weight, gross 69.2 kg | 152.560 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 6
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (3)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 430 mm | 16.929 in
Depth 197 mm | 7.756 in
Length 2769 mm | 109.016 in
Net Weight, without mounting kit 49.6 kg | 109.349 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 862 MHz | 694 – 960 MHz | 880 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 694–862 880–960 694–960 1427–1518 1695–2180 2300–2690 1695–2200 2300–2690
Gain, dBi 15.7 16.3 16.5 16.7 17.5 17.7 17.5 18.2
Beamwidth, Horizontal, degrees 59 55 58 55 59 66 58 56
Beamwidth, Vertical, degrees 7.3 6.3 6.9 7.1 5.7 4.4 6.1 5
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 16 17 15 23 20 19 17 17
Front-to-Back Ratio at 180°, dB 32 31 31 39 29 30 30 32
CPR at Boresight, dB 22 24 23 21 16 15 15 17
Isolation, Cross Polarization, dB 27 27 27 26 26 26 27 27
Isolation, Inter-band, dB 27 27 27 27 27 27 27 27
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 250 200 200 150 200 150

Mechanical specifications

Wind Loading @ Velocity, frontal 680.0 N @ 150 km/h (152.9 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 347.0 N @ 150 km/h (78.0 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,020.0 N @ 150 km/h (229.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 434.0 N @ 150 km/h (97.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 530 mm | 20.866 in
Depth, packed 356 mm | 14.016 in
Length, packed 2897 mm | 114.055 in
Weight, gross 69.2 kg | 152.560 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
