FFVV-65C-R2N23
8-port sector antenna, 4x 617-894 and 4x 1695–2690 MHz, 65° HPBW, 2x RET
Features and benefits
- Meets -153dBc 3rd order PIM for 617-894MHz &1695-2690MHz, using 2x40W carriers
- Equivalent performance designed into a narrower antenna platform
- Improved aerodynamic design allows for reduced wind load
- Reduced weight platform allows for decreased tower loading
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 579 mm | 22.795 in |
| Depth | 212 mm | 8.346 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, antenna only | 47 kg | 103.617 lb |

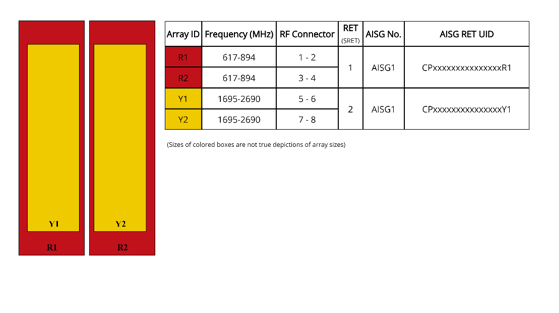

Array layout
| Click on image to enlarge. |

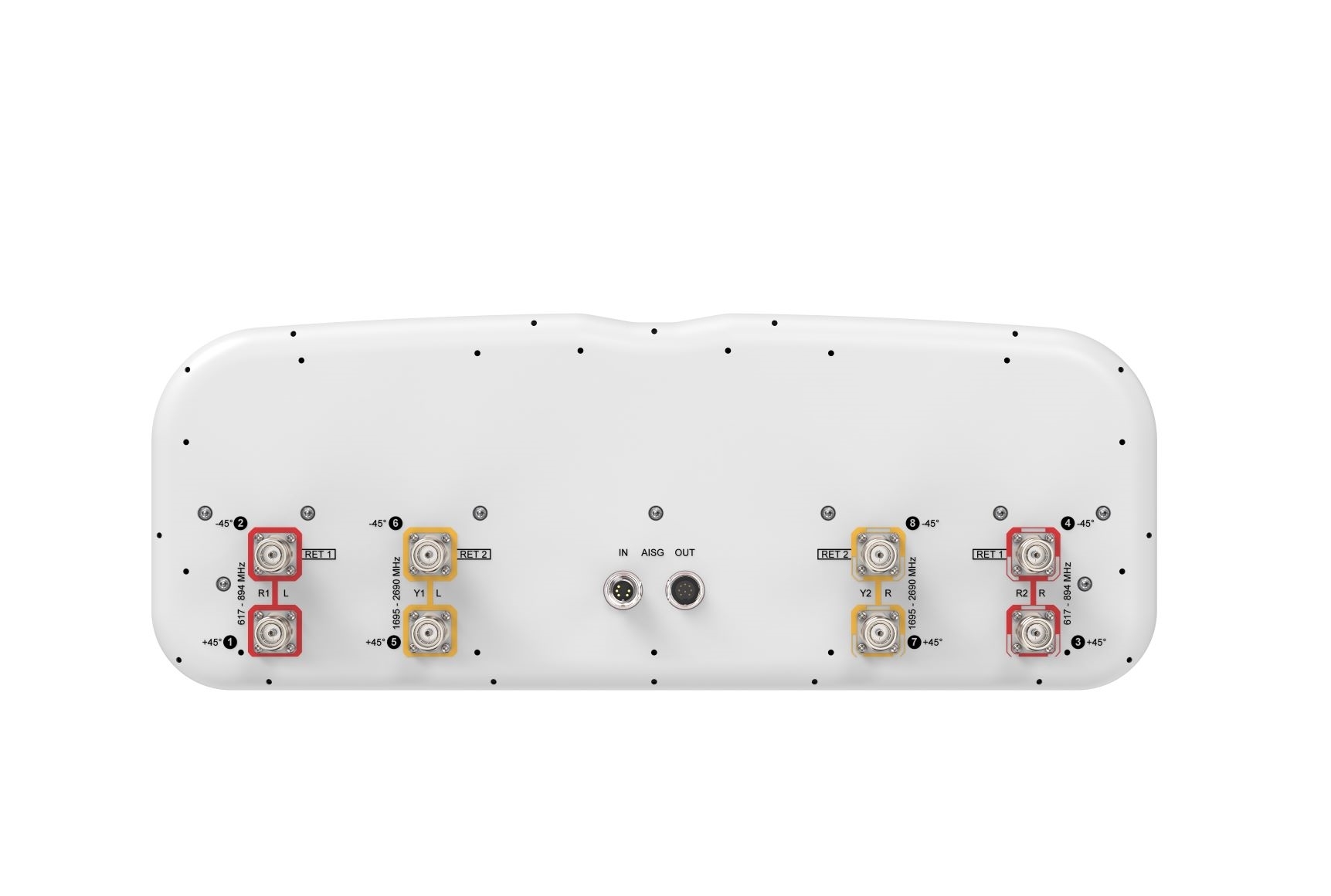

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 15.7 | 16.5 | 18.0 | 18.2 | 18.6 | 19.1 | 19.6 |
| Beamwidth, Horizontal, degrees | 70 | 62 | 65 | 63 | 63 | 63 | 52 |
| Beamwidth, Vertical, degrees | 10.4 | 8.9 | 5.5 | 5.3 | 5.1 | 4.4 | 4.1 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 17 | 18 | 17 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 32 | 31 | 36 | 39 | 37 | 32 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 21 | 22 | 30 | 31 | 30 | 27 | 27 |
| CPR at Boresight, dB | 22 | 20 | 20 | 20 | 23 | 22 | 20 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 40 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 683.0 N @ 150 km/h (153.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 280.0 N @ 150 km/h (62.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,090.0 N @ 150 km/h (245.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 682 mm | 26.850 in |
| Depth, packed | 319 mm | 12.559 in |
| Length, packed | 2562 mm | 100.866 in |
| Weight, gross | 68.5 kg | 151.016 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 4 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (1) | Mid band (1) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 579 mm | 22.795 in |
| Depth | 212 mm | 8.346 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, antenna only | 47 kg | 103.617 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 617 – 894 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 617–698 | 698–894 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2500 | 2500–2690 |
| RF Port | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 5-8 | 5-8 |
| Gain, dBi | 15.7 | 16.5 | 18.0 | 18.2 | 18.6 | 19.1 | 19.6 |
| Beamwidth, Horizontal, degrees | 70 | 62 | 65 | 63 | 63 | 63 | 52 |
| Beamwidth, Vertical, degrees | 10.4 | 8.9 | 5.5 | 5.3 | 5.1 | 4.4 | 4.1 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 17 | 18 | 17 | 17 | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 32 | 31 | 36 | 39 | 37 | 32 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 21 | 22 | 30 | 31 | 30 | 27 | 27 |
| CPR at Boresight, dB | 22 | 20 | 20 | 20 | 23 | 22 | 20 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 40 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 683.0 N @ 150 km/h (153.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 280.0 N @ 150 km/h (62.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,090.0 N @ 150 km/h (245.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 692.0 N @ 150 km/h (155.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 682 mm | 26.850 in |
| Depth, packed | 319 mm | 12.559 in |
| Length, packed | 2562 mm | 100.866 in |
| Weight, gross | 68.5 kg | 151.016 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
