HBXX-3817TB1-VTM | HBXX-3817TB1-A2M
4-port multibeam antenna, 4x 1710–2180 MHz, 2x 38° HPBW, RET compatible
Features and benefits
- Enhances network capacity through six sectors site application with only three antenna faces
- Single panel design supporting two separate beams perfectly optimized at horizontal pointing angles of +27 degrees and –27 degrees from boresight
- Maximizes frequency spectrum utilization to increase Average Revenue Per User (ARPU)
- Reduces antenna count to minimize Cap-Ex and Op-Ex costs
- High gain with excellent sector edge roll-off and azimuth sidelobe suppression
- Each antenna downtilt can be independently adjusted for greater flexibility in network optimization
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |

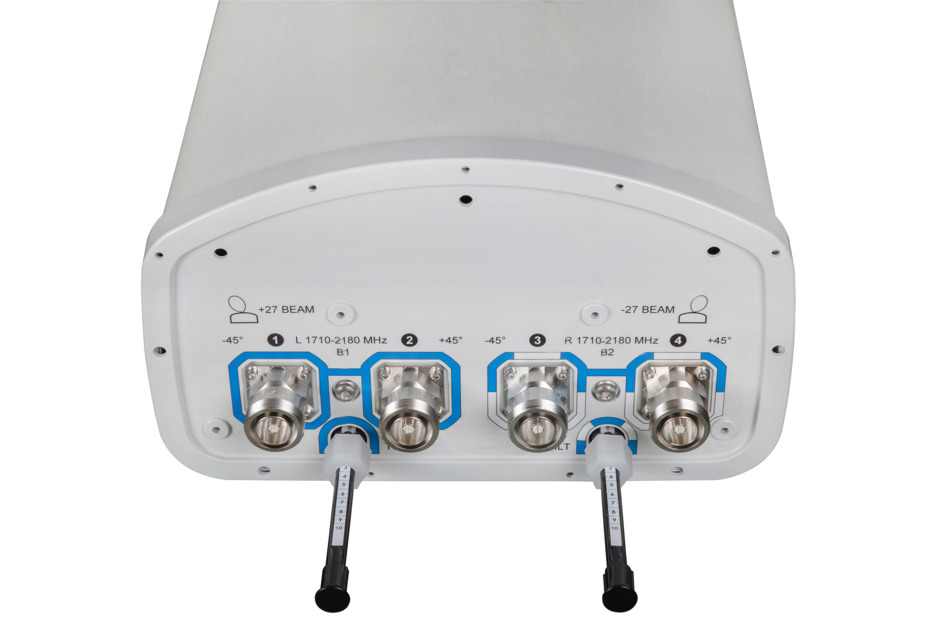

| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-3817TB1-A2M |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 13.6 kg | 29.983 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 19.3 | 19.6 | 19.9 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 34 |
| Beamwidth, Vertical, degrees | 7.6 | 7.1 | 6.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| Horizontal Sidelobe, dB | 24 | 24 | 22 |
| USLS (First Lobe), dB | 23 | 23 | 23 |
| Gain Roll-off at Boresight, dB | 10 | 9 | 9 |
| Gain Roll-off at Boresight Tolerance, dB | ±0.7 | ±0.8 | ±0.9 |
| Front-to-Back Ratio at 180°, dB | 33 | 34 | 35 |
| CPR at Boresight, dB | 24 | 24 | 18 |
| Isolation, Cross Polarization, port to port, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.43 | 15.0 | 1.43 | 15.0 | 1.43 | 15.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 202.0 N @ 150 km/h (45.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 166.0 N @ 150 km/h (37.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 388.0 N @ 150 km/h (87.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 404 mm | 15.906 in |
| Depth, packed | 310 mm | 12.205 in |
| Length, packed | 1598 mm | 62.913 in |
| Weight, gross | 25 kg | 55.115 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Multibeam |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | HBXX-3817TB1-A2M |
Dimensions
| Width | 301 mm | 11.85 in |
| Depth | 181 mm | 7.126 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 13.6 kg | 29.983 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1710 – 2180 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 1710–1880 | 1850–1990 | 1920–2180 |
| Gain, dBi | 19.3 | 19.6 | 19.9 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 |
| Beamwidth, Horizontal, degrees | 38 | 36 | 34 |
| Beamwidth, Vertical, degrees | 7.6 | 7.1 | 6.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| Horizontal Sidelobe, dB | 24 | 24 | 22 |
| USLS (First Lobe), dB | 23 | 23 | 23 |
| Gain Roll-off at Boresight, dB | 10 | 9 | 9 |
| Gain Roll-off at Boresight Tolerance, dB | ±0.7 | ±0.8 | ±0.9 |
| Front-to-Back Ratio at 180°, dB | 33 | 34 | 35 |
| CPR at Boresight, dB | 24 | 24 | 18 |
| Isolation, Cross Polarization, port to port, dB | 30 | 30 | 30 |
| VSWR | Return loss, dB | 1.43 | 15.0 | 1.43 | 15.0 | 1.43 | 15.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 202.0 N @ 150 km/h (45.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 166.0 N @ 150 km/h (37.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 388.0 N @ 150 km/h (87.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 205.0 N @ 150 km/h (46.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 404 mm | 15.906 in |
| Depth, packed | 310 mm | 12.205 in |
| Length, packed | 1598 mm | 62.913 in |
| Weight, gross | 25 kg | 55.115 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
