HHTTV-65A-R3

10-Port Antenna, 4x 1695–2200 (HB1), 4x 2490-2690 (HB2) and 2x 1695-2690 (HB3) MHz, 65° horizontal beamwidth, 3x Internal RET

Finish making your selections or clear them to view relevant specifications.

Features and benefits

Provides a future-ready antenna solution with flexibility to reassign antenna, for example GSM 1800 service to 2.6GHz LTE at a later date
One RET for H-bands, one RET for T-bands, one RET for V-band
Excellent for 4x MIMO applications and maximizing capacity
Employs state-of-the-art ultra wideband technology providing excellent RF performance in all bands

Specifications

General specifications

Antenna Type	Sector
Band	Single band
Color	Light Gray (RAL 7035)
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	Fiberglass, UV resistant
Radiator Material	Low loss circuit board

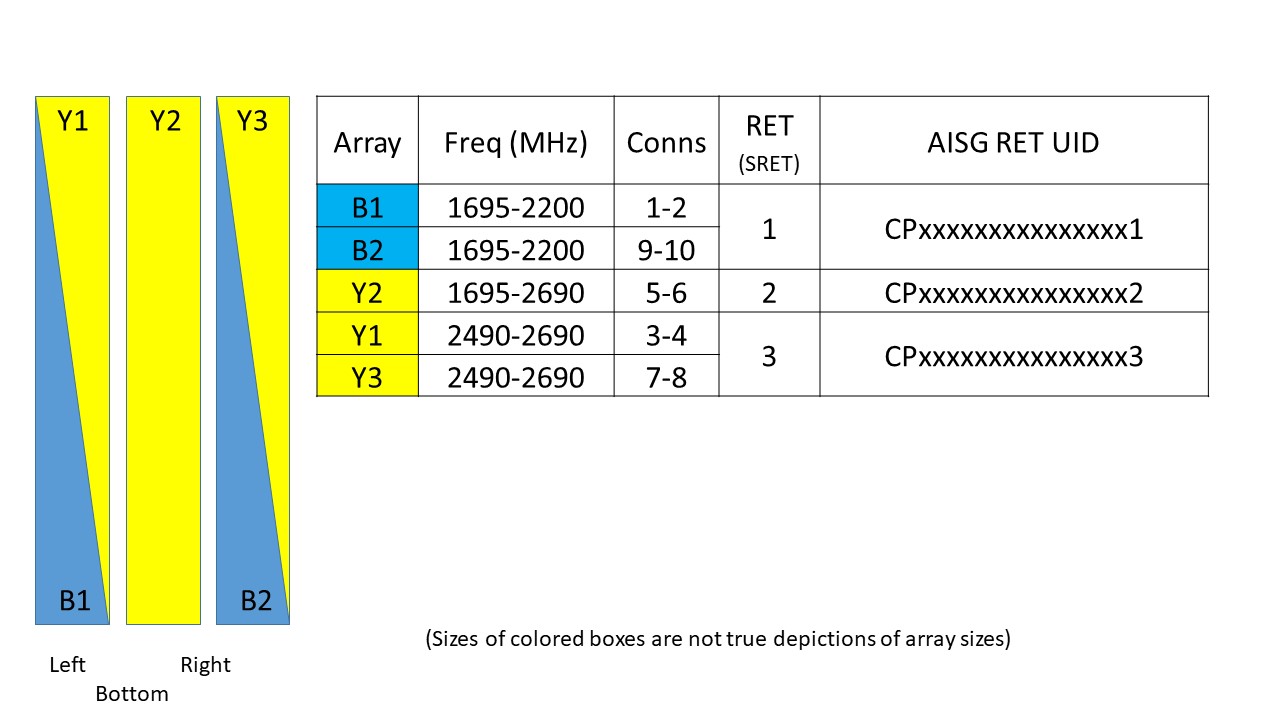

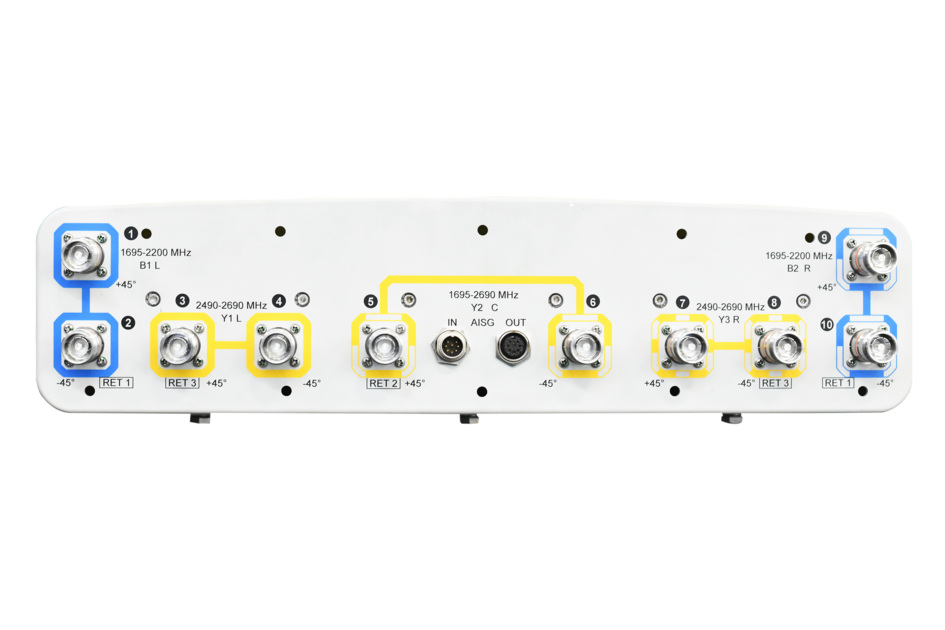

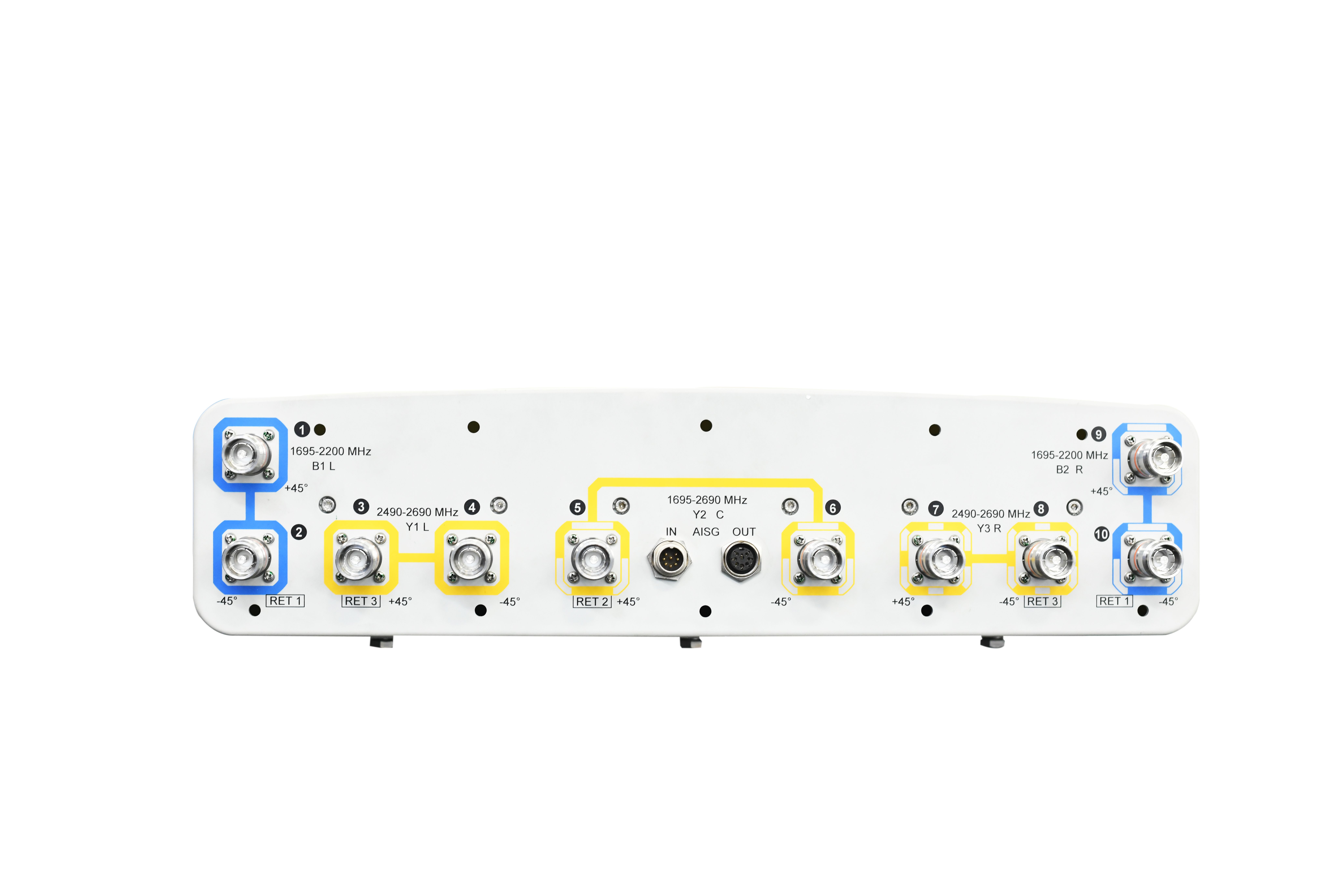

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	10
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	0
RF Connector Quantity, total	10

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	1 female \| 1 male
Internal RET	High band (3)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	10 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	504 mm \| 19.843 in
Depth	118 mm \| 4.646 in
Length	1322 mm \| 52.047 in
Net Weight, without mounting kit	21 kg \| 46.297 lb

Click on image to enlarge.

Click on image to enlarge.

	HB1	HB1	HB2	HB3	HB3	HB3
Frequency Band, MHz	1695–1880	1920–2200	2490–2690	1695–1920	1920–2180	2490–2690
Gain, dBi	16.7	17.2	17.2	17.2	17.7	17.5
Beamwidth, Horizontal, degrees	63	63	58	62	65	60
Beamwidth, Vertical, degrees	7.5	6.6	5.5	7.4	6.5	5.3
Beam Tilt, degrees	2–12	2–12	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	19	20	21	17	17	19
Front-to-Back Ratio at 180°, dB	30	30	33	33	32	33
CPR at Boresight, dB	22	21	19	21	22	19
Isolation, Cross Polarization, dB	28	28	28	28	28	28
Isolation, Inter-band, dB	28	28	28	28	28	28
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	250	300	300	250

Mechanical Tilt Range	0°–19°
Wind Loading @ Velocity, frontal	855.0 N @ 150 km/h (192.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	141.0 N @ 150 km/h (31.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	872.0 N @ 150 km/h (196.0 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
