JAH4-65C-R4

12-port sector antenna, 2x 698–803, 2x 824-894 and 8x 1695–2360 MHz, 65° HPBW, 4x RETs and low bands have diplexers.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Internal filter on low band and interleaved dipole technology providing for attractive, low wind load mechanical package
  • One RET for 700MHz, one RET for 850MHz, and one RET for each side-by-side pair of high bands to ensure same tilt level for 4x Rx or 4x MIMO
  • The antenna is supplied with mounting kits that provide 0 degree of mechanical downtilt; optional downtilt mounting kits are available

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 12

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (2)
Power Consumption, idle state, maximum 1 W
Power Consumption, normal conditions, maximum 8 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2438 mm | 95.984 in
Net Weight, without mounting kit 37.9 kg | 83.555 lb

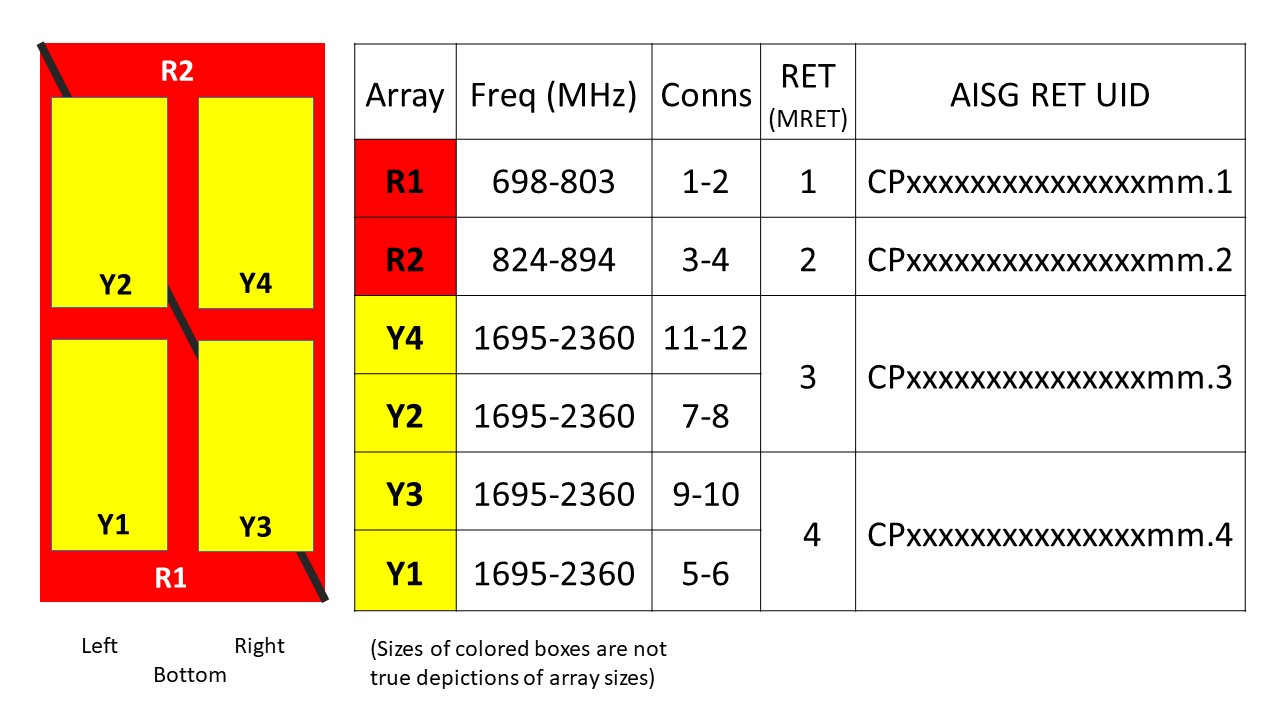

Array layout

Click on image to enlarge.

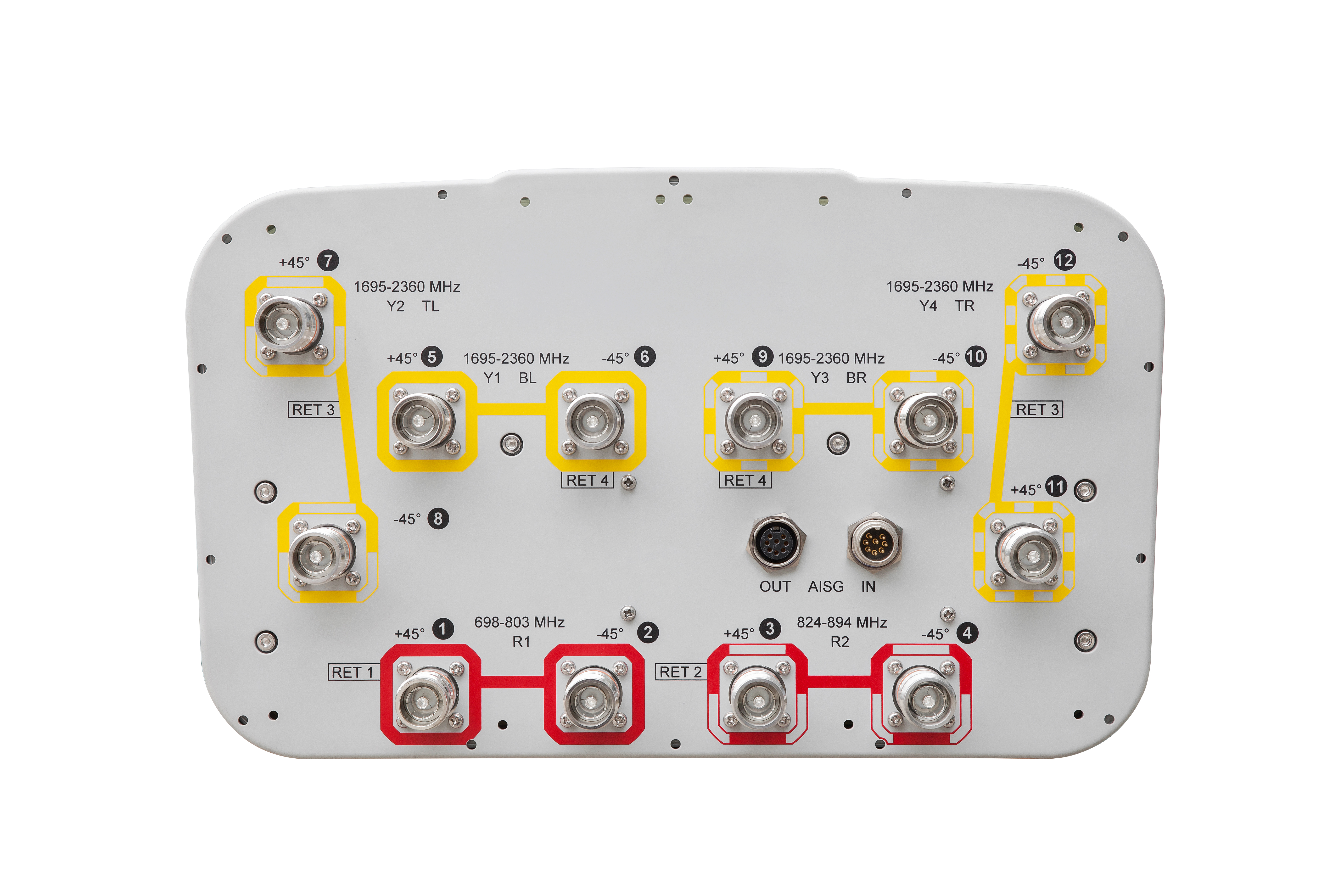

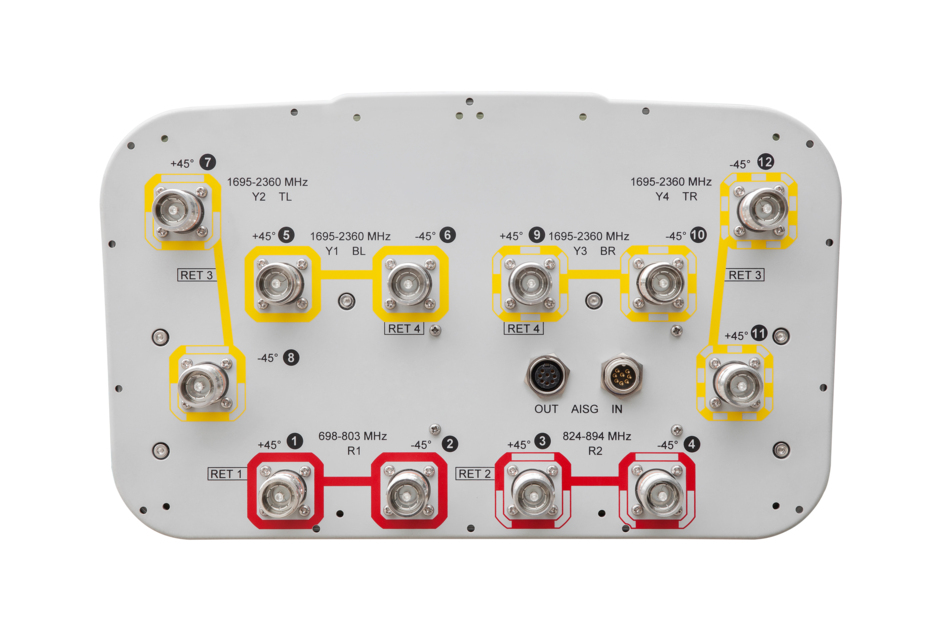

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 803 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°
Total Input Power, maximum 900 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–803 824–894 1695–1880 1850–1990 1920–2180 2300–2360
Gain, dBi 15.9 16.3 16.8 17.2 17.4 18.0
Beamwidth, Horizontal, degrees 67 65 63 62 62 63
Beamwidth, Vertical, degrees 9.6 8.5 8 7.4 6.9 6.2
Beam Tilt, degrees 0–11 0–11 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 16 19 18 18 18
Front-to-Back Ratio at 180°, dB 32 36 31 35 36 37
CPR at Boresight, dB 21 22 17 18 20 21
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 200

Mechanical specifications

Effective Projective Area (EPA), frontal 0.4 m² | 4.306 ft²
Effective Projective Area (EPA), lateral 0.34 m² | 3.66 ft²
Mechanical Tilt Range 0°–12°
Wind Loading @ Velocity, frontal 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 900.0 N @ 150 km/h (202.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2585 mm | 101.772 in
Weight, gross 50.2 kg | 110.672 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
