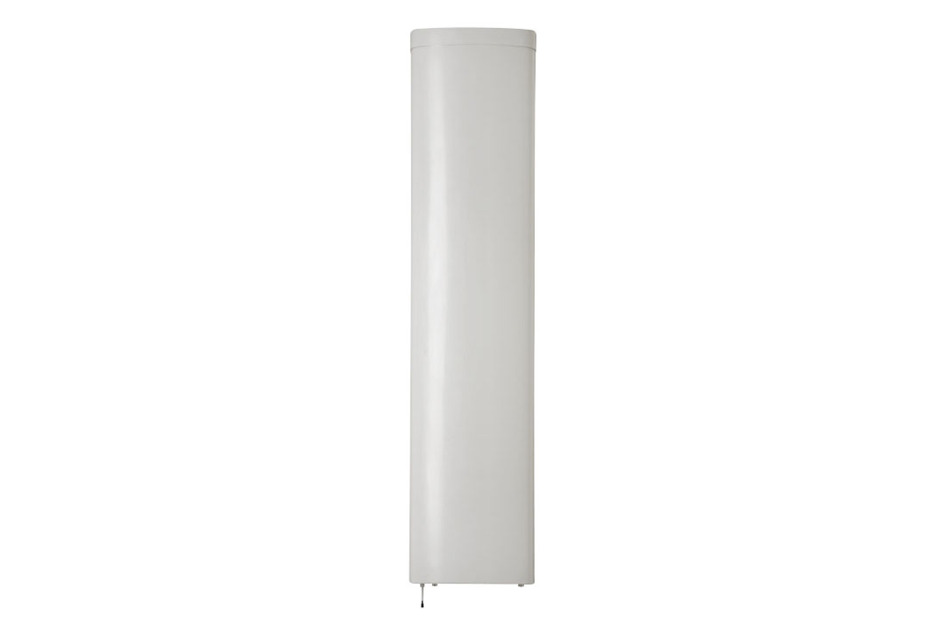

LDX-3319DS-VTM | LDX-3319DS-A1M
2-port sector antenna, 2x 790–960 MHz, 33° HPBW, RET compatible
Features and benefits
- Narrow horizontal beamwidth ideal for corridor coverage or six sector solutions
- Azimuth sidelobe suppression greater than 18 dB
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | LDX-3319DS-A1M |
Dimensions
| Width | 591 mm | 23.268 in |
| Depth | 182 mm | 7.165 in |
| Length | 2581 mm | 101.614 in |
| Net Weight, without mounting kit | 29 kg | 63.934 lb |

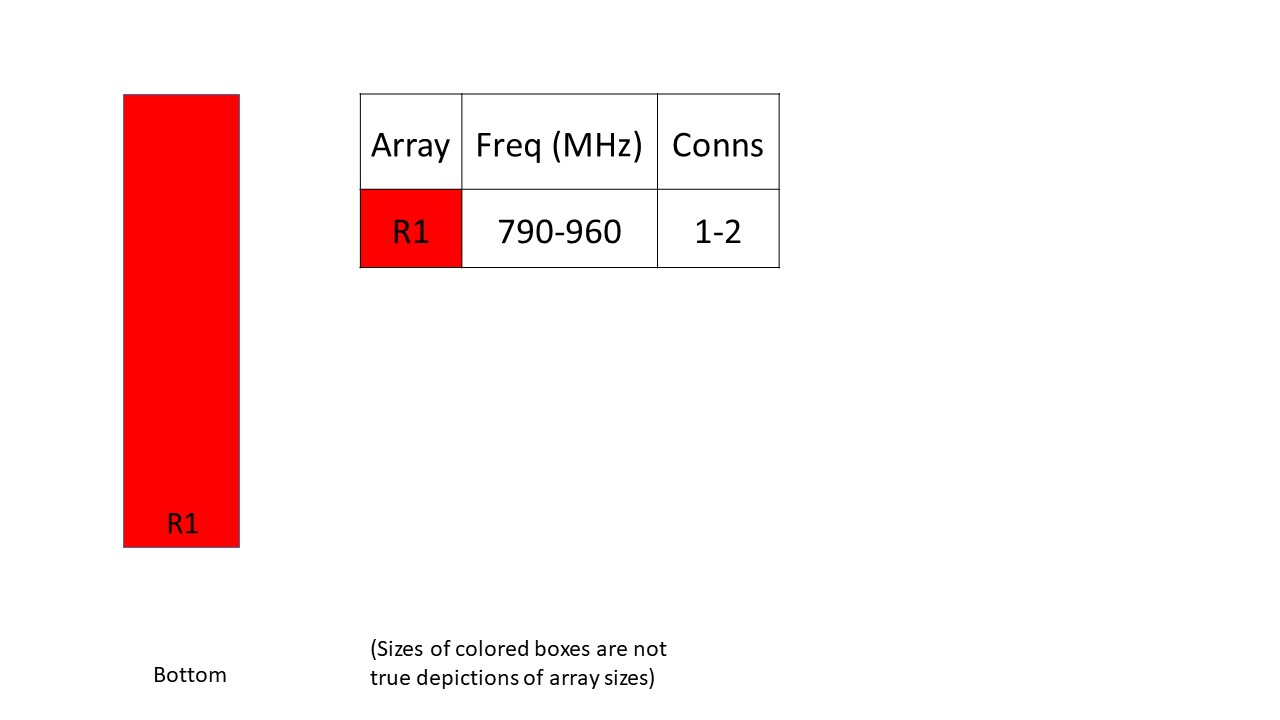

Array layout
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–806 | 806–896 | 870–960 |
| Gain, dBi | 19.4 | 19.8 | 20.5 |
| Beamwidth, Horizontal, degrees | 35 | 35 | 34 |
| Beamwidth, Vertical, degrees | 7.9 | 7.5 | 7.1 |
| Beam Tilt, degrees | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 14 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 31 | 33 | 35 |
| CPR at Boresight, dB | 20 | 17 | 15 |
| Isolation, Cross Polarization, dB | 27 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,149.0 N @ 150 km/h (258.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 230.0 N @ 150 km/h (51.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,129.0 N @ 150 km/h (478.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 782 mm | 30.787 in |
| Depth, packed | 346 mm | 13.622 in |
| Length, packed | 3020 mm | 118.898 in |
| Weight, gross | 50.5 kg | 111.333 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 2 |
Remote electrical tilt (ret) information
| Model with Factory Installed AISG 2.0 Actuator | LDX-3319DS-A1M |
Dimensions
| Width | 591 mm | 23.268 in |
| Depth | 182 mm | 7.165 in |
| Length | 2581 mm | 101.614 in |
| Net Weight, without mounting kit | 29 kg | 63.934 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 790 – 960 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 790–806 | 806–896 | 870–960 |
| Gain, dBi | 19.4 | 19.8 | 20.5 |
| Beamwidth, Horizontal, degrees | 35 | 35 | 34 |
| Beamwidth, Vertical, degrees | 7.9 | 7.5 | 7.1 |
| Beam Tilt, degrees | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 14 | 15 | 14 |
| Front-to-Back Ratio at 180°, dB | 31 | 33 | 35 |
| CPR at Boresight, dB | 20 | 17 | 15 |
| Isolation, Cross Polarization, dB | 27 | 30 | 30 |
| VSWR | Return loss, dB | 1.4 | 15.6 | 1.4 | 15.6 | 1.4 | 15.6 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 1,149.0 N @ 150 km/h (258.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 230.0 N @ 150 km/h (51.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,129.0 N @ 150 km/h (478.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 782 mm | 30.787 in |
| Depth, packed | 346 mm | 13.622 in |
| Length, packed | 3020 mm | 118.898 in |
| Weight, gross | 50.5 kg | 111.333 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
