NHHS4-65C-R3B

14 Port Sector Antenna, 2x698-896 MHz, 4x1695-2200 MHz 65 deg HPBW, and 8x3700-4000 MHz Beamformer, 3XRET

Finish making your selections or clear them to view relevant specifications.
Find a partner

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal Bias Tee Cal Port | Port 1 | Port 3
Internal RET High band (1) | Low band (1) | Mid band (1)
Protocol 3GPP/AISG 2.0

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 2438 mm | 95.984 in
Net Weight, antenna only 32.7 kg | 72.091 lb

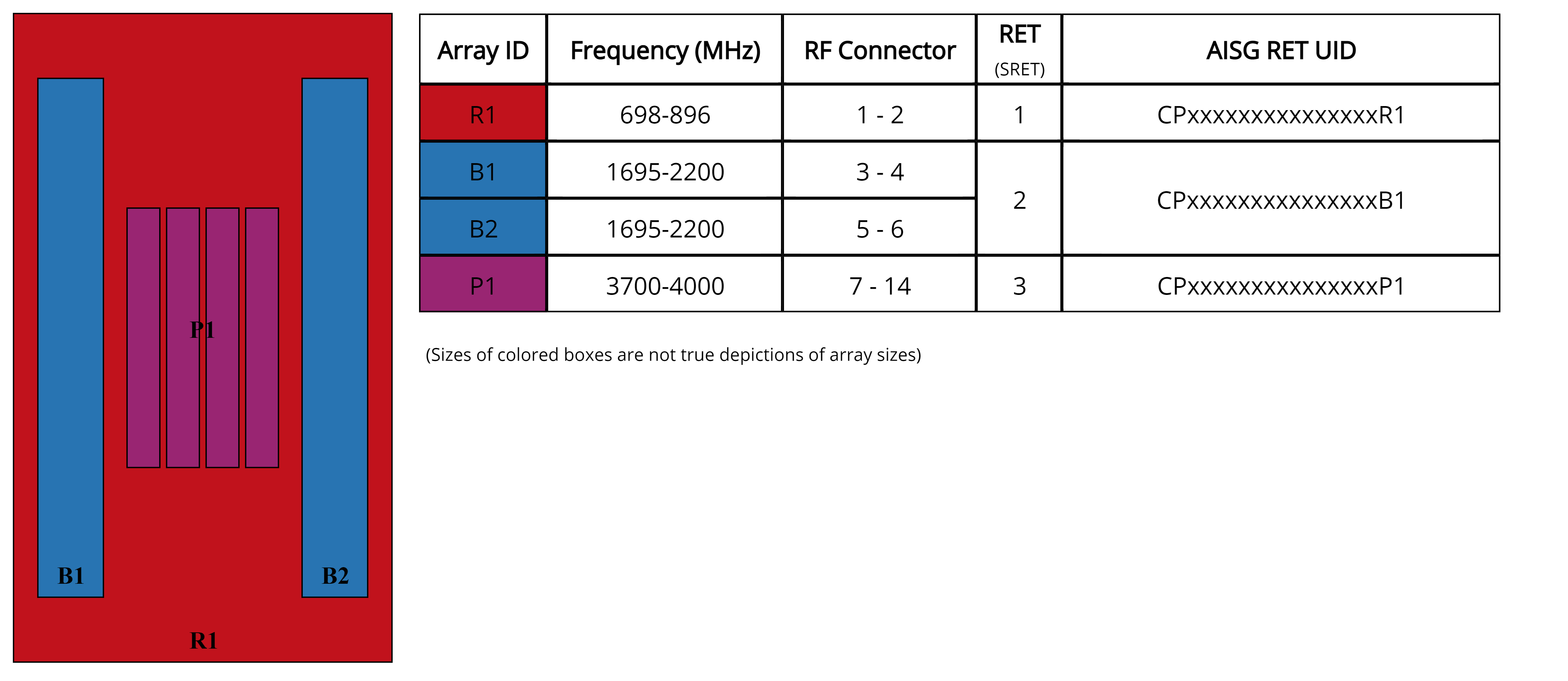

Array layout

Click on image to enlarge.

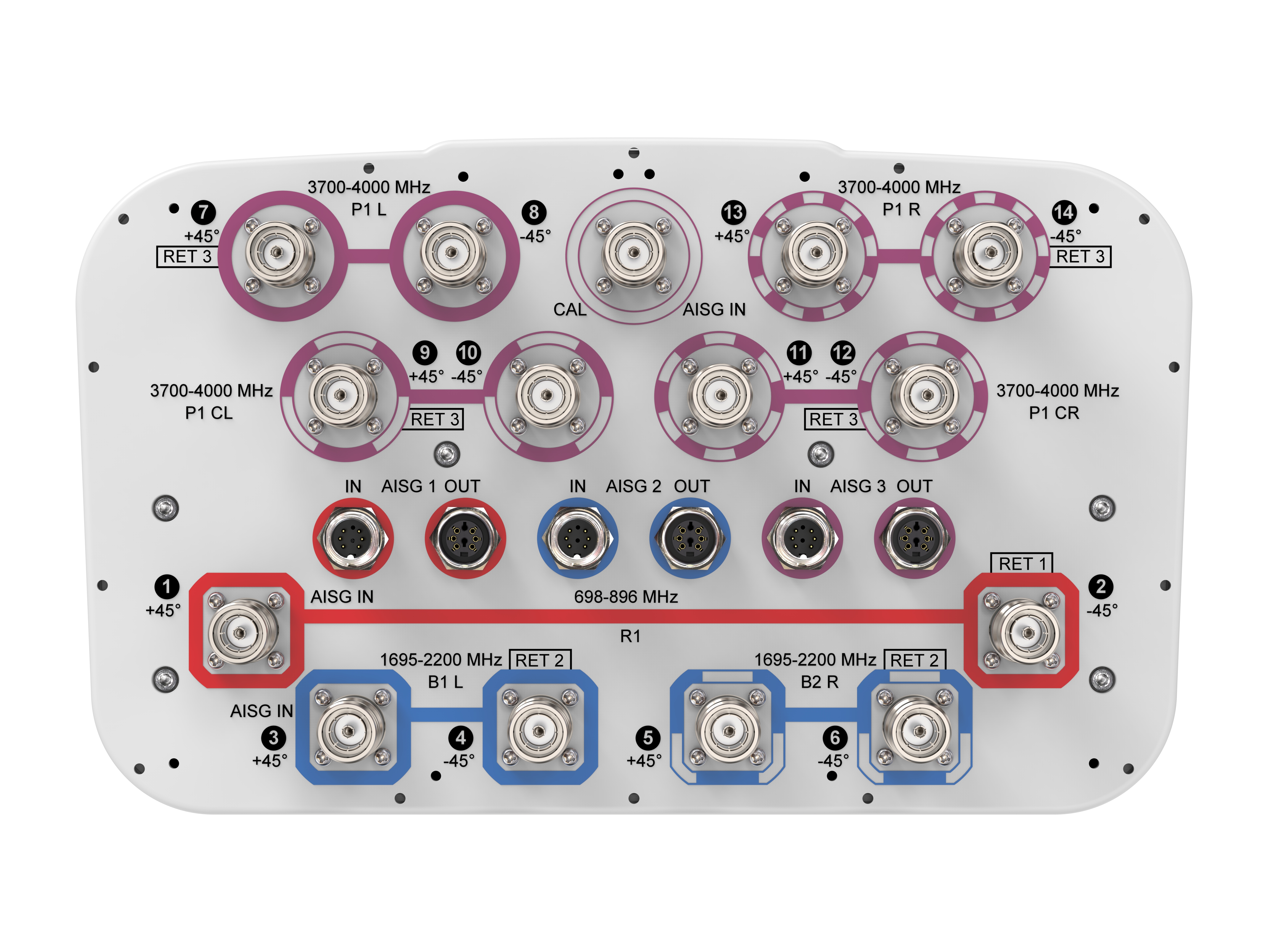

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3700 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

R1 R1 B1,B2 B1,B2 B1,B2 P1
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
RF Port 1-2 1-2 3-6 3-6 3-6 7-14
Gain, dBi 16.0 16.0 17.8 18.2 18.2 16.3
Beamwidth, Horizontal, degrees 65 63 62 61 65 79
Beamwidth, Vertical, degrees 9.6 8.6 5.5 5.2 5 5.7
Beam Tilt, degrees 0–11 0–11 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 20 19 19 22 24 13
Front-to-Back Ratio at 180°, dB 39 31 33 37 37 31
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7
CPR at Boresight, dB 23 17 19 22 24 14
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
Isolation, Co-polarization, dB 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 17.1
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 5.7
Beamwidth, Vertical Tolerance, degrees ±0.3
USLS (First Lobe), dB 15

Electrical specifications, envelope pattern

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 20.8

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Steered 0° Gain, dBi 20.9
Steered 0° Gain Tolerance, dBi ±0.5
Steered 0° Beamwidth, Horizontal, degrees 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29
Steered 0° Horizontal Sidelobe, dB 13
Steered 30° Gain, dBi 19.8
Steered 30° Gain Tolerance, dBi ±0.8
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 28

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 19.2
Beamwidth, Horizontal, degrees 32
Front-to-Back Total Power at 180° ± 30°, dB 28
Horizontal Sidelobe, dB 16

Mechanical specifications

Wind Loading @ Velocity, frontal 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 899.0 N @ 150 km/h (202.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2585 mm | 101.772 in
Weight, gross 46.5 kg | 102.515 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector and beamforming
Band Multiband
Calibration Connector Interface 4.3-10 Female
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 3 female | 3 male
Input Voltage 10–30 Vdc
Internal Bias Tee Cal Port | Port 1 | Port 3
Internal RET High band (1) | Low band (1) | Mid band (1)
Protocol 3GPP/AISG 2.0

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 2438 mm | 95.984 in
Net Weight, antenna only 32.7 kg | 72.091 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 896 MHz | 1695 – 2200 MHz | 3700 – 4000 MHz
Polarization ±45°
Total Input Power, maximum 1,000 W @ 50 °C

Electrical specifications

R1 R1 B1,B2 B1,B2 B1,B2 P1
Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
RF Port 1-2 1-2 3-6 3-6 3-6 7-14
Gain, dBi 16.0 16.0 17.8 18.2 18.2 16.3
Beamwidth, Horizontal, degrees 65 63 62 61 65 79
Beamwidth, Vertical, degrees 9.6 8.6 5.5 5.2 5 5.7
Beam Tilt, degrees 0–11 0–11 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 20 19 19 22 24 13
Front-to-Back Ratio at 180°, dB 39 31 33 37 37 31
Coupling level, Amp, Antenna port to Cal port, dB 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7
CPR at Boresight, dB 23 17 19 22 24 14
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25
Isolation, Co-polarization, dB 19
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -145
Input Power per Port at 50°C, maximum, watts 300 300 250 250 250 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 17.1
Beamwidth, Horizontal, degrees 65
Beamwidth, Vertical, degrees 5.7
Beamwidth, Vertical Tolerance, degrees ±0.3
USLS (First Lobe), dB 15

Electrical specifications, envelope pattern

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 20.8

Electrical specifications, service beam

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Steered 0° Gain, dBi 20.9
Steered 0° Gain Tolerance, dBi ±0.5
Steered 0° Beamwidth, Horizontal, degrees 22
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29
Steered 0° Horizontal Sidelobe, dB 13
Steered 30° Gain, dBi 19.8
Steered 30° Gain Tolerance, dBi ±0.8
Steered 30° Beamwidth, Horizontal, degrees 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 28

Electrical specifications, soft split

Frequency Band, MHz 698–806 806–896 1695–1880 1850–1990 1920–2200 3700–4000
Gain, dBi 19.2
Beamwidth, Horizontal, degrees 32
Front-to-Back Total Power at 180° ± 30°, dB 28
Horizontal Sidelobe, dB 16

Mechanical specifications

Wind Loading @ Velocity, frontal 425.0 N @ 150 km/h (95.5 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 361.0 N @ 150 km/h (81.2 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 899.0 N @ 150 km/h (202.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 451.0 N @ 150 km/h (101.4 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 2585 mm | 101.772 in
Weight, gross 46.5 kg | 102.515 lb
