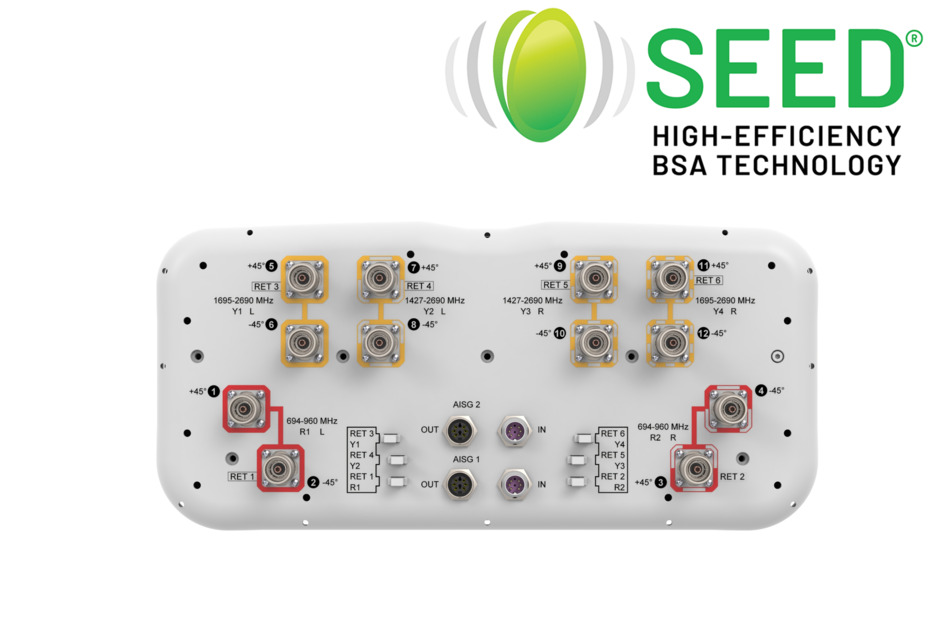

NNH4-45C-R6
12-port Next Generation PerforMax™ Superior Coverage and Capacity sector antenna, 4x 698-896 MHz and 8x 1695-2360 MHz, 45° HPBW, 8ft, 6X RET
Features and benefits
- Antenna optimized for higher gain with superior radiation efficiency
- Powered by Andrew's SEED® technology (Sustainable Energy Efficient Design)
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Best in class PIM immunity
- Superior patterns for enhanced interference mitigation resulting in improved SINR, higher throughput, and more capacity
Specifications
General specifications
| Antenna Type | Sector with internal RET |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 69.2 kg | 152.560 lb |

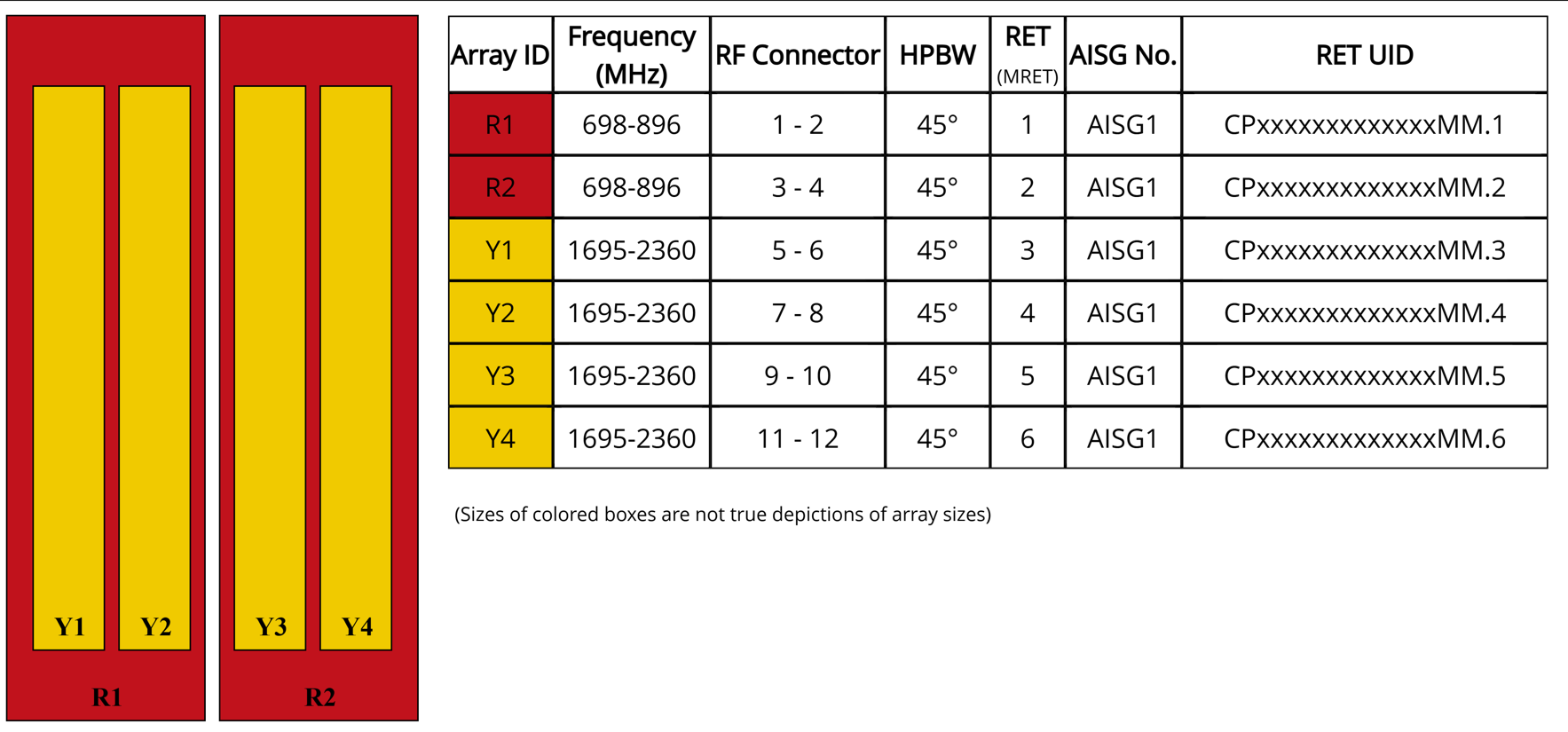

Array layout
| Click on image to enlarge. |

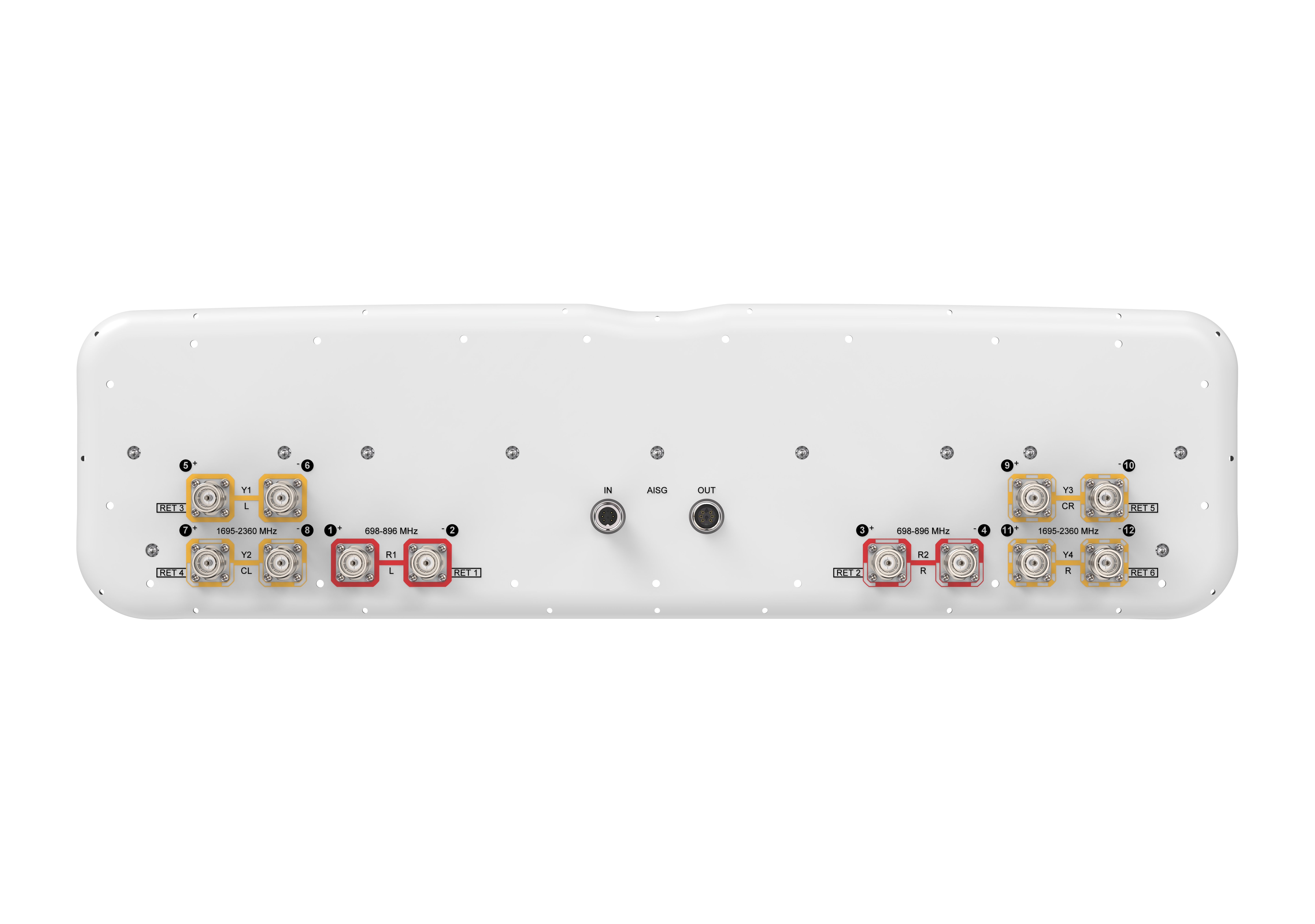

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,200 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, dBi | 17.2 | 17.9 | 19.8 | 20.3 | 20.8 | 21.2 |
| Beamwidth, Horizontal, degrees | 50 | 45 | 48 | 47 | 45 | 37 |
| Beamwidth, Vertical, degrees | 9.2 | 8.3 | 5.2 | 5 | 4.7 | 4.3 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–7 | 0–7 | 0–7 | 0–7 |
| USLS (First Lobe), dB | 18 | 17 | 18 | 18 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 32 | 34 | 39 | 40 | 37 | 37 |
| CPR at Boresight, dB | 18 | 18 | 15 | 17 | 17 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2688 mm | 105.827 in |
| Weight, gross | 93 kg | 205.030 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector with internal RET |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 12 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (4) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 749 mm | 29.488 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 69.2 kg | 152.560 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,200 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 |
| Gain, dBi | 17.2 | 17.9 | 19.8 | 20.3 | 20.8 | 21.2 |
| Beamwidth, Horizontal, degrees | 50 | 45 | 48 | 47 | 45 | 37 |
| Beamwidth, Vertical, degrees | 9.2 | 8.3 | 5.2 | 5 | 4.7 | 4.3 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–7 | 0–7 | 0–7 | 0–7 |
| USLS (First Lobe), dB | 18 | 17 | 18 | 18 | 17 | 19 |
| Front-to-Back Ratio at 180°, dB | 32 | 34 | 39 | 40 | 37 | 37 |
| CPR at Boresight, dB | 18 | 18 | 15 | 17 | 17 | 15 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 2,397.0 N @ 150 km/h (538.9 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 915 mm | 36.024 in |
| Depth, packed | 357 mm | 14.055 in |
| Length, packed | 2688 mm | 105.827 in |
| Weight, gross | 93 kg | 205.030 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
