RRH3-65A-R5VBU
10-port sector antenna, 4x 698–960 and 6x 1710–2170 MHz, 65°HPBW, 5x RET
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |

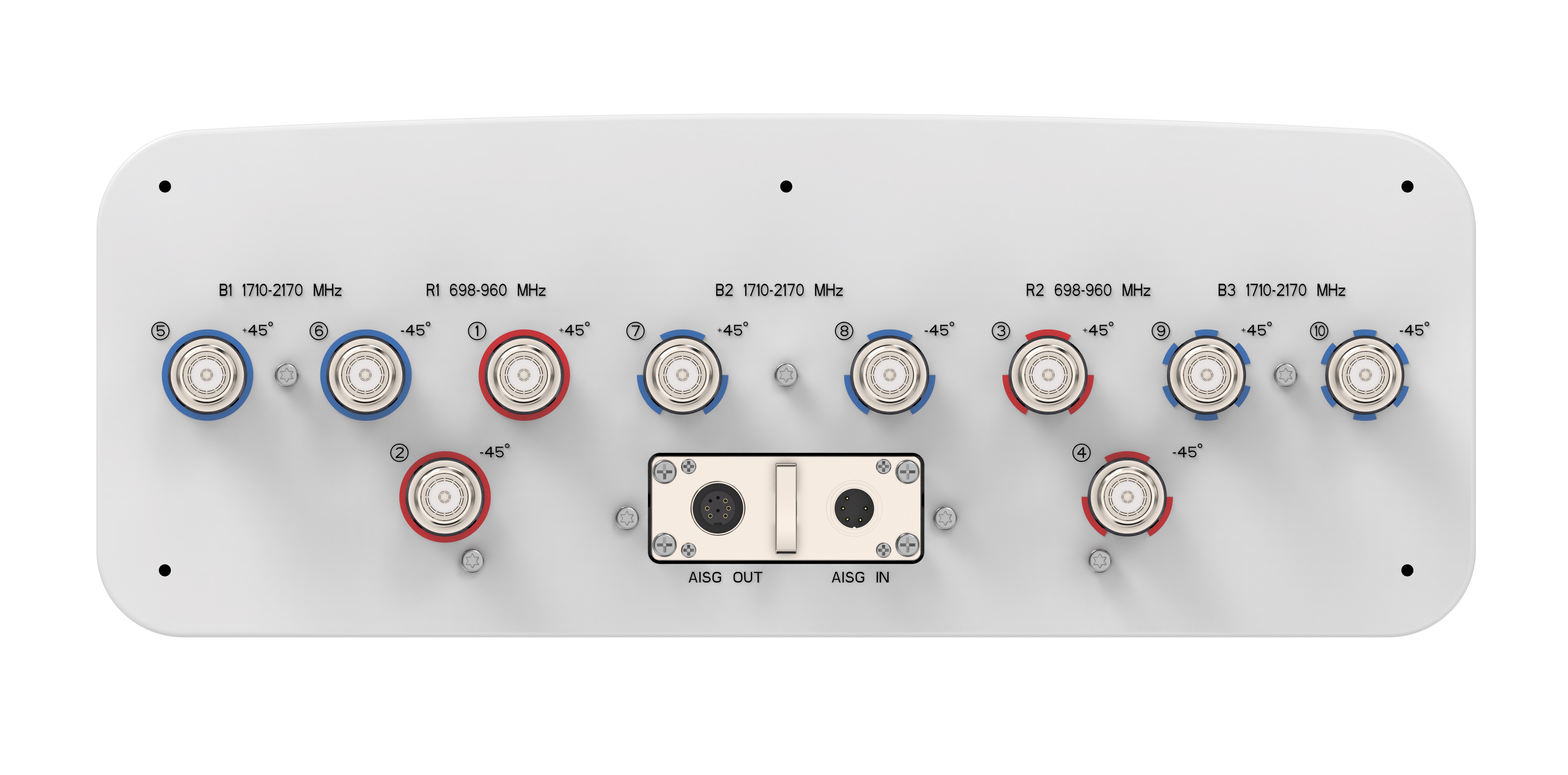

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 6 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 446 mm | 17.559 in |
| Depth | 165 mm | 6.496 in |
| Length | 1500 mm | 59.055 in |
| Net Weight, antenna only | 26 kg | 57.320 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2170 MHz |
| Polarization | ±45° |
Electrical specifications

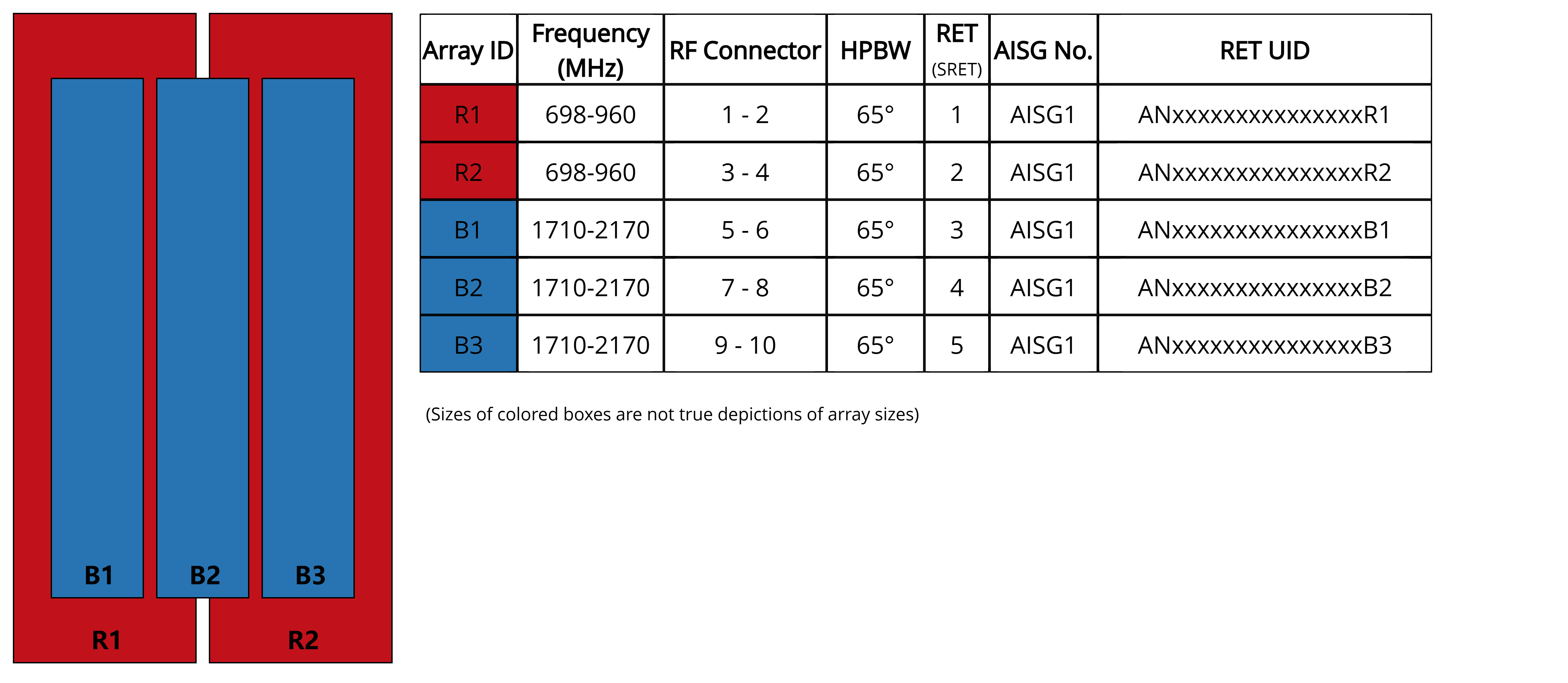

| R1,R2 | R1,R2 | R1,R2 | B1-B3 | B1-B3 | |
| Frequency Band, MHz | 698–803 | 790–890 | 890–960 | 1710–1880 | 1920–2170 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-10 | 5-10 |
| Gain, dBi | 14.0 | 14.4 | 14.8 | 15.1 | 15.6 |
| Beamwidth, Horizontal, degrees | 64 | 61 | 58 | 60 | 58 |
| Beamwidth, Vertical, degrees | 12.9 | 11.9 | 11 | 9.3 | 8.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 22 | 22 | 22 | 22 |
| CPR at Boresight, dB | 18 | 18 | 18 | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 537.0 N @ 150 km/h (120.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 198.0 N @ 150 km/h (44.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 499.0 N @ 150 km/h (112.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 285 mm | 11.220 in |
| Length, packed | 1725 mm | 67.913 in |
| Weight, gross | 34 kg | 74.957 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, mid band | 6 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 10 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (3) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 446 mm | 17.559 in |
| Depth | 165 mm | 6.496 in |
| Length | 1500 mm | 59.055 in |
| Net Weight, antenna only | 26 kg | 57.320 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1710 – 2170 MHz |
| Polarization | ±45° |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | B1-B3 | B1-B3 | |
| Frequency Band, MHz | 698–803 | 790–890 | 890–960 | 1710–1880 | 1920–2170 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-10 | 5-10 |
| Gain, dBi | 14.0 | 14.4 | 14.8 | 15.1 | 15.6 |
| Beamwidth, Horizontal, degrees | 64 | 61 | 58 | 60 | 58 |
| Beamwidth, Vertical, degrees | 12.9 | 11.9 | 11 | 9.3 | 8.4 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 15 | 15 | 15 | 15 | 15 |
| Front-to-Back Total Power at 180° ± 30°, dB | 20 | 22 | 22 | 22 | 22 |
| CPR at Boresight, dB | 18 | 18 | 18 | 18 | 18 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port, maximum, watts | 250 | 250 | 250 | 200 | 200 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 537.0 N @ 150 km/h (120.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 198.0 N @ 150 km/h (44.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 499.0 N @ 150 km/h (112.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 285 mm | 11.220 in |
| Length, packed | 1725 mm | 67.913 in |
| Weight, gross | 34 kg | 74.957 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| UK-ROHS | Compliant |
