RRV42H-6533D-R8
16-port sector antenna, 4x 694–960 and 8x 1695-2690 MHz 65° HPBW and 4x 1695-2400 MHz 2x 33° HPBW, 8x RET.
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
Specifications
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (6) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 49.6 kg | 109.349 lb |

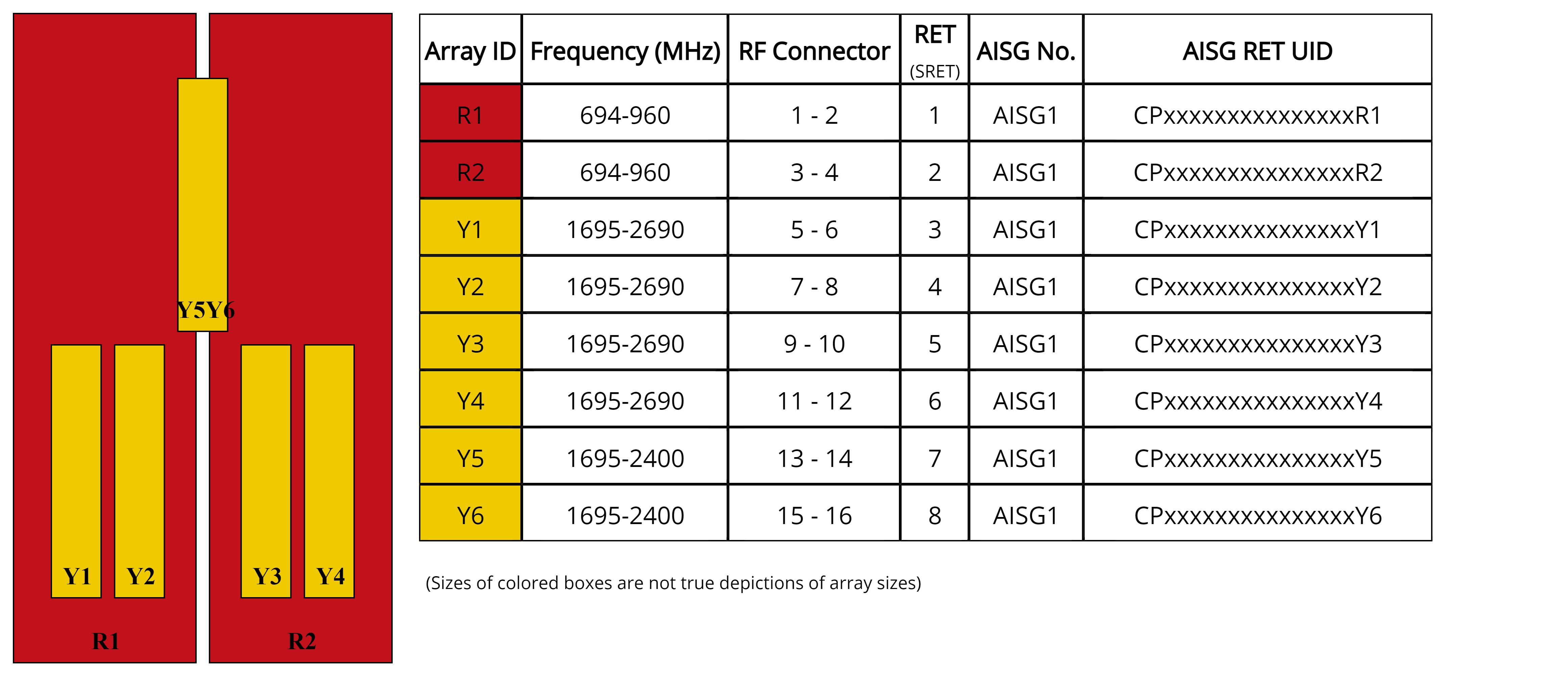

Array layout
| Click on image to enlarge. |

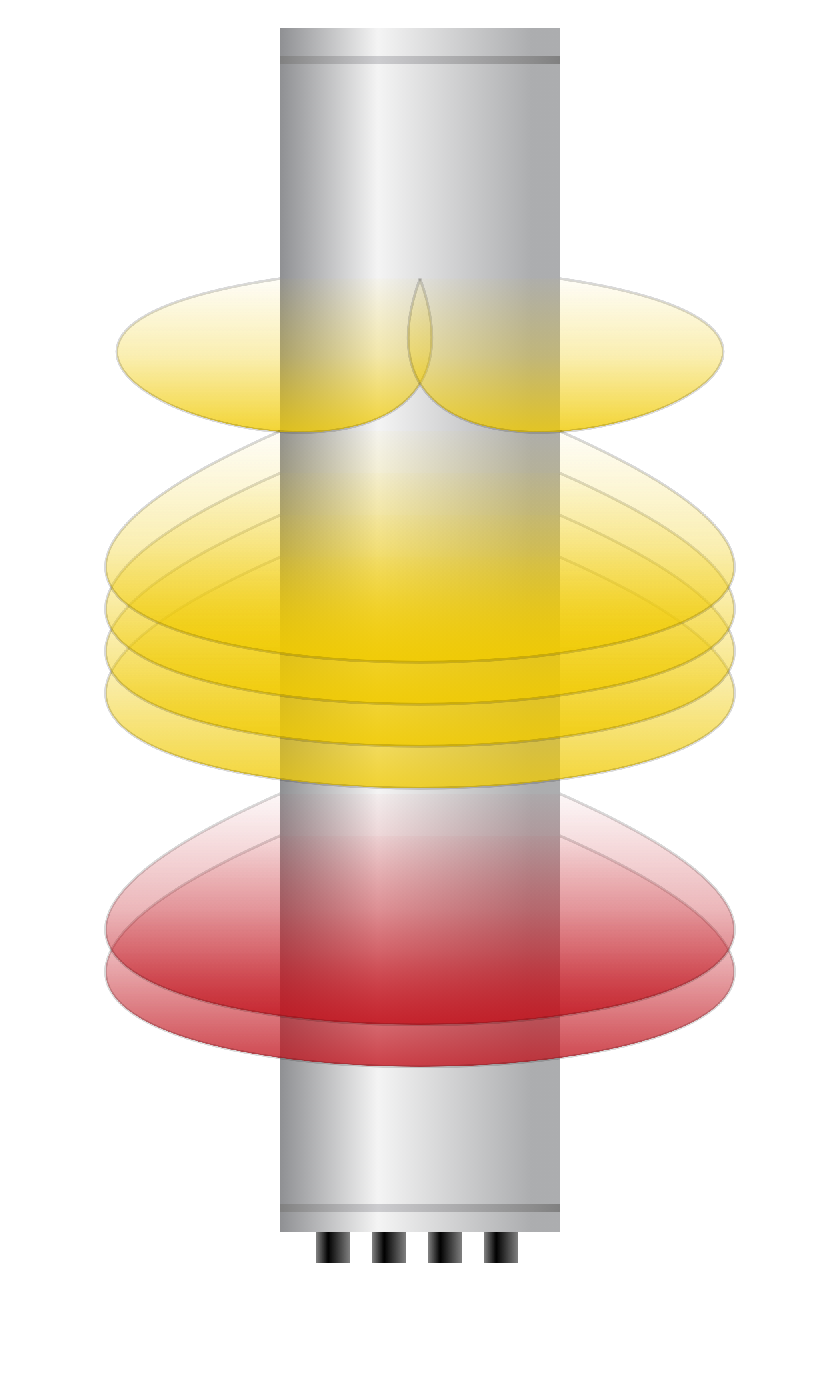

Beams configuration
| Click on image to enlarge. |

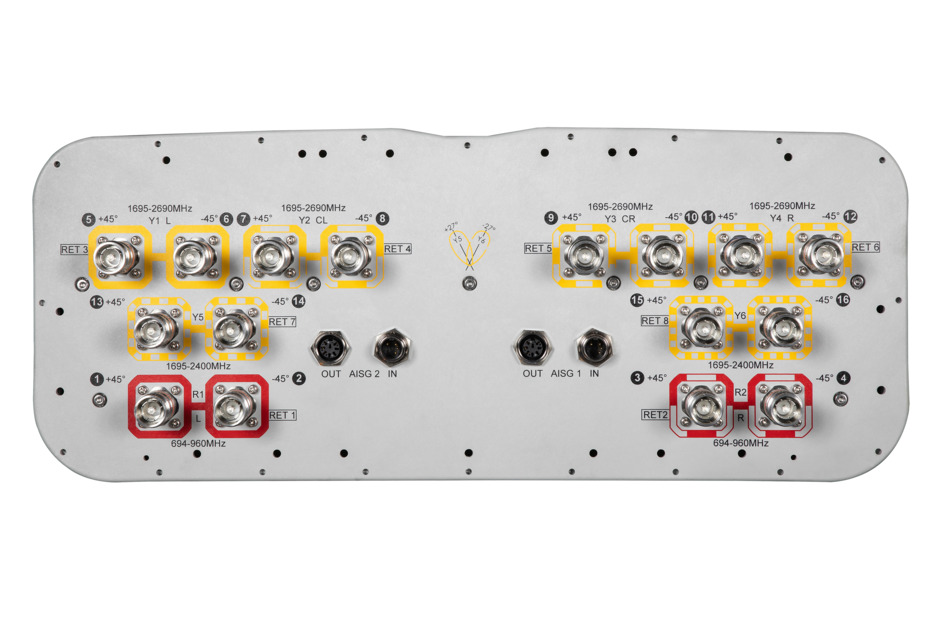

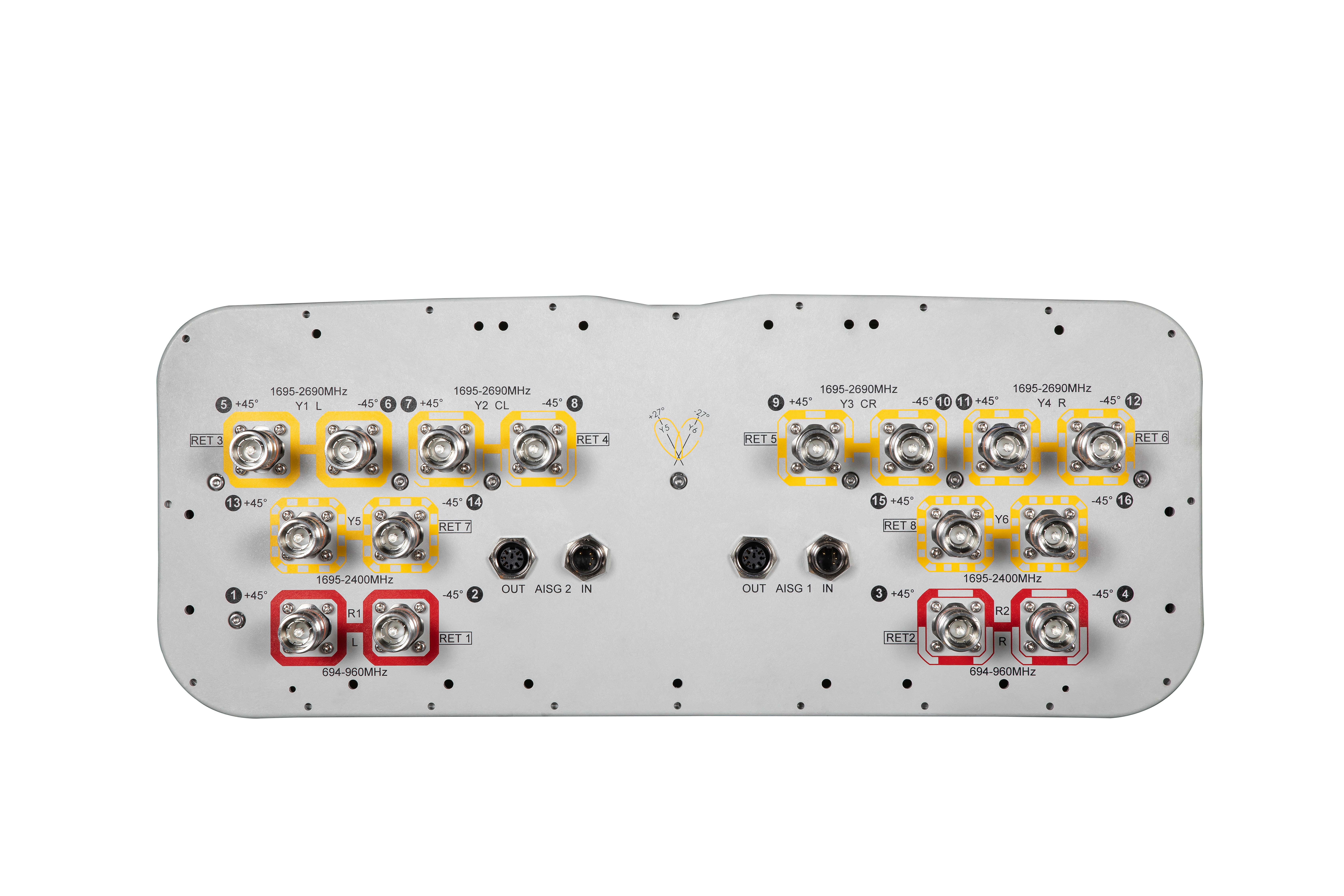

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz | 1695 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y5-Y6 | Y5-Y6 | Y5-Y6 | |
| Frequency Band, MHz | 694–790 | 790–960 | 1695–1920 | 1920–2180 | 2300–2690 | 1695–1880 | 1920–2180 | 2300–2400 |
| Gain, dBi | 15.9 | 16.6 | 16.5 | 17.8 | 18.4 | 17.9 | 19.4 | 19.3 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | |||||
| Beamwidth, Horizontal, degrees | 70 | 62 | 68 | 62 | 58 | 32 | 31 | 30 |
| Beamwidth, Vertical, degrees | 9 | 7.7 | 7.4 | 6.5 | 5.5 | 7.4 | 6.5 | 5.7 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 19 | 18 | 19 | 24 | 19 | 21 | 22 |
| Front-to-Back Ratio at 180°, dB | 31 | 30 | 33 | 32 | 31 | 32 | 36 | 32 |
| CPR at Boresight, dB | 19 | 20 | 19 | 21 | 20 | 17 | 19 | 15 |
| Isolation, Cross Polarization, dB | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 200 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Mechanical Tilt Range | 0°–12° |
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 70.6 kg | 155.646 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Multibeam |
| Band | Multiband |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 12 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (6) | Low band (2) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 8 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2688 mm | 105.827 in |
| Net Weight, without mounting kit | 49.6 kg | 109.349 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1695 – 2690 MHz | 1695 – 2400 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1-R2 | R1-R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y5-Y6 | Y5-Y6 | Y5-Y6 | |
| Frequency Band, MHz | 694–790 | 790–960 | 1695–1920 | 1920–2180 | 2300–2690 | 1695–1880 | 1920–2180 | 2300–2400 |
| Gain, dBi | 15.9 | 16.6 | 16.5 | 17.8 | 18.4 | 17.9 | 19.4 | 19.3 |
| Beam Centers, Horizontal, degrees | ±27 | ±27 | ±27 | |||||
| Beamwidth, Horizontal, degrees | 70 | 62 | 68 | 62 | 58 | 32 | 31 | 30 |
| Beamwidth, Vertical, degrees | 9 | 7.7 | 7.4 | 6.5 | 5.5 | 7.4 | 6.5 | 5.7 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 19 | 18 | 19 | 24 | 19 | 21 | 22 |
| Front-to-Back Ratio at 180°, dB | 31 | 30 | 33 | 32 | 31 | 32 | 36 | 32 |
| CPR at Boresight, dB | 19 | 20 | 19 | 21 | 20 | 17 | 19 | 15 |
| Isolation, Cross Polarization, dB | 28 | 28 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 200 | 200 | 200 | 200 | 200 | 200 |
Mechanical specifications
| Mechanical Tilt Range | 0°–12° |
| Wind Loading @ Velocity, frontal | 1,070.0 N @ 150 km/h (240.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 375.0 N @ 150 km/h (84.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,385.0 N @ 150 km/h (311.4 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 880.0 N @ 150 km/h (197.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2935 mm | 115.551 in |
| Weight, gross | 70.6 kg | 155.646 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
