RRZZV4-65D-R8NV1
16-port sector antenna, 4x 694-960, 4x 1427-2690, and 8x 1695-2690 MHz 65° HPBW, 8 x RET
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Retractable tilt indicator rods
- Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)
- Array configuration provides capability for 4T4R (4x MIMO) on Low band and High band
- Antenna shape optimized for wind load reduction
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (6) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 2769 mm | 109.016 in |
| Net Weight, antenna only | 47.9 kg | 105.601 lb |

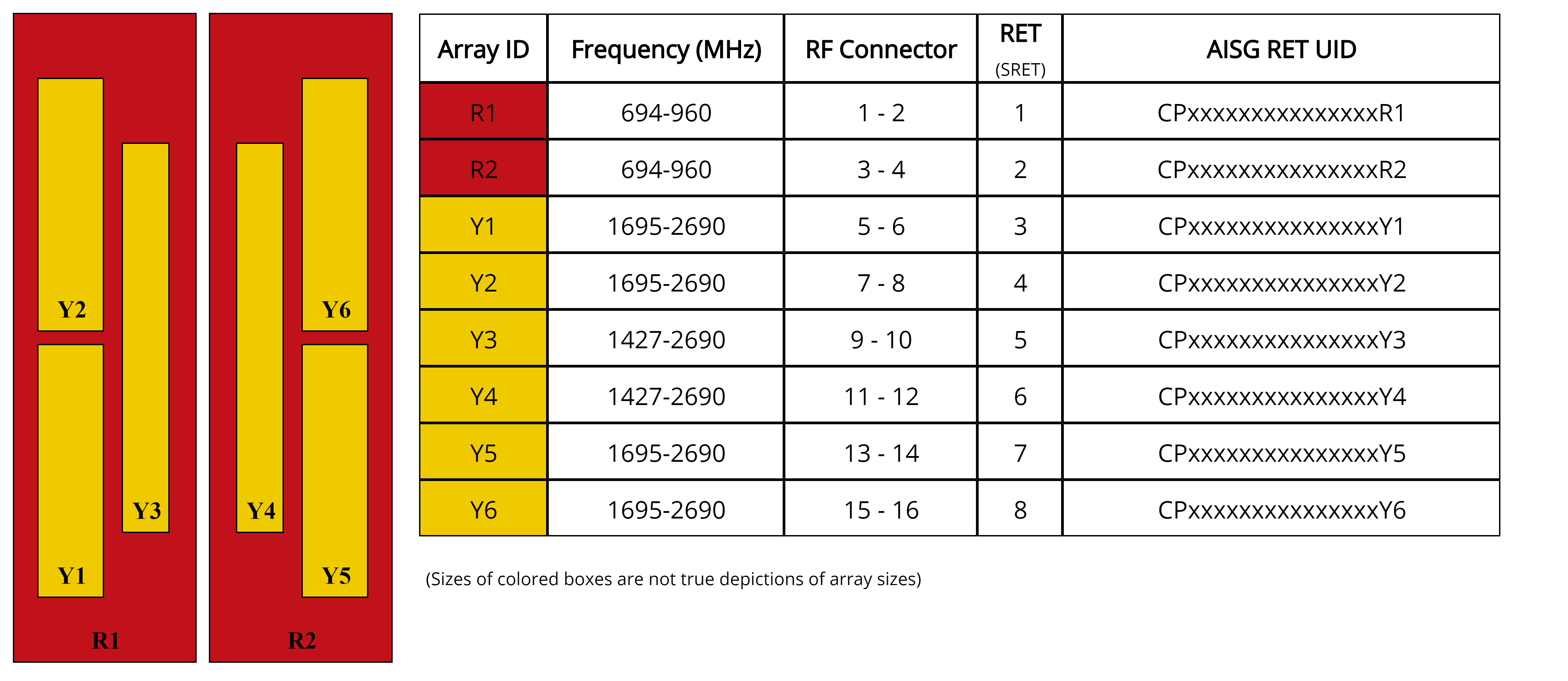

Array layout
| Click on image to enlarge. |

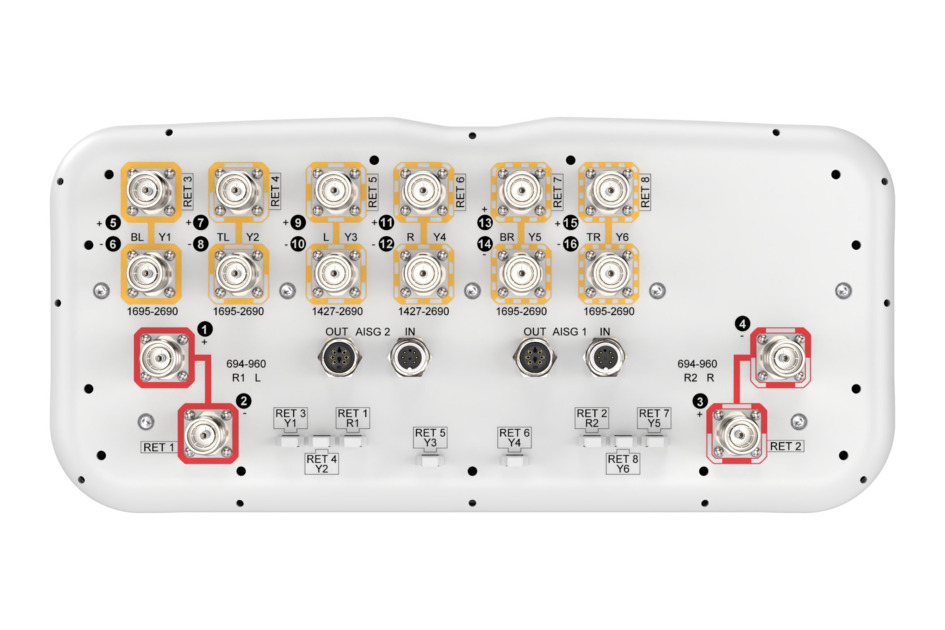

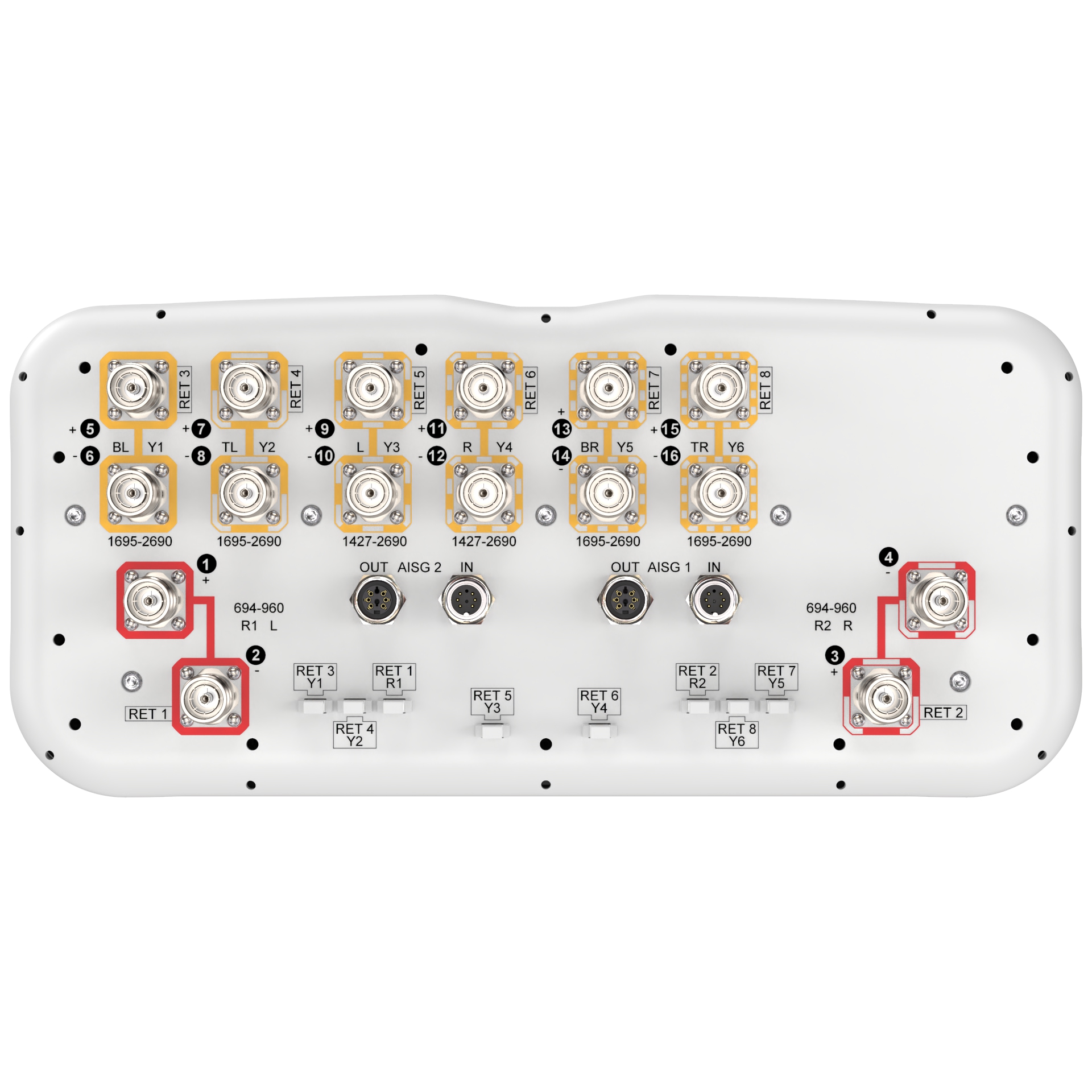

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 790–896 | 890–960 | 1427–1518 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 |
| Beamwidth, Horizontal, degrees | 70 | 63 | 61 | 61 | 68 | 67 | 62 | 59 | 69 | 64 | 62 | 62 |
| Beamwidth, Vertical, degrees | 7.6 | 6.8 | 6.4 | 6.9 | 5.7 | 5.1 | 4.6 | 4.3 | 6.3 | 5.6 | 5 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 18 | 16 | 15 | 18 | 19 | 20 | 19 | 16 | 15 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 32 | 30 | 30 | 30 | 31 | 31 | 31 | 31 | 32 | 31 | 32 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 23 | 22 | 24 | 26 | 27 | 27 | 27 | 26 | 25 | 26 | 26 |
| CPR at Boresight, dB | 24 | 24 | 23 | 16 | 19 | 18 | 18 | 16 | 21 | 20 | 18 | 18 |
| Isolation, Cross Polarization, dB | 27 | 27 | 27 | 26 | 26 | 26 | 26 | 26 | 27 | 27 | 27 | 27 |
| Isolation, Inter-band, dB | 27 | 27 | 27 | 26 | 26 | 26 | 26 | 26 | 27 | 27 | 27 | 27 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 150 | 150 | 200 | 200 | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 680.0 N @ 150 km/h (152.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 347.0 N @ 150 km/h (78.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,020.0 N @ 150 km/h (229.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 434.0 N @ 150 km/h (97.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 2897 mm | 114.055 in |
| Weight, gross | 68.9 kg | 151.898 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 12 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) | Mid band (6) |
| Power Consumption, active state, maximum | 8 W |
| Power Consumption, idle state, maximum | 1 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 430 mm | 16.929 in |
| Depth | 197 mm | 7.756 in |
| Length | 2769 mm | 109.016 in |
| Net Weight, antenna only | 47.9 kg | 105.601 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 698–806 | 790–896 | 890–960 | 1427–1518 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 | 1695–1990 | 1920–2300 | 2300–2500 | 2490–2690 |
| Beamwidth, Horizontal, degrees | 70 | 63 | 61 | 61 | 68 | 67 | 62 | 59 | 69 | 64 | 62 | 62 |
| Beamwidth, Vertical, degrees | 7.6 | 6.8 | 6.4 | 6.9 | 5.7 | 5.1 | 4.6 | 4.3 | 6.3 | 5.6 | 5 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 | 2–12 |
| USLS (First Lobe), dB | 17 | 18 | 16 | 15 | 18 | 19 | 20 | 19 | 16 | 15 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 32 | 30 | 30 | 30 | 31 | 31 | 31 | 31 | 32 | 31 | 32 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 24 | 23 | 22 | 24 | 26 | 27 | 27 | 27 | 26 | 25 | 26 | 26 |
| CPR at Boresight, dB | 24 | 24 | 23 | 16 | 19 | 18 | 18 | 16 | 21 | 20 | 18 | 18 |
| Isolation, Cross Polarization, dB | 27 | 27 | 27 | 26 | 26 | 26 | 26 | 26 | 27 | 27 | 27 | 27 |
| Isolation, Inter-band, dB | 27 | 27 | 27 | 26 | 26 | 26 | 26 | 26 | 27 | 27 | 27 | 27 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 250 | 250 | 250 | 200 | 200 | 200 | 150 | 150 | 200 | 200 | 150 | 150 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 680.0 N @ 150 km/h (152.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 347.0 N @ 150 km/h (78.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,020.0 N @ 150 km/h (229.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 434.0 N @ 150 km/h (97.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 530 mm | 20.866 in |
| Depth, packed | 356 mm | 14.016 in |
| Length, packed | 2897 mm | 114.055 in |
| Weight, gross | 68.9 kg | 151.898 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
