RV4PX306R

10-port sector antenna, 2x 698–960 and 8x 1710–2690 MHz, 65° HPBW, 5x RET with manual override.

Finish making your selections or clear them to view relevant specifications.
Find a partner

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum

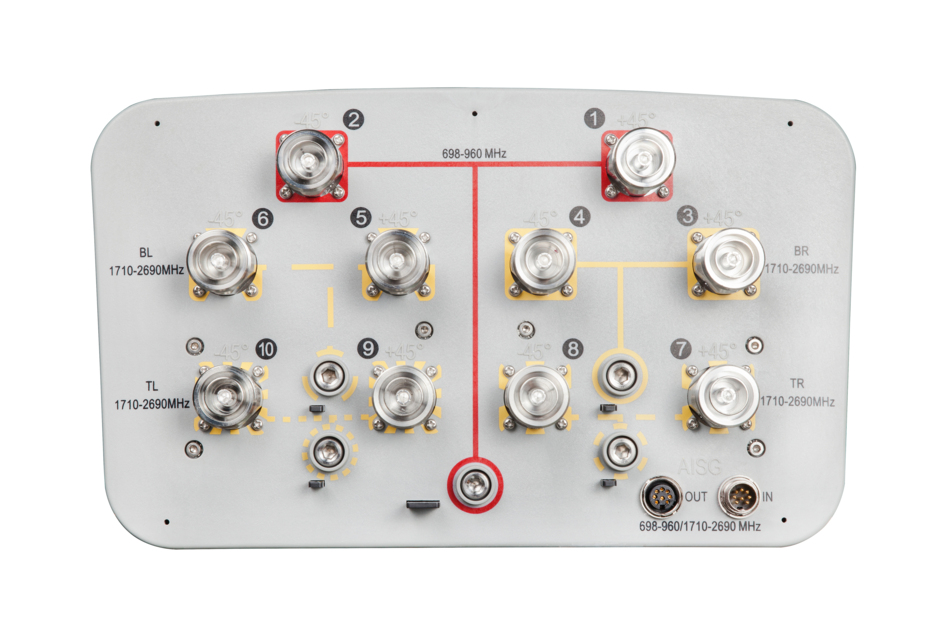

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 353 mm | 13.898 in
Depth 209 mm | 8.228 in
Length 1599 mm | 62.953 in
Net Weight, without mounting kit 24 kg | 52.911 lb

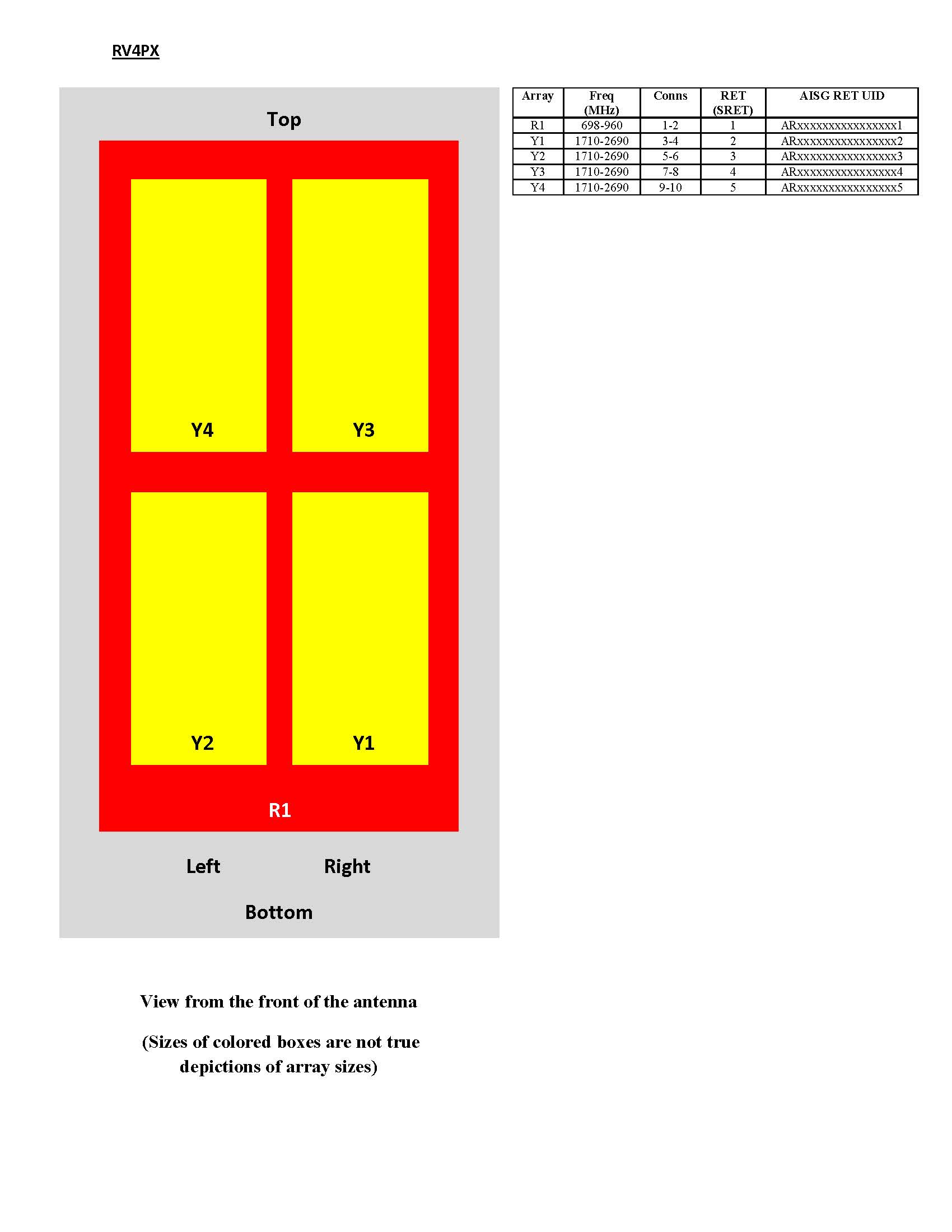

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 698–790 790–890 890–960 1710–1920 1920–2180 2300–2690
Gain, dBi 14.2 14.4 14.9 14.7 15.2 16.1
Beamwidth, Horizontal, degrees 68 69 63 63 63 62
Beamwidth, Vertical, degrees 16.4 14.9 13.6 13.7 12.2 9.7
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 23 23 23 27 28 28
CPR at Boresight, dB 17 13 13 20 17 18
CPR at Sector, dB 8 8 6 5 3 2
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0 1.43 | 15.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 300 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 681.0 N @ 150 km/h (153.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 265.0 N @ 150 km/h (59.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 699.0 N @ 150 km/h (157.1 lbf @ 150 km/h)
Wind Speed, maximum 250 km/h (155 mph)

Packaging and weights

Width, packed 427 mm | 16.811 in
Depth, packed 325 mm | 12.795 in
Length, packed 1787 mm | 70.354 in
Weight, gross 39 kg | 85.98 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material ASA, UV stabilized
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 353 mm | 13.898 in
Depth 209 mm | 8.228 in
Length 1599 mm | 62.953 in
Net Weight, without mounting kit 24 kg | 52.911 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1710 – 2690 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 698–790 790–890 890–960 1710–1920 1920–2180 2300–2690
Gain, dBi 14.2 14.4 14.9 14.7 15.2 16.1
Beamwidth, Horizontal, degrees 68 69 63 63 63 62
Beamwidth, Vertical, degrees 16.4 14.9 13.6 13.7 12.2 9.7
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 23 23 23 27 28 28
CPR at Boresight, dB 17 13 13 20 17 18
CPR at Sector, dB 8 8 6 5 3 2
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.43 | 15.0 1.43 | 15.0 1.43 | 15.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 300 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 681.0 N @ 150 km/h (153.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 265.0 N @ 150 km/h (59.6 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 699.0 N @ 150 km/h (157.1 lbf @ 150 km/h)
Wind Speed, maximum 250 km/h (155 mph)

Packaging and weights

Width, packed 427 mm | 16.811 in
Depth, packed 325 mm | 12.795 in
Length, packed 1787 mm | 70.354 in
Weight, gross 39 kg | 85.98 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant, Compliant/Exempted
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
