  5. RVV2NPX310.211R
Warning Icon
This product will be discontinued on: December 31, 2025

For other alternatives, please contact us for more information.

1 Replacement products available
  • RVV2H-6533D-R5
    10-port sector antenna, 2x 694–960 and 4x 1695-2690 MHz 65° HPBW and 4x 1695-2180 MHz 2x 33° HPBW, 5x RET.

RVV2NPX310.211R

10-port sector antenna, 2x 694–960 MHz 65° HPBW, 4x 1695-2690 MHz 65° HPBW and 2x 1695-2180 MHz 2x 33° HPBW, 5x RET with manual override. Bands cascaded SRET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • Integrated Internal Remote Electrical Tilt (RET), with independent control of electrical tilt with manual override on all arrays
  • All Internal RET actuators are connected in “Cascaded SRET” configuration

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2763.5 mm | 108.799 in
Net Weight, without mounting kit 46.1 kg | 101.633 lb

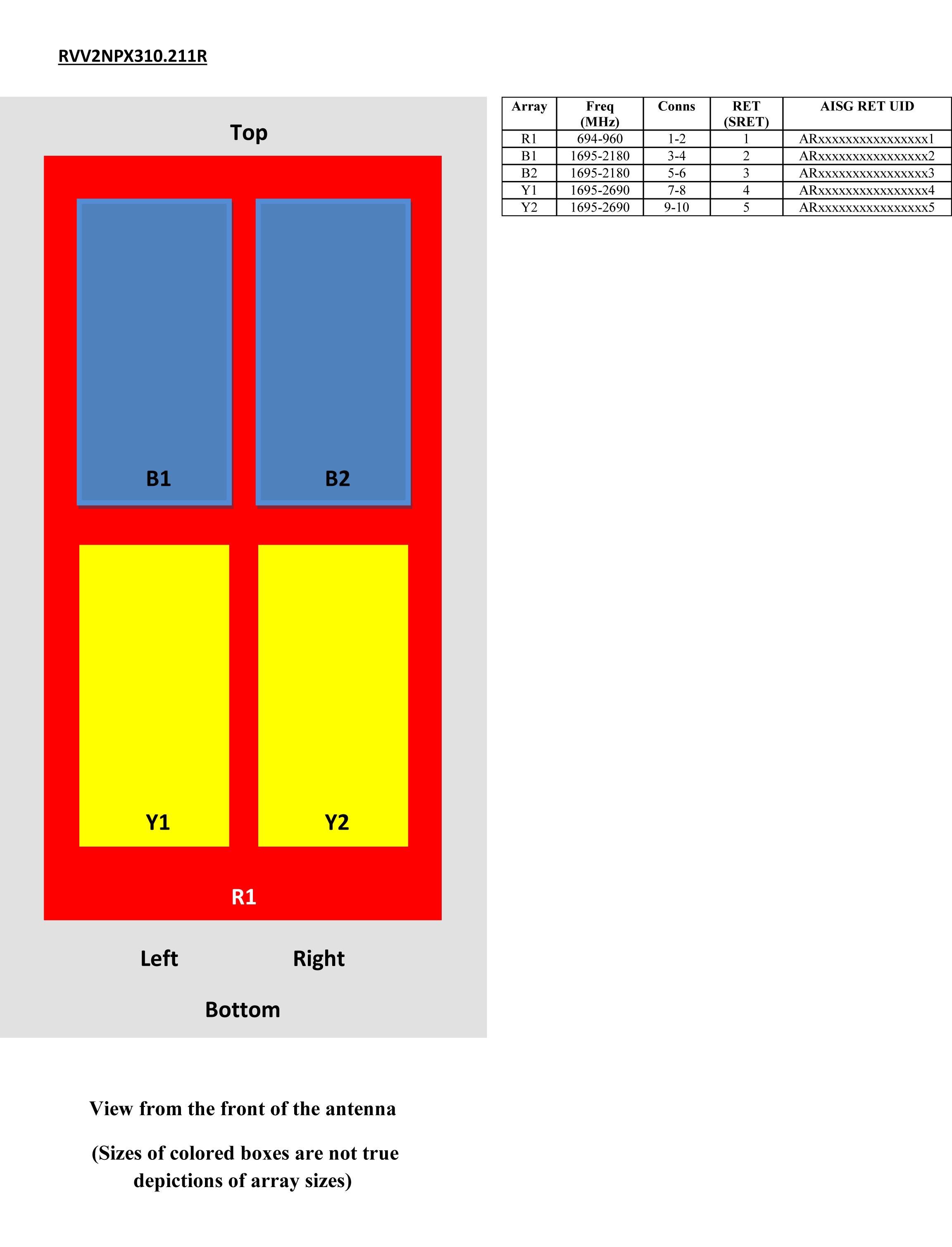

Array layout

Click on image to enlarge.

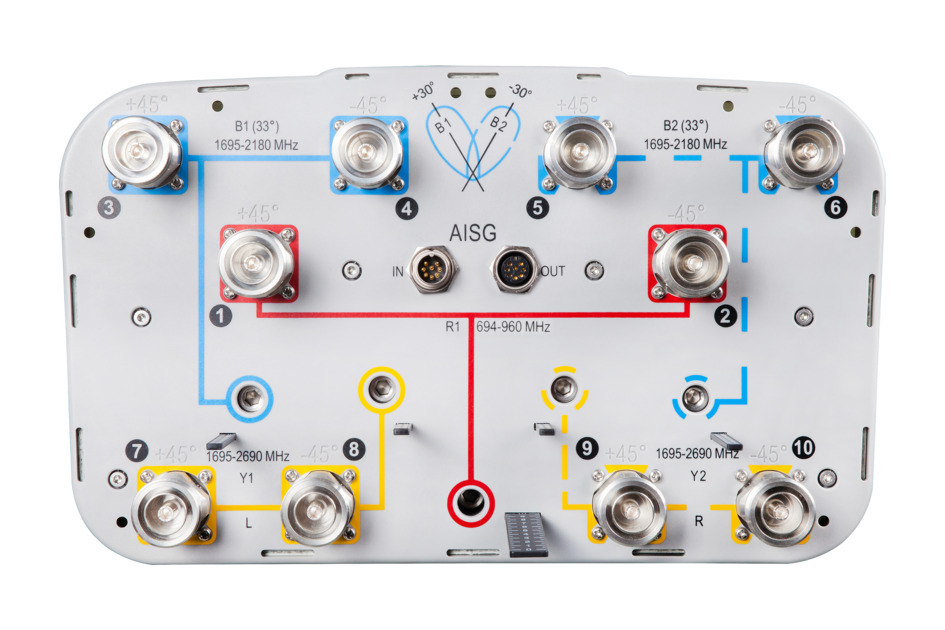

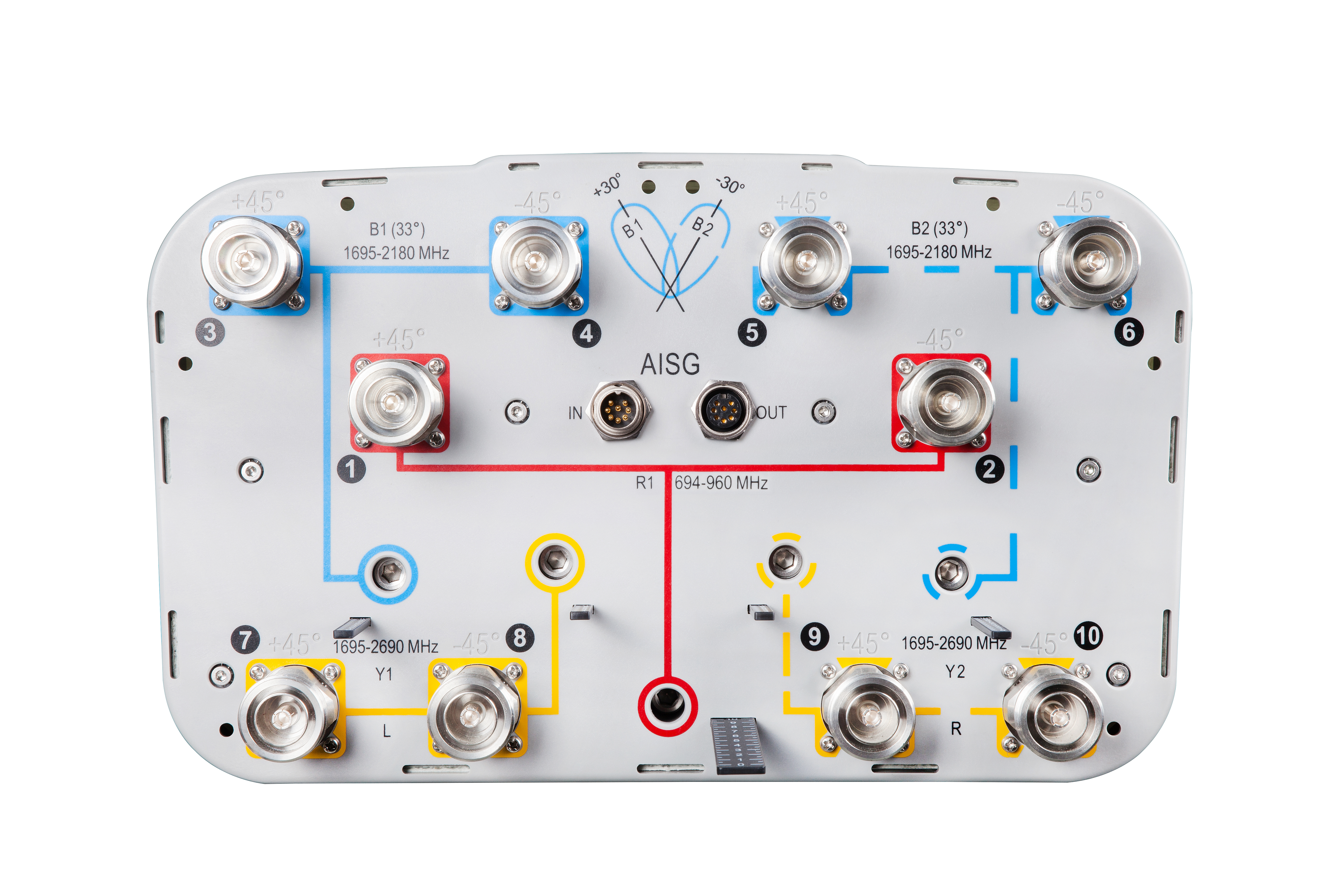

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 1695 – 2180 MHz
Polarization ±45°

Electrical specifications

LB LB LB HB HB HB HB-Dual-Beam2 HB-Dual-Beam2
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2690 1695–1920 1920–2180
Gain, dBi 16.2 16.5 16.7 17.5 18.2 18.8 17.2 18.8
Beam Centers, Horizontal, degrees ±31 ±28
Beamwidth, Horizontal, degrees 69 68 68 62 62 61 36 32
Beamwidth, Vertical, degrees 10.1 8.9 8.3 7.5 6.7 5.5 7.7 6.9
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 31 33 34 35 38 38 28 33
Front-to-Back Total Power at 180° ± 30°, dB 27 27 27 27 27 29 24 27
CPR at Boresight, dB 15 16 16 20 20 20 12 10
Isolation, Cross Polarization, dB 28 28 28 30 30 30 25 25
Isolation, Beam to Beam, dB 18 18
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 300 250 250 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 493.0 N @ 150 km/h (110.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 423.0 N @ 150 km/h (95.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,044.0 N @ 150 km/h (234.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 523.0 N @ 150 km/h (117.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 436 mm | 17.165 in
Depth, packed 320 mm | 12.598 in
Length, packed 2985 mm | 117.52 in
Weight, gross 68.5 kg | 151.016 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 10

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (4) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 2763.5 mm | 108.799 in
Net Weight, without mounting kit 46.1 kg | 101.633 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2690 MHz | 1695 – 2180 MHz
Polarization ±45°

Electrical specifications

LB LB LB HB HB HB HB-Dual-Beam2 HB-Dual-Beam2
Frequency Band, MHz 694–790 790–890 890–960 1695–1920 1920–2180 2300–2690 1695–1920 1920–2180
Gain, dBi 16.2 16.5 16.7 17.5 18.2 18.8 17.2 18.8
Beam Centers, Horizontal, degrees ±31 ±28
Beamwidth, Horizontal, degrees 69 68 68 62 62 61 36 32
Beamwidth, Vertical, degrees 10.1 8.9 8.3 7.5 6.7 5.5 7.7 6.9
Beam Tilt, degrees 0–10 0–10 0–10 0–10 0–10 0–10 0–10 0–10
USLS (First Lobe), dB 18 18 18 18 18 18 18 18
Null Fill, dB -22 -22 -22 -22 -22 -22 -22 -22
Front-to-Back Ratio at 180°, dB 31 33 34 35 38 38 28 33
Front-to-Back Total Power at 180° ± 30°, dB 27 27 27 27 27 29 24 27
CPR at Boresight, dB 15 16 16 20 20 20 12 10
Isolation, Cross Polarization, dB 28 28 28 30 30 30 25 25
Isolation, Beam to Beam, dB 18 18
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.43 | 15.0 1.43 | 15.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port, maximum, watts 300 300 300 250 250 250 250 250

Mechanical specifications

Wind Loading @ Velocity, frontal 493.0 N @ 150 km/h (110.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 423.0 N @ 150 km/h (95.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,044.0 N @ 150 km/h (234.7 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 523.0 N @ 150 km/h (117.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 436 mm | 17.165 in
Depth, packed 320 mm | 12.598 in
Length, packed 2985 mm | 117.52 in
Weight, gross 68.5 kg | 151.016 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant

Assembly drawing

Line drawing

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product information

Antenna Patterns | (login required)

Product specification

RVV2NPX310.211R Product specifications
RVV2NPX310.211R Product specifications (Comprehensive)

Warranty

ANDREW Terms, Conditions and Warranty

Assembly drawing

Line drawing

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product information

Antenna Patterns | (login required)

Product specification

RVV2NPX310.211R Product specifications
RVV2NPX310.211R Product specifications (Comprehensive)

Warranty

ANDREW Terms, Conditions and Warranty
