T4-90A-R1-V6
Planar Array Antenna, 2300–2690 MHz, 90° HPBW, 1xIntRET
Features and benefits
- For use in beamforming system, includes a calibration port
- Planar array antenna – 4 columns
- Single internal RET control for all four antenna arrays
- Optimized for software defined split six sector applications
Specifications
General specifications
| Antenna Type | Sector and beamforming |
| Band | Single band |
| Calibration Connector Interface | 4.3-10 Female |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 1610 mm | 63.386 in |
| Net Weight, without mounting kit | 14.2 kg | 31.306 lb |

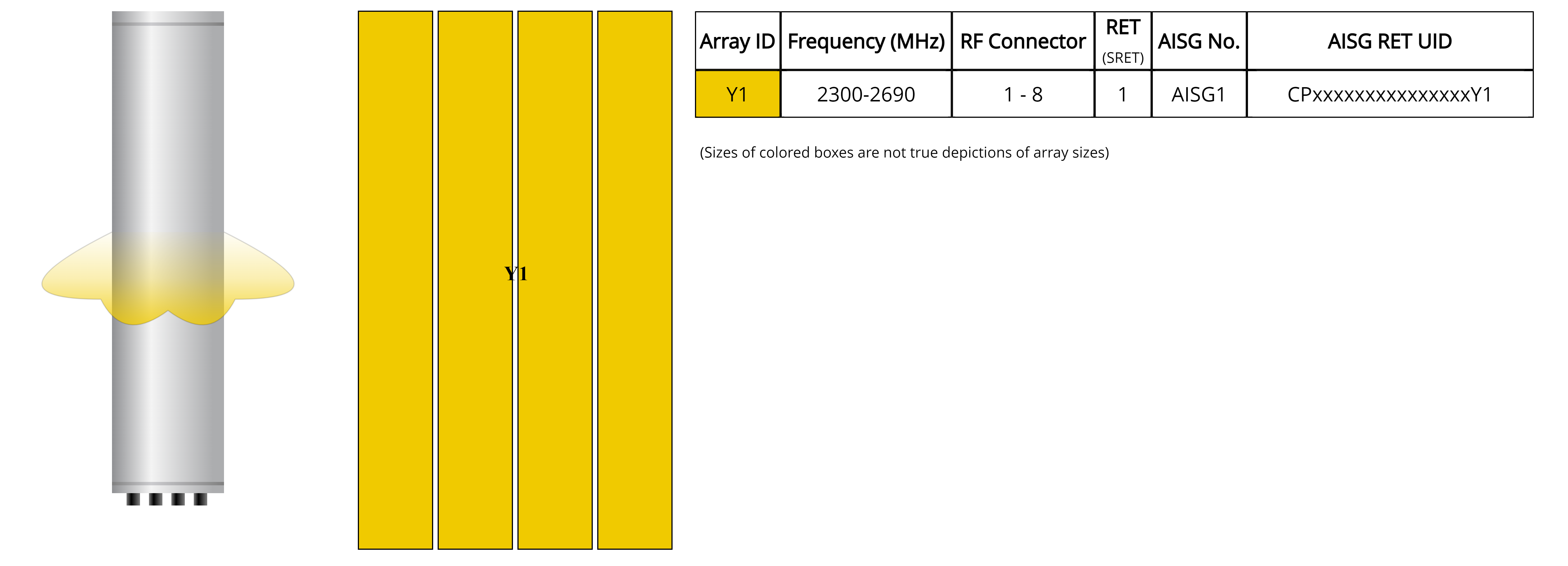

Array layout
| Click on image to enlarge. |

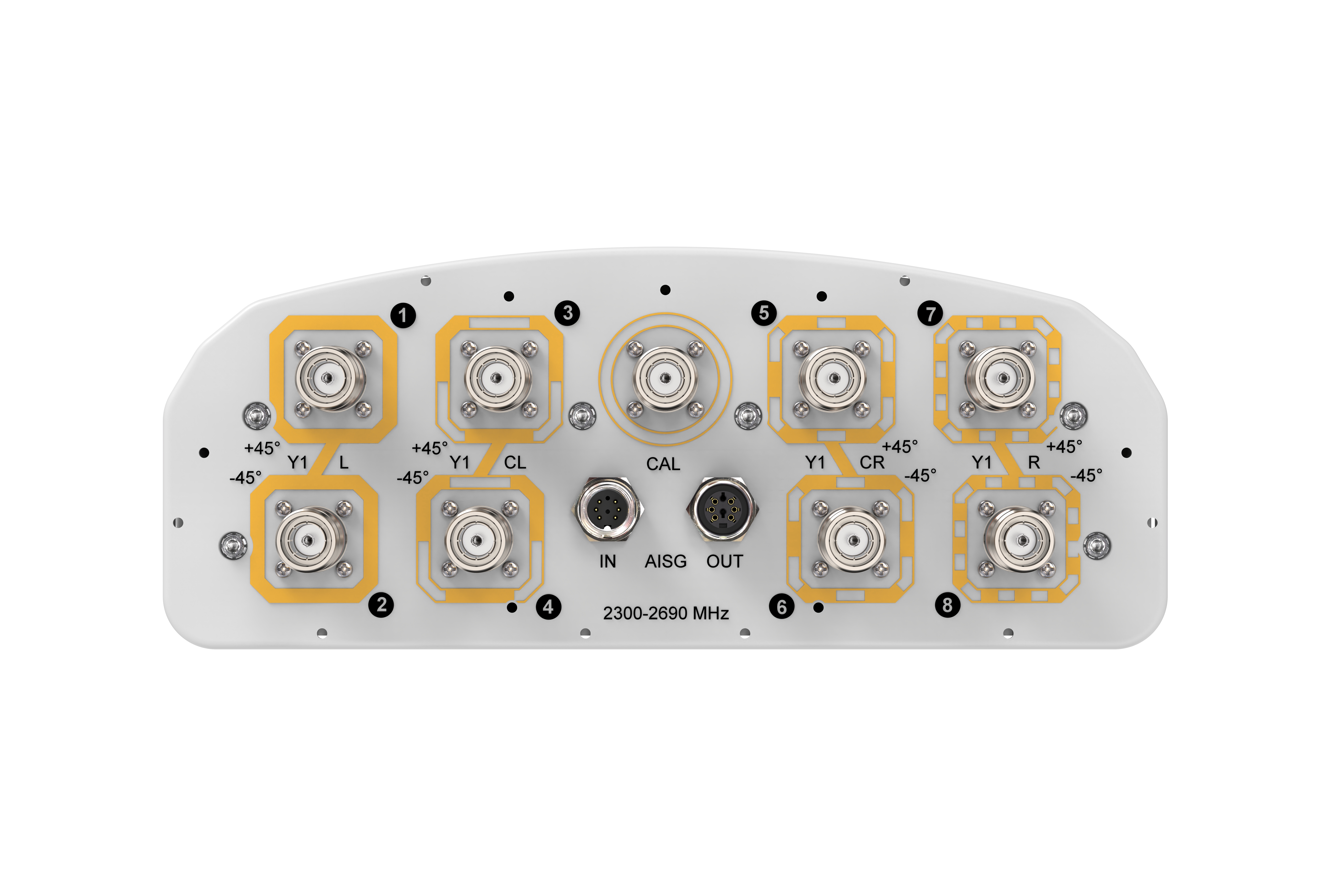

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2300 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beamwidth, Horizontal, degrees | 95 | 86 |
| Beamwidth, Vertical, degrees | 5.1 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 29 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 18 | 16 |
| Isolation, Cross Polarization, dB | 24 | 24 |
| Isolation, Inter-band, dB | 24 | 24 |
| Isolation, Co-polarization, dB | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beamwidth, Horizontal, degrees | 65 | 65 |
| Beamwidth, Vertical, degrees | 5.1 | 4.7 |
| Front-to-Back Total Power at 180° ± 30°, dB | 29 | 29 |
| USLS (First Lobe), dB | 19 | 17 |
Electrical specifications, service beam
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Steered 0° Gain, dBi | 22.6 | 22.7 |
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 25 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 34 | 34 |
| Steered 0° USLS (First Lobe), dB | 20 | 18 |
| Steered 30° Gain, dBi | 21.6 | 21.7 |
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 30 | 31 |
Electrical specifications, soft split
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 21.3 | 21.3 |
| Beamwidth, Horizontal, degrees | 35 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 30 |
| Horizontal Sidelobe, dB | 17 | 17 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 586.0 N @ 150 km/h (131.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 123.0 N @ 150 km/h (27.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 709.0 N @ 150 km/h (159.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 413 mm | 16.260 in |
| Depth, packed | 257 mm | 10.118 in |
| Length, packed | 1740 mm | 68.504 in |
| Weight, gross | 24.1 kg | 53.131 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Sector and beamforming |
| Band | Single band |
| Calibration Connector Interface | 4.3-10 Female |
| Calibration Connector Quantity | 1 |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 8 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 8 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 307 mm | 12.087 in |
| Depth | 118 mm | 4.646 in |
| Length | 1610 mm | 63.386 in |
| Net Weight, without mounting kit | 14.2 kg | 31.306 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 2300 – 2690 MHz |
| Polarization | ±45° |
Electrical specifications
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beamwidth, Horizontal, degrees | 95 | 86 |
| Beamwidth, Vertical, degrees | 5.1 | 4.8 |
| Beam Tilt, degrees | 2–12 | 2–12 |
| USLS (First Lobe), dB | 19 | 18 |
| Front-to-Back Ratio at 180°, dB | 30 | 29 |
| Coupling level, Amp, Antenna port to Cal port, dB | 26 | 26 |
| Coupling level, max Amp Δ, Antenna port to Cal port, dB | ±2 | ±2 |
| Coupler, max Amp Δ, Antenna port to Cal port, dB | 0.9 | 0.9 |
| Coupler, max Phase Δ, Antenna port to Cal port, degrees | 7 | 7 |
| CPR at Boresight, dB | 18 | 16 |
| Isolation, Cross Polarization, dB | 24 | 24 |
| Isolation, Inter-band, dB | 24 | 24 |
| Isolation, Co-polarization, dB | 20 | 20 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 |
| Input Power per Port at 50°C, maximum, watts | 150 | 150 |
Electrical specifications, broadcast 65
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Beamwidth, Horizontal, degrees | 65 | 65 |
| Beamwidth, Vertical, degrees | 5.1 | 4.7 |
| Front-to-Back Total Power at 180° ± 30°, dB | 29 | 29 |
| USLS (First Lobe), dB | 19 | 17 |
Electrical specifications, service beam
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Steered 0° Gain, dBi | 22.6 | 22.7 |
| Steered 0° Beamwidth, Horizontal, degrees | 26 | 25 |
| Steered 0° Front-to-Back Total Power at 180° ± 30°, dB | 34 | 34 |
| Steered 0° USLS (First Lobe), dB | 20 | 18 |
| Steered 30° Gain, dBi | 21.6 | 21.7 |
| Steered 30° Front-to-Back Total Power at 180° ± 30°, dB | 30 | 31 |
Electrical specifications, soft split
| Frequency Band, MHz | 2300–2400 | 2496–2690 |
| Gain, dBi | 21.3 | 21.3 |
| Beamwidth, Horizontal, degrees | 35 | 32 |
| Front-to-Back Total Power at 180° ± 30°, dB | 30 | 30 |
| Horizontal Sidelobe, dB | 17 | 17 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 586.0 N @ 150 km/h (131.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 123.0 N @ 150 km/h (27.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 709.0 N @ 150 km/h (159.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 413 mm | 16.260 in |
| Depth, packed | 257 mm | 10.118 in |
| Length, packed | 1740 mm | 68.504 in |
| Weight, gross | 24.1 kg | 53.131 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
