VVSSP-360S-F
10-port small cell antenna, 4x 1695-2690, 4x 3300-4000, 2x 5150-5925 MHz, 360° Horizontal Beamwidth, fixed tilt.
Features and benefits
- Broadband Mid Band arrays (AWS/PCS/WCS/Band 41) with 4T4R (4X MIMO) capability
- Broadband performance – optimized for CBRS and C-bands
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 10 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 200 mm | 7.874 in |
| Length | 600 mm | 23.622 in |
| Net Weight, antenna only | 7 kg | 15.432 lb |

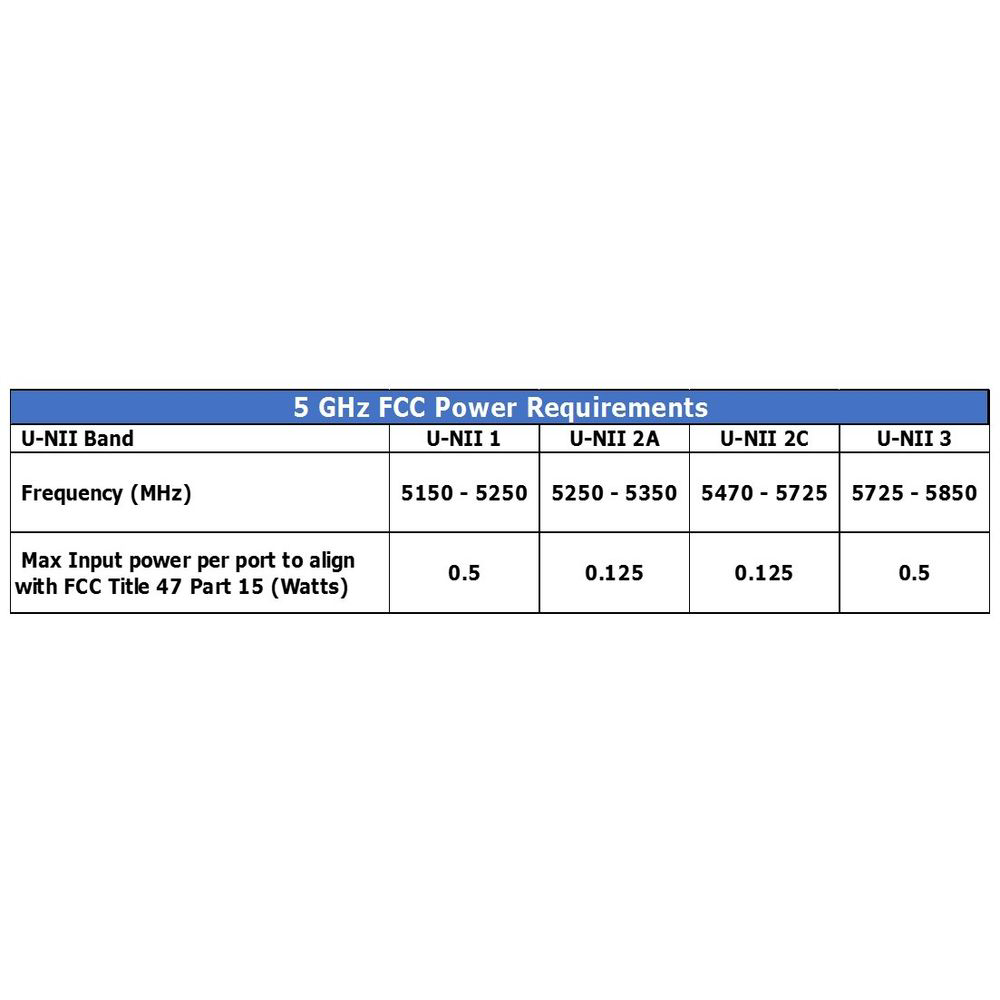

5 ghz port power table
| Click on image to enlarge. |

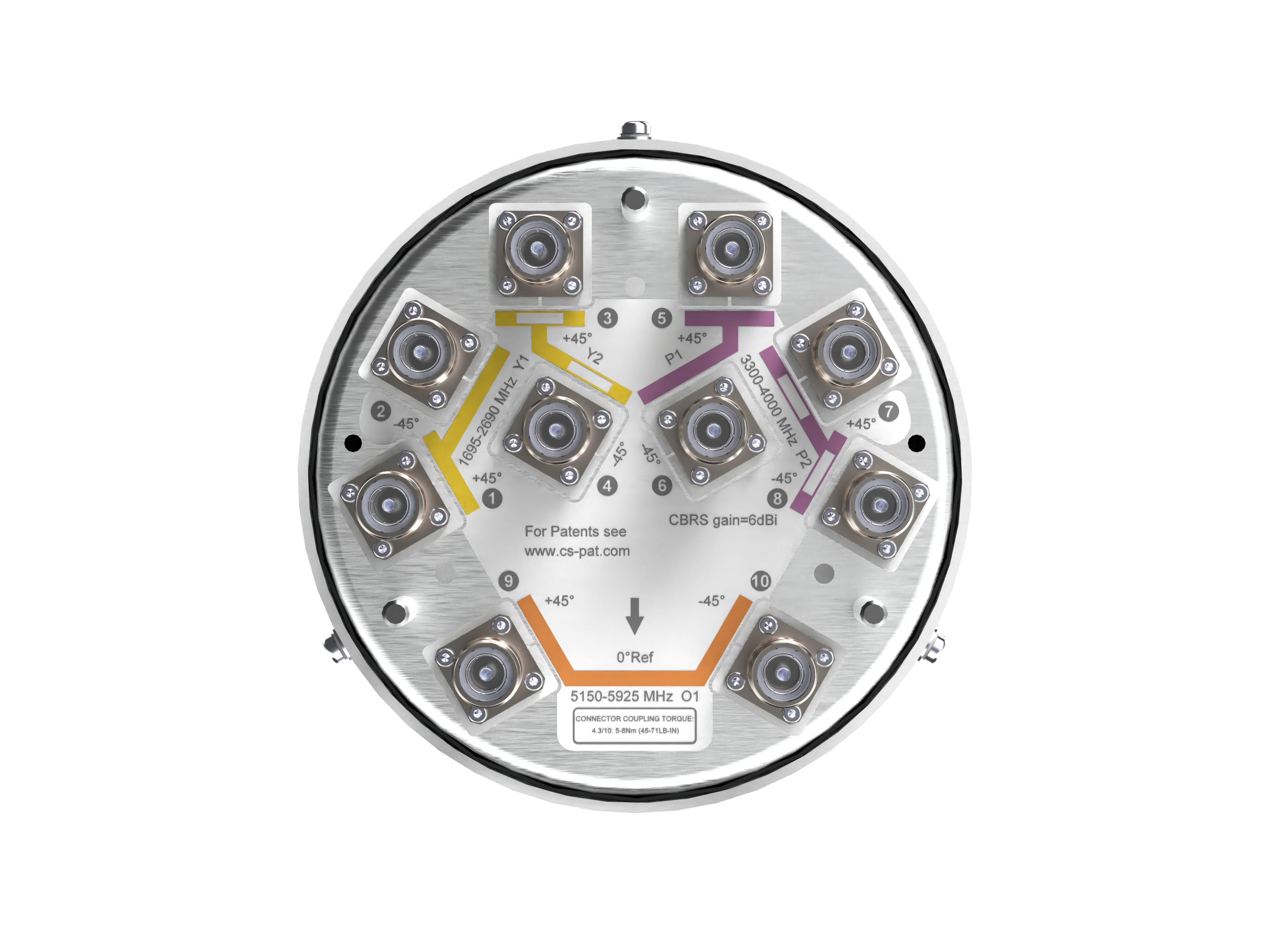

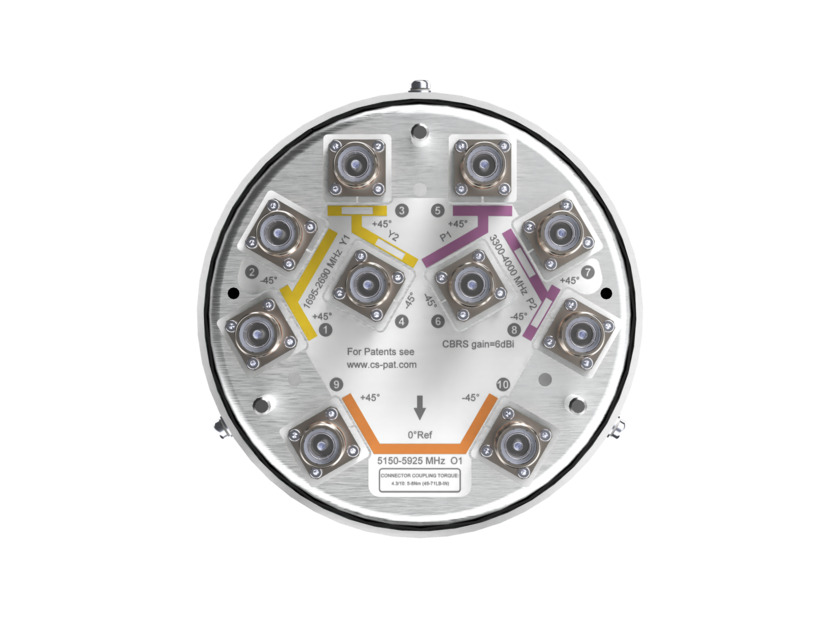

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| Y1-Y2 | Y1-Y2 | Y1-Y2 | P1-P2 | P1-P2 | P1-P2 | O1 | |
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3300–3550 | 3550–3700 | 3700–4000 | 5150–5925 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 9-10 |
| Gain, dBi | 6.6 | 7.3 | 8.2 | 5.6 | 5.9 | 6.0 | 5.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.9 | 19.1 | 15.6 | 38.8 | 36.8 | 34.1 | 22.4 |
| Beam Tilt, degrees | 7 | 7 | 7 | 0 | 0 | 0 | 0 |
| USLS (First Lobe), dB | 14 | 14 | 14 | 6 | 6 | 5 | 9 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | -145 | -145 | -145 | |
| Input Power per Port, maximum, watts | 125 | 125 | 125 | 35 | 35 | 35 | 5 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 320 mm | 12.598 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 9.6 kg | 21.164 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 10 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 10 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 200 mm | 7.874 in |
| Length | 600 mm | 23.622 in |
| Net Weight, antenna only | 7 kg | 15.432 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W |
Electrical specifications
| Y1-Y2 | Y1-Y2 | Y1-Y2 | P1-P2 | P1-P2 | P1-P2 | O1 | |
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3300–3550 | 3550–3700 | 3700–4000 | 5150–5925 |
| RF Port | 1-4 | 1-4 | 1-4 | 5-8 | 5-8 | 5-8 | 9-10 |
| Gain, dBi | 6.6 | 7.3 | 8.2 | 5.6 | 5.9 | 6.0 | 5.1 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.9 | 19.1 | 15.6 | 38.8 | 36.8 | 34.1 | 22.4 |
| Beam Tilt, degrees | 7 | 7 | 7 | 0 | 0 | 0 | 0 |
| USLS (First Lobe), dB | 14 | 14 | 14 | 6 | 6 | 5 | 9 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | -145 | -145 | -145 | |
| Input Power per Port, maximum, watts | 125 | 125 | 125 | 35 | 35 | 35 | 5 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 58.0 N @ 150 km/h (13.0 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 320 mm | 12.598 in |
| Depth, packed | 300 mm | 11.811 in |
| Length, packed | 850 mm | 33.465 in |
| Weight, gross | 9.6 kg | 21.164 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
