BSAMNT-9

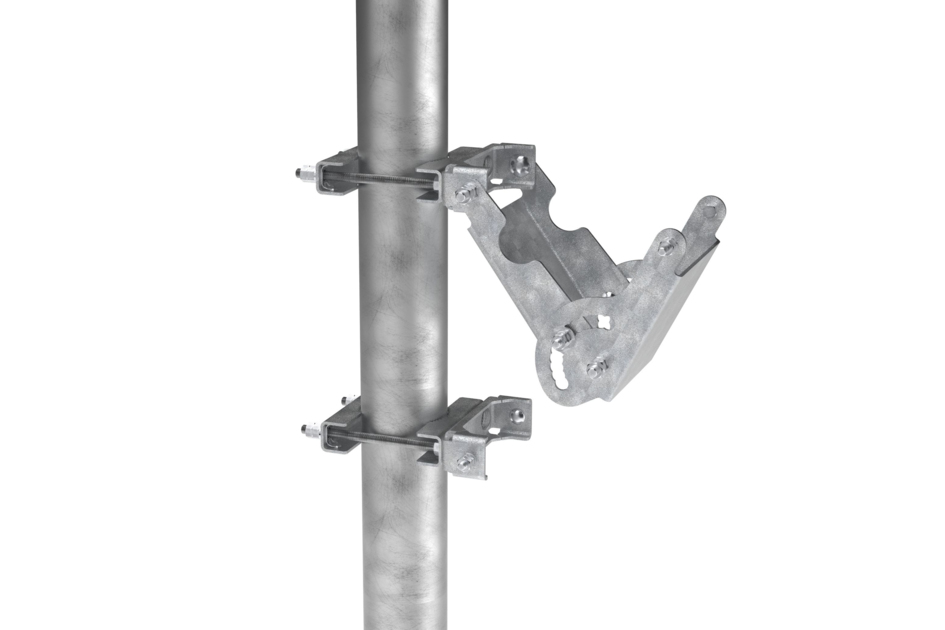

Wide Profile Antenna Downtilt Mounting Kit for 2.4 - 4.5 in (60 - 115 mm) OD round members. Kit contains one scissor top bracket set and one bottom bracket set.
Specifications
Product classification
| Product Type | Downtilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 9.7 kg | 21.385 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Downtilt mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 115 mm | 4.528 in |
| Compatible Diameter, minimum | 60 mm | 2.362 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 9.7 kg | 21.385 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
