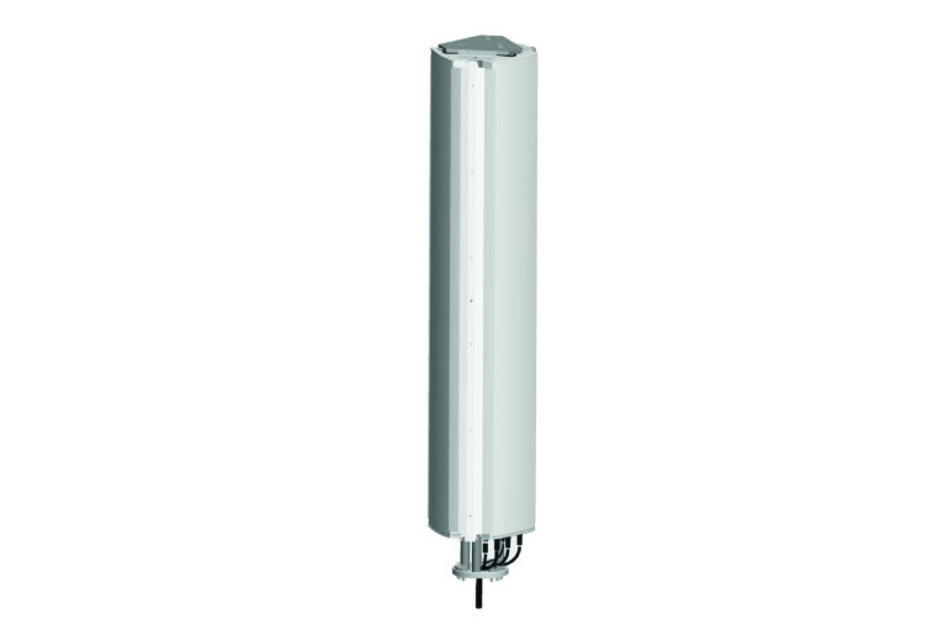

HCN-10-S
Head Frame - Multi-Band
Specifications
Product classification
| Product Type | Head frame |
General specifications
| Application | Outdoor |
Dimensions
| Height | 2917.95 mm | 114.88 in |
| Diameter, at zero degrees panning | 583 mm | 22.953 in |
| Antenna Panning Capability | ±15° |
| Weight, net | 152 kg | 335.102 lb |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 1,500.0 N @ 160 km/h (337.2 lbf @ 160 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Head frame |
General specifications
| Application | Outdoor |
Dimensions
| Height | 2917.95 mm | 114.88 in |
| Diameter, at zero degrees panning | 583 mm | 22.953 in |
| Antenna Panning Capability | ±15° |
| Weight, net | 152 kg | 335.102 lb |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 1,500.0 N @ 160 km/h (337.2 lbf @ 160 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
