This product was discontinued on: May 31, 2016

For other alternatives, please contact us for more information.

0 Replacement products available

T-085-S4

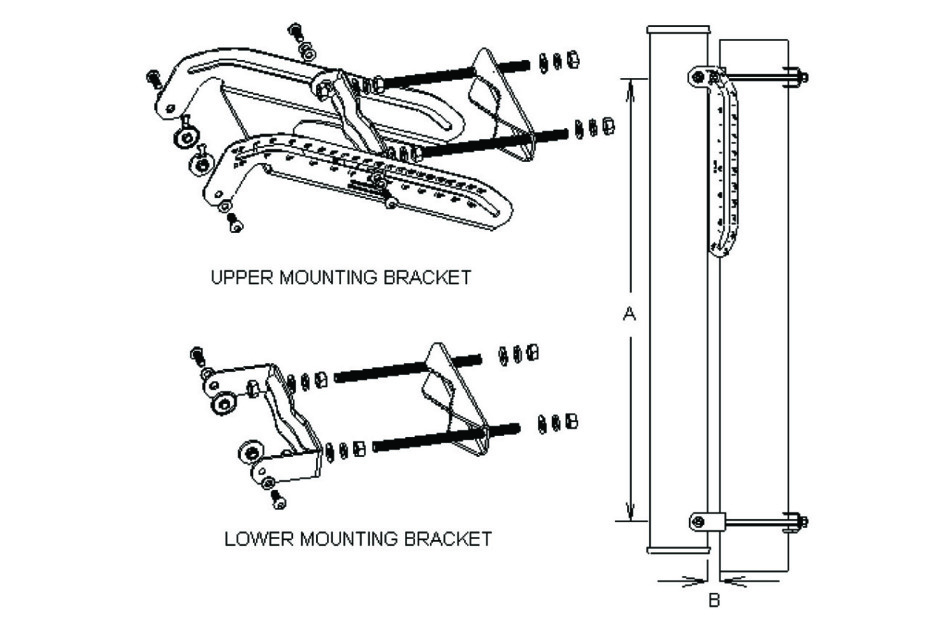

Adjustable Tilt Pipe Mounting Kit for 2.0"-3.94" (50-100mm) OD round members for panel antennas. Includes 2 clamp sets.

Finish making your selections or clear them to view relevant specifications.
Download specifications

Product classification

Product Type Adjustable tilt mounting kit

General specifications

Application Outdoor
Color Silver

Dimensions

Compatible Diameter, maximum 100 mm | 3.937 in
Compatible Diameter, minimum 50 mm | 1.969 in
Antenna-to-Pipe Distance 30 mm | 1.181 in
Bracket-to-Bracket Distance at Antenna Length 1010 mm @ 850–1099 mm | 1145 mm @ 1100–1200 mm | 610 mm @ 650–700 mm | 685 mm @ 700–849 mm
Weight, net 2 kg | 4.409 lb

Material specifications

Material Type Galvanized steel | Stainless steel

Mechanical specifications

Mechanical Downtilt at Antenna Length 0°–12° @ 850–1200 mm | 0°–20° @ 650–849 mm

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system

Product classification

Product Type Adjustable tilt mounting kit

General specifications

Application Outdoor
Color Silver

Dimensions

Compatible Diameter, maximum 100 mm | 3.937 in
Compatible Diameter, minimum 50 mm | 1.969 in
Antenna-to-Pipe Distance 30 mm | 1.181 in
Bracket-to-Bracket Distance at Antenna Length 1010 mm @ 850–1099 mm | 1145 mm @ 1100–1200 mm | 610 mm @ 650–700 mm | 685 mm @ 700–849 mm
Weight, net 2 kg | 4.409 lb

Material specifications

Material Type Galvanized steel | Stainless steel

Mechanical specifications

Mechanical Downtilt at Antenna Length 0°–12° @ 850–1200 mm | 0°–20° @ 650–849 mm

Packaging and weights

Included Brackets | Hardware
Packaging quantity 1

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
