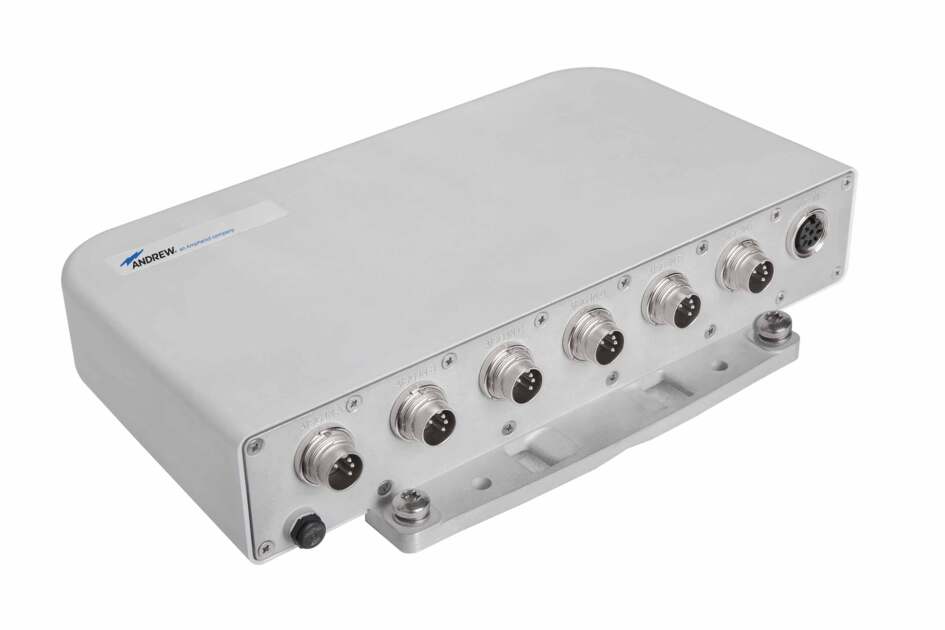

ANT-SHARING-HUB-6
Base station antenna sharing hub with configurable band assignments supporting up to six independent operators
Features and benefits
- Supports up to six independent operators
- Works with all ANDREW antennas utilizing internal RET systems
- No proprietary RET software required
- Supports up to 24 ANDREW RETs when sharing between 2 or more operators
- Band assignments are configurable using PC tool
- Compliant to 3GPP/AISG 2.0
- Multi-RET and Single RET supported, configurable per operator port
Specifications
Product classification
| Product Type | RET actuator |
General specifications
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Quantity | 6 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Color | Gray |
Dimensions
| Height | 54.4 mm | 2.142 in |
| Width | 261 mm | 10.276 in |
| Depth | 160 mm | 6.299 in |
Electrical specifications
| Input Voltage | 10–30 Vdc |
| Electrical Specifications Footnote | If using a single operator, the load capability is dependent on controller power supply, cable wire gauge, and other factors. Please contact ANDREW for any questions |
| Electromagnetic Compatibility (EMC) | CFR 47 Part 15, Subpart B, Class A | EN 55022 | EN 55032 | EN 61000-4-2 | EN 61000-4-3 | EN 61000-4-4 | EN 61000-4-6 |
| Interface Protocol Signal | RS-485 |
| Lightning Surge Capability | 5 times @ -8 kA | 5 times @ 8 kA |
| Lightning Surge Capability Test Method | IEC 61000-4-5 |
| Lightning Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform |
| Lightning Surge Test Mode | Common mode |
| Protocol | 3GPP/AISG 2.0 compliant |
Material specifications
| Material Type | ASA |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka | IEC 60068-2-52, Test Condition Kb |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP56 |
| Packaged Product Shock Test Method | ASTM D4169 | GR-63-CORE, Section 4.1.1 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 128 mm | 5.039 in |
| Width, packed | 305 mm | 12.008 in |
| Depth, packed | 206 mm | 8.110 in |
| Weight, gross | 1.7 kg | 3.748 lb |
| Weight, net | 1 kg | 2.205 lb |
Regulatory compliance/certifications
| Agency | Classification |
CE
|
Compliant with the relevant CE product directives |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | RET actuator |
General specifications
| AISG Input Connector | 8-pin DIN Male |
| AISG Input Connector Quantity | 6 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Color | Gray |
Dimensions
| Height | 54.4 mm | 2.142 in |
| Width | 261 mm | 10.276 in |
| Depth | 160 mm | 6.299 in |
Electrical specifications
| Input Voltage | 10–30 Vdc |
| Electrical Specifications Footnote | If using a single operator, the load capability is dependent on controller power supply, cable wire gauge, and other factors. Please contact ANDREW for any questions |
| Electromagnetic Compatibility (EMC) | CFR 47 Part 15, Subpart B, Class A | EN 55022 | EN 55032 | EN 61000-4-2 | EN 61000-4-3 | EN 61000-4-4 | EN 61000-4-6 |
| Interface Protocol Signal | RS-485 |
| Lightning Surge Capability | 5 times @ -8 kA | 5 times @ 8 kA |
| Lightning Surge Capability Test Method | IEC 61000-4-5 |
| Lightning Surge Capability Waveform | 1.2/50 voltage and 8/20 current combination waveform |
| Lightning Surge Test Mode | Common mode |
| Protocol | 3GPP/AISG 2.0 compliant |
Material specifications
| Material Type | ASA |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Climatic Sequence Test Method | IEC 60068-2-14 |
| Cold Exposure Test Method | IEC 60068-2-1 |
| Corrosion Test Method | IEC 60068-2-11, Test Condition Ka | IEC 60068-2-52, Test Condition Kb |
| Damp Heat Exposure Test Method | IEC 60068-2-30, Test Condition Db |
| Heat Exposure Test Method | IEC 60068-2-2 |
| Ingress Protection Test Method | IEC 60529:2001, IP56 |
| Packaged Product Shock Test Method | ASTM D4169 | GR-63-CORE, Section 4.1.1 |
| Rain Simulation Test Method | IEC 60068-2-18, Test Condition Ra, Method 1 |
| UV Resistance Test Method | IEC 60068-2-5, Test Condition B |
| Vibration Test Method | ASTM D4169 | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 128 mm | 5.039 in |
| Width, packed | 305 mm | 12.008 in |
| Depth, packed | 206 mm | 8.110 in |
| Weight, gross | 1.7 kg | 3.748 lb |
| Weight, net | 1 kg | 2.205 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CE
|
Compliant with the relevant CE product directives |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
