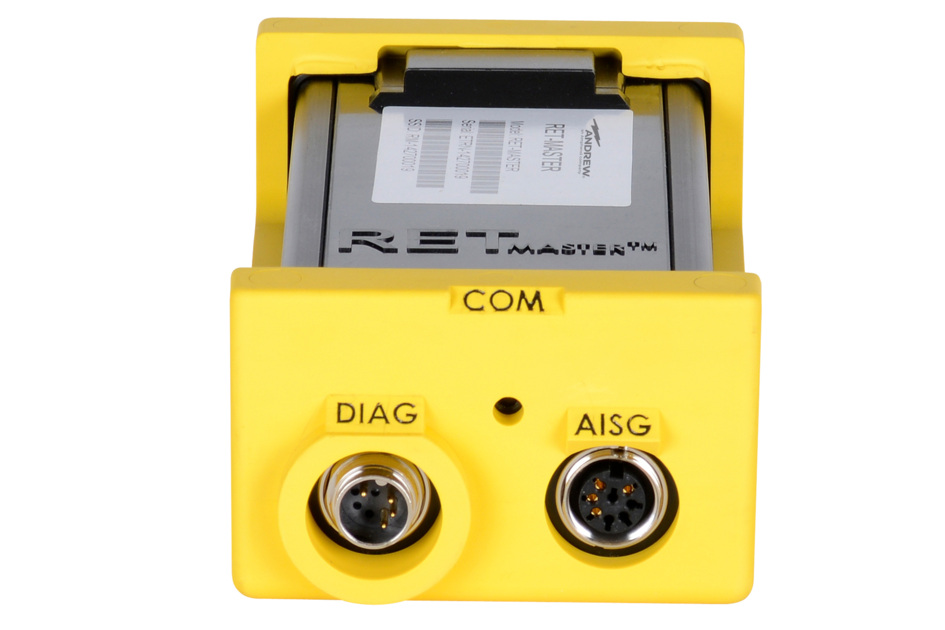

RET-MASTER-INTL
Portable Battery Operated Controller for International Applications
Features and benefits
- Battery powered wireless interface between a smartphone or tablet and remote electrical downtilt (RET) devices for setup, optimization, and troubleshooting
- Control via Wi-Fi connection between RET Master and portable devices
- Predefined diagnostic tests for easy and quick troubleshooting
- Equipped with USB connector for charging handheld devices
- Carried from site to site for RET/TMA antenna setup and optimization
Specifications
Product classification
| Product Type | RET controller |
General specifications
| AISG Diagnostic Input Connector | 8-pin DIN Male |
| AISG Diagnostic Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Auxiliary Interface Note | Used for charging mobile devices |
| Color | Black | Yellow |
| Compatible Mobile Devices | Android | iOS® |
Dimensions
| Height | 59 mm | 2.323 in |
| Width | 94 mm | 3.701 in |
| Length | 198.2 mm | 7.803 in |
Electrical specifications
| Input Voltage | 110/240 Vac |
| Output Current at Voltage, continuous | 2.0 A @ 24 V |
| Output Current at Voltage, maximum | 2.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB | CE | IEC 60950-1 |
| Interface Protocol Signal | Data | dc |
| Power Supply | Battery | dc Jack |
| Protocol | AISG 1.1 | AISG 2.0 |
Material specifications
| Material Type | ABS | Thermoplastic elastomer (TPE) |
Environmental specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Charging Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Packaging and weights
| Included | Adapter (China) | Adapter (Europe) | Adapter (United Kingdom) | Control unit | Power supply | Quick Guide |
| Weight, gross | 2.1 kg | 4.63 lb |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | RET controller |
General specifications
| AISG Diagnostic Input Connector | 8-pin DIN Male |
| AISG Diagnostic Input Connector Quantity | 1 |
| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Auxiliary Interface Note | Used for charging mobile devices |
| Color | Black | Yellow |
| Compatible Mobile Devices | Android | iOS® |
Dimensions
| Height | 59 mm | 2.323 in |
| Width | 94 mm | 3.701 in |
| Length | 198.2 mm | 7.803 in |
Electrical specifications
| Input Voltage | 110/240 Vac |
| Output Current at Voltage, continuous | 2.0 A @ 24 V |
| Output Current at Voltage, maximum | 2.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB | CE | IEC 60950-1 |
| Interface Protocol Signal | Data | dc |
| Power Supply | Battery | dc Jack |
| Protocol | AISG 1.1 | AISG 2.0 |
Material specifications
| Material Type | ABS | Thermoplastic elastomer (TPE) |
Environmental specifications
| Operating Temperature | 0 °C to +50 °C (+32 °F to +122 °F) |
| Relative Humidity | Up to 95%, non-condensing |
| Charging Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Packaging and weights
| Included | Adapter (China) | Adapter (Europe) | Adapter (United Kingdom) | Control unit | Power supply | Quick Guide |
| Weight, gross | 2.1 kg | 4.63 lb |
| Weight, net | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
