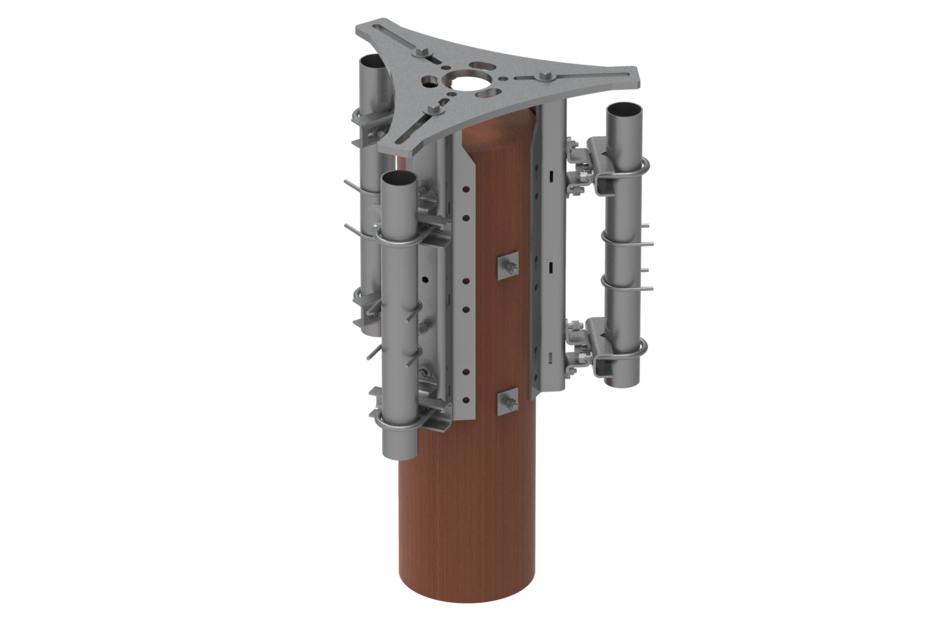

860662983-1 | WOOD POLE MOUNT FOR mmWave AND 4G / POLE TOP
Mount for 5G mmWave and 4G equipment at the top of a wood pole 7"-14" diameter
Features and benefits
-Provides through bolt mounting to a wood pole and supports mmWave equipment as well as a 4G antenna and Pole Top with 4G radios
-Future Expandable
-Pole Top product ordered separate
-Future Expandable
-Pole Top product ordered separate
Specifications
Product classification
| Product Type | Pole mount kit |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | DK | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Galvanized |
| Mounting Options | Wood poles |
| Radio Compatibility, Ericsson | 1281 | 6701 | AIR4435 |
| Radio Compatibility, Nokia | AEUB | AEWB |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X | HT1K01 |
| Radios Included | None |
Dimensions
| Height | 685.800 mm | 27 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Weight (unloaded) | 64.410 kg | 142 lb |
Product classification
| Product Type | Pole mount kit |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | DK | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Galvanized |
| Mounting Options | Wood poles |
| Radio Compatibility, Ericsson | 1281 | 6701 | AIR4435 |
| Radio Compatibility, Nokia | AEUB | AEWB |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X | HT1K01 |
| Radios Included | None |
Dimensions
| Height | 685.800 mm | 27 in |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Weight (unloaded) | 64.410 kg | 142 lb |
