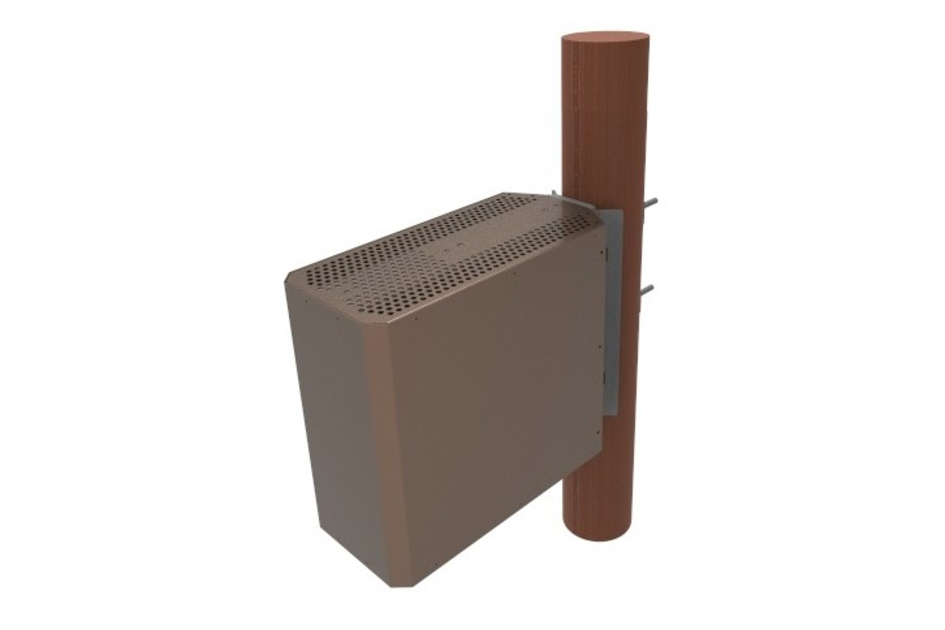

SSC-760239913 | WOOD POLE BRACKET FOR 8843 OR 4449 RADIOS
Shrouded Wood Pole bracket for Ericsson 8843 or 4449 radios and supporting PSU's/Diplexer
Features and benefits
Attaches to Wood Poles with through bolts and or customer supplied banding.
Specifications
Product classification
| Product Type | Wood pole mount |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Brown (RAL 8014) |
| Cooling | Passive Cooling |
| Mounting Options | Wood poles |
| Radio Compatibility, Ericsson | 4449 | 8843 | Diplexer | PSU-AC-08 |
| Radios Included | None |
Dimensions
| Height | 612.140 mm | 24.1 in |
| Width | 320.040 mm | 12.6 in |
| Depth | 695.706 mm | 27.39 in |
Material specifications
| Finish | Powder coated |
| Finish Aluminum | Chromate |
| Material Type | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Volume | 0.142 m³ | 5 ft³ |
| Weight (unloaded) | 29.937 kg | 66 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wood pole mount |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Color | Brown (RAL 8014) |
| Cooling | Passive Cooling |
| Mounting Options | Wood poles |
| Radio Compatibility, Ericsson | 4449 | 8843 | Diplexer | PSU-AC-08 |
| Radios Included | None |
Dimensions
| Height | 612.140 mm | 24.1 in |
| Width | 320.040 mm | 12.6 in |
| Depth | 695.706 mm | 27.39 in |
Material specifications
| Finish | Powder coated |
| Finish Aluminum | Chromate |
| Material Type | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Packaging and weights
| Volume | 0.142 m³ | 5 ft³ |
| Weight (unloaded) | 29.937 kg | 66 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
