31768A-M
Base product: ANGLE-ADAPTER-SERIES

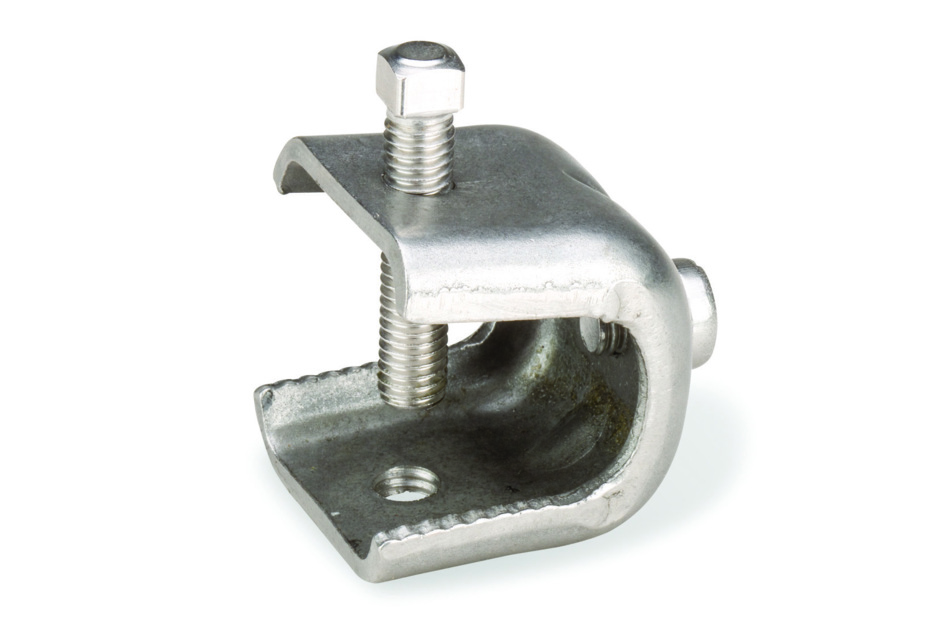

Angle Adapter, standard, M10 tapped hole
Specifications
Product classification
| Product Type | Angle adapter |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Angle adapter |
| Mounting | M10 tapped hole |
Dimensions
| Inside Width | 22.352 mm | 0.88 in |
| Outside Width | 49.784 mm | 1.96 in |
| Inside Length | 22.352 mm | 0.88 in |
| Outside Length | 44.958 mm | 1.77 in |
| Material Thickness | 4.191 mm | 0.165 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Triple stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 14.2 cm | 5.591 in |
| Width, packed | 14.2 cm | 5.591 in |
| Length, packed | 10.2 cm | 4.016 in |
| Packaging quantity | 10 |
| Weight, gross | 2.33 kg | 5.137 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Angle adapter |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Angle adapter |
| Mounting | M10 tapped hole |
Dimensions
| Inside Width | 22.352 mm | 0.88 in |
| Outside Width | 49.784 mm | 1.96 in |
| Inside Length | 22.352 mm | 0.88 in |
| Outside Length | 44.958 mm | 1.77 in |
| Material Thickness | 4.191 mm | 0.165 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Triple stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 14.2 cm | 5.591 in |
| Width, packed | 14.2 cm | 5.591 in |
| Length, packed | 10.2 cm | 4.016 in |
| Packaging quantity | 10 |
| Weight, gross | 2.33 kg | 5.137 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
