294573
Base product: ENTRY-PANEL-KIT-SERIES

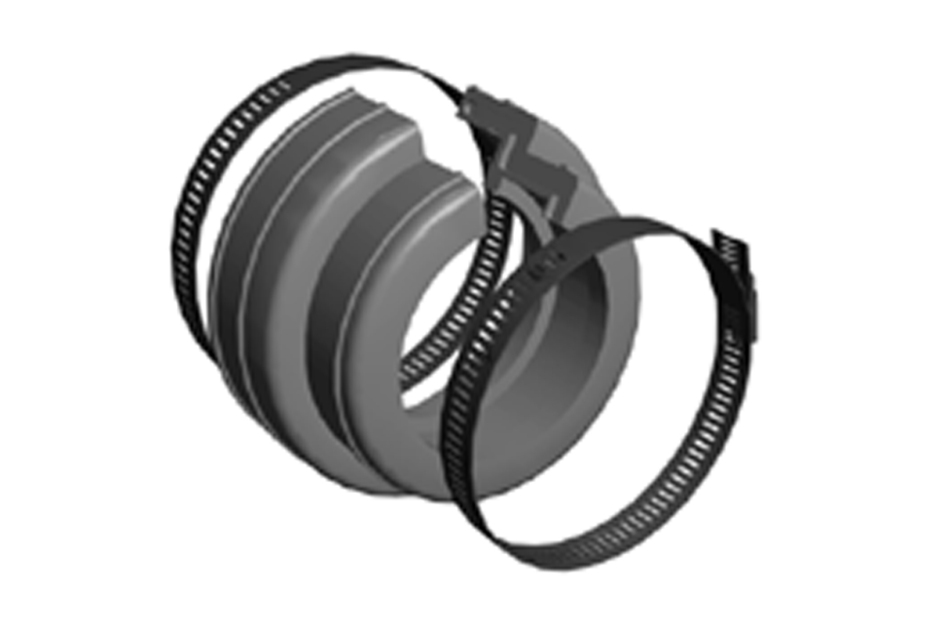

Boot Assembly, 4 in
Specifications
Product classification
| Product Type | Boot assembly |
| Product Brand | I-Line |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Cable Type | Corrugated |
| Color | Black |
Dimensions
| Height | 101.6 mm | 4 in |
| Length | 76.2 mm | 3 in |
| Nominal Size | NA |
Material specifications
| Material Type | EPDM rubber |
Environmental specifications
| UV Resistance Test Method | MIL-STD-810E, Procedure 11, Method 505 |
| UV Resistance, minimum with no degradation | ≥1000 hours |
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 170.18 mm | 6.7 in |
| Width, packed | 129.54 mm | 5.1 in |
| Length, packed | 99.06 mm | 3.9 in |
| Included | Boot | Two clamps |
| Packaging quantity | 1 |
| Weight, gross | 0.8 kg | 1.764 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
