CBB-0210N-1PU
Base product: GROUNDING-BUSS-SERIES

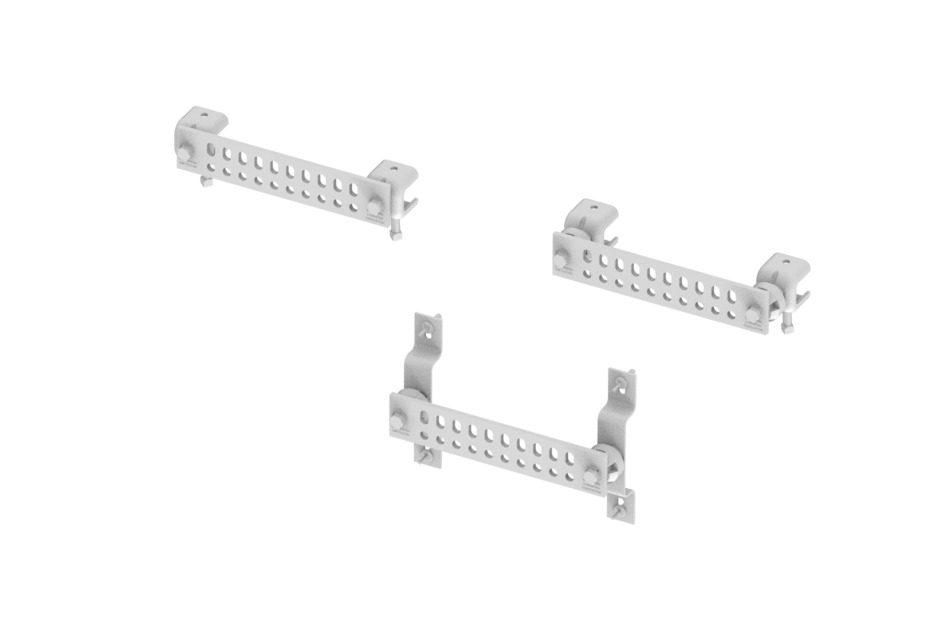

Copper Ground Buss Bar, 1/4 in x 2 in x 10 in with Universal HW
Specifications
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
Dimensions
| Height | 50.8 mm | 2 in |
| Length | 254 mm | 10 in |
| Material Thickness | 6.35 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Copper |
Packaging and weights
| Included | Galvanized angle adapter | Grounding bar | Insulators | Mounting brackets | Universal hardware |
| Packaging quantity | 1 |
Product classification
| Product Type | Grounding bar |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
Dimensions
| Height | 50.8 mm | 2 in |
| Length | 254 mm | 10 in |
| Material Thickness | 6.35 mm | 0.25 in |
| Hole Size | 7/16 in | 7/16 in x 5/8 in |
| Hole Distance, center to center | 19.05 mm | 0.75 in |
Material specifications
| Material Type | Copper |
Packaging and weights
| Included | Galvanized angle adapter | Grounding bar | Insulators | Mounting brackets | Universal hardware |
| Packaging quantity | 1 |
