FT-36VAAHIN
Base product: FT-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America
HELIAX® 36 MULTIMODE FIBER TRUNK Cca ARMORED
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Series | FT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color, connector A | Aqua |
| Color, connector B | Aqua |
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | LC/UPC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 36 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 300 |
| Diameter Over Jacket | 9.6 mm | 0.378 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 20 mm | 0.787 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | Cca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a2 |
| Environmental Space | Indoor | Outdoor |
Packaging and weights
| Cable weight | 134 kg/km | 90.044 lb/kft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Series | FT |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color, connector A | Aqua |
| Color, connector B | Aqua |
| Construction Type | Discrete fiber trunk |
| Interface, Connector A | LC/UPC |
| Interface Feature, connector A | Uniboot |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | LC/UPC |
| Interface Feature, connector B | Uniboot |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 36 |
Dimensions
| Cable Assembly Length Range (m) | 1 – 300 |
| Diameter Over Jacket | 9.6 mm | 0.378 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Mechanical specifications
| Minimum Bend Radius | 20 mm | 0.787 in |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| EN50575 CPR Cable EuroClass Fire Performance | Cca |
| EN50575 CPR Cable EuroClass Smoke Rating | s2 |
| EN50575 CPR Cable EuroClass Droplets Rating | d1 |
| EN50575 CPR Cable EuroClass Acidity Rating | a2 |
| Environmental Space | Indoor | Outdoor |
Packaging and weights
| Cable weight | 134 kg/km | 90.044 lb/kft |
Installation & videos
HELIAX® FiberFeed® Video Playlist
HELIAX® FiberFeed® Video Playlist
Documentation & downloads
Ordering guide
Product specification
Technical publication
Ordering guide
Product compliance documentation
Product specification
Technical publication
Related products & accessories
Related products
Fiber, power, RF connectivity & accessories
-
![]()

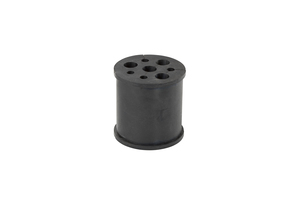

HG-064103-114 Grommet with 4 x 6 mm hole and 3 X 10 mm hole for 1-1/4 in SnapStack or Click-on Hanger (photo illustrates typical grommet) -
![]()

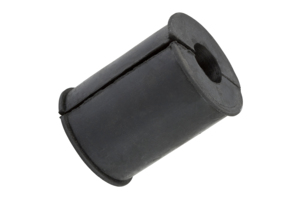

HG-38-114 Grommet with 10mm hole for 1-1/4 in Standard or Click-on Hanger
-
![]()

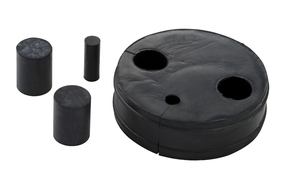

ECI-10-292-4 HELIAX® 4" Boot Assembly for one 10 mm fiber cable and one or two 29 mm power cables
-
![]()
