CA-DFDF-PS

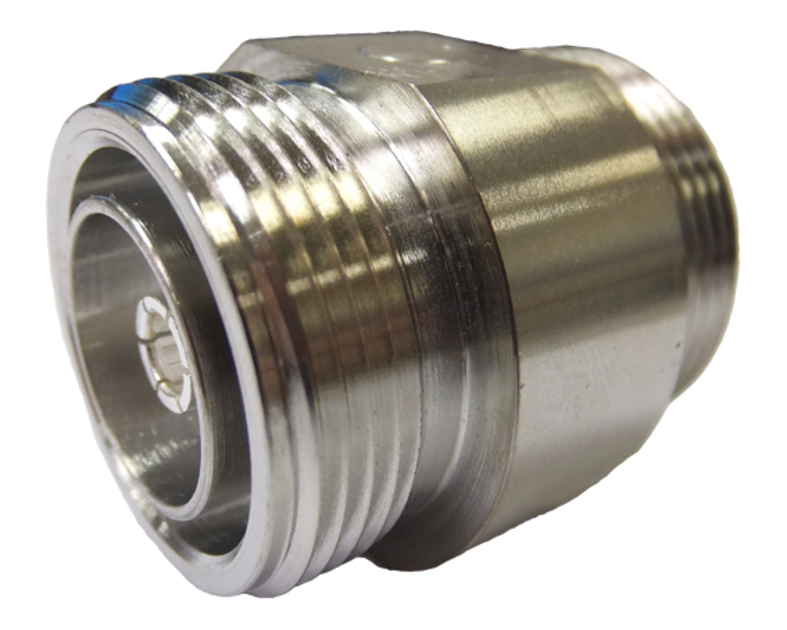

7-16 DIN Female to 7-16 DIN Female PIM Value Pre-setting Adapter
Specifications
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Female |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 34 mm | 1.339 in |
| Length | 38 mm | 1.496 in |
| Diameter | 34 mm | 1.339 in |

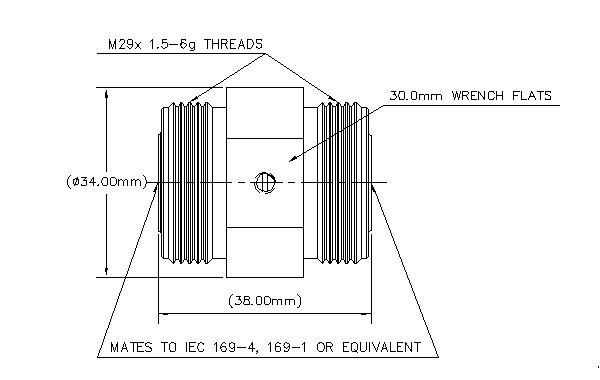

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -110 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Operating Frequency Band | 0 – 7500 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Mechanical specifications
| Insertion Force | 200 N | 44.962 lbf |
| Insertion Force Method | IEC 61169-4:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Packaging and weights
| Weight, net | 141.32 g | 0.312 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Female |
| Interface 2 | 7-16 DIN Female |
| Mounting Angle | Straight |
| Outer Contact Plating | Trimetal |
Dimensions
| Width | 34 mm | 1.339 in |
| Length | 38 mm | 1.496 in |
| Diameter | 34 mm | 1.339 in |
Electrical specifications
| 3rd Order IMD at Frequency | -110 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 4000 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Operating Frequency Band | 0 – 7500 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| RF Operating Voltage, maximum (vrms) | 1200 V |
Mechanical specifications
| Insertion Force | 200 N | 44.962 lbf |
| Insertion Force Method | IEC 61169-4:15.2.4 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
Packaging and weights
| Weight, net | 141.32 g | 0.312 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
