TA-JFDM

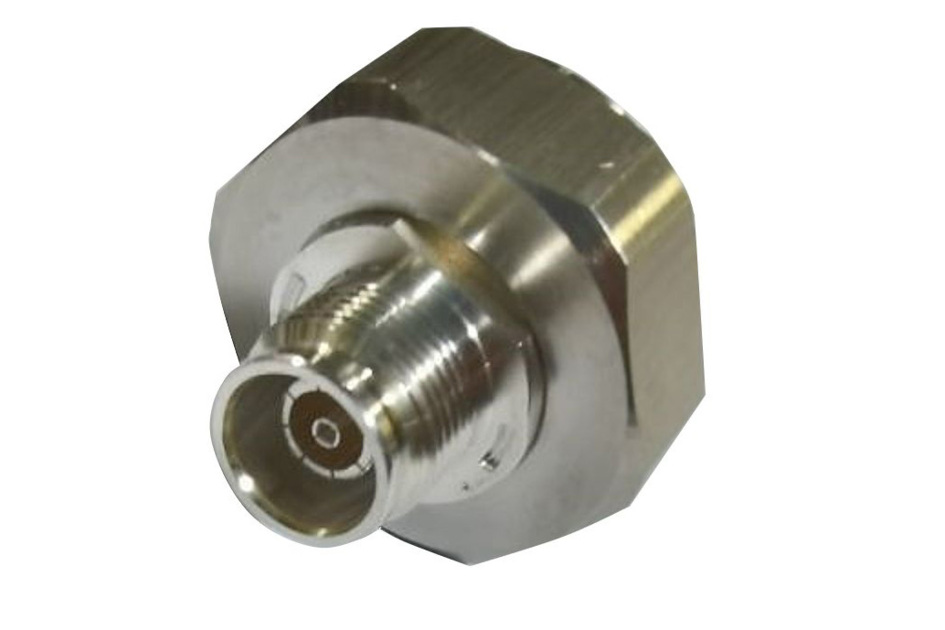

2.2-5 Female to 7-16 DIN Male Low-PIM Adapter
Specifications
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | 2.2-5 Female |
| Interface 2 | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Silver |
Dimensions
| Length | 34 mm | 1.339 in |
| Diameter | 34.6 mm | 1.362 in |

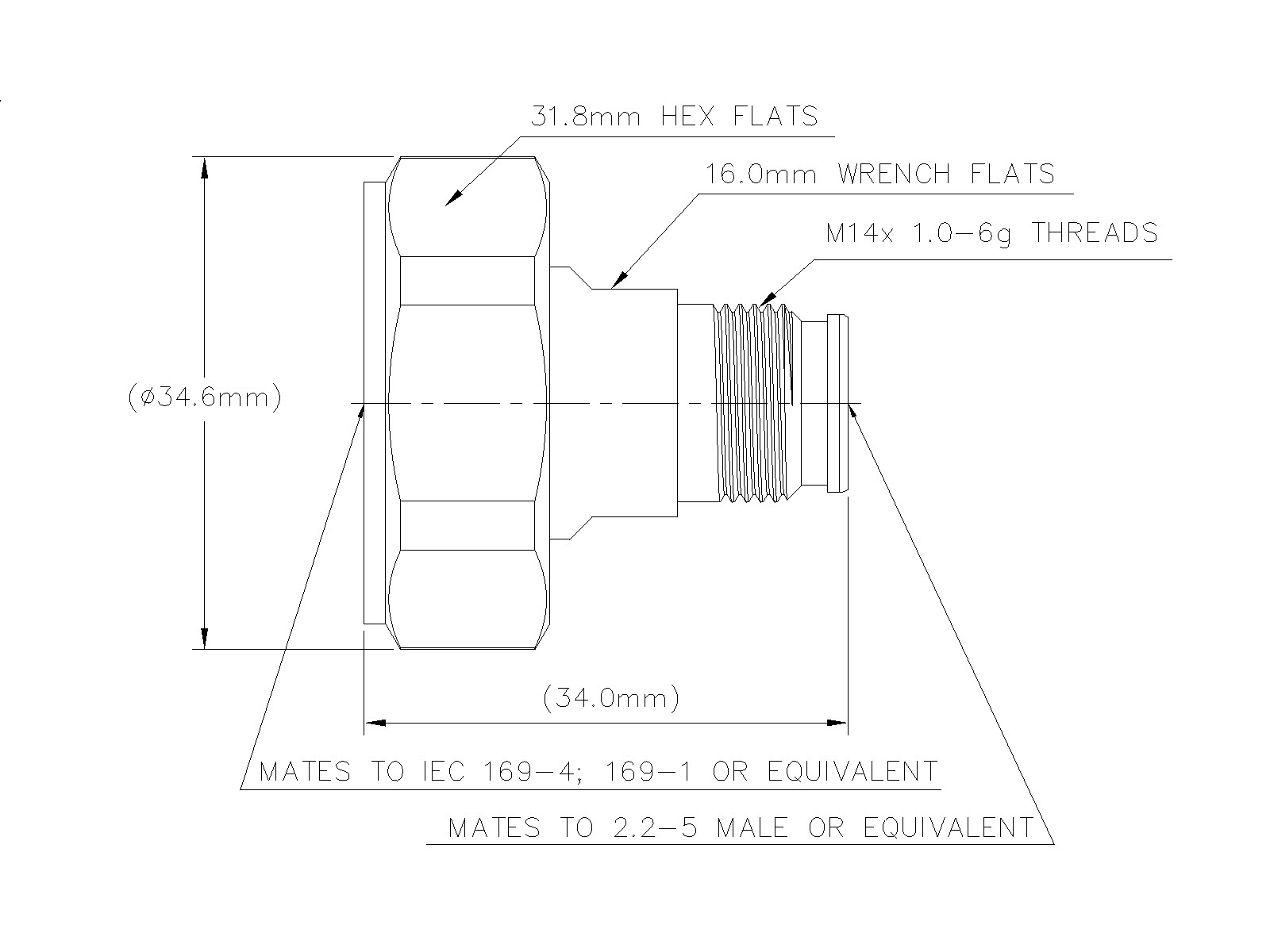

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -165 dBc @ 3500 MHz | -165 dBc @ 800 MHz | -165 dBc @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 3000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–3000 MHz | 1.032 | 36.06 |
| 3000–6000 MHz | 1.083 | 27.99 |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Coupling Nut Proof Torque, Interface 2 | 35 N-m | 309.776 in lb |
| Coupling Nut Retention Force | 200 N | 44.962 lbf |
| Coupling Nut Retention Force, Interface 2 | 100 N | 22.481 lbf |
| Interface Durability | 100 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 67 g | 0.148 lb |
Product classification
| Product Type | Adapter |
General specifications
| Body Style | Straight |
| Inner Contact Plating | Silver |
| Interface | 2.2-5 Female |
| Interface 2 | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Plating | Silver |
Dimensions
| Length | 34 mm | 1.339 in |
| Diameter | 34.6 mm | 1.362 in |
Electrical specifications
| 3rd Order IMD at Frequency | -165 dBc @ 3500 MHz | -165 dBc @ 800 MHz | -165 dBc @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1500 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 3000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.032 | 36.06 |
| 3000–6000 MHz | 1.083 | 27.99 |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Coupling Nut Proof Torque, Interface 2 | 35 N-m | 309.776 in lb |
| Coupling Nut Retention Force | 200 N | 44.962 lbf |
| Coupling Nut Retention Force, Interface 2 | 100 N | 22.481 lbf |
| Interface Durability | 100 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Climatic Sequence Test Method | IEC 60068-1 |
| Corrosion Test Method | IEC 60068-2-11 |
| Damp Heat Steady State Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 67 g | 0.148 lb |
| Click on image to enlarge. |
