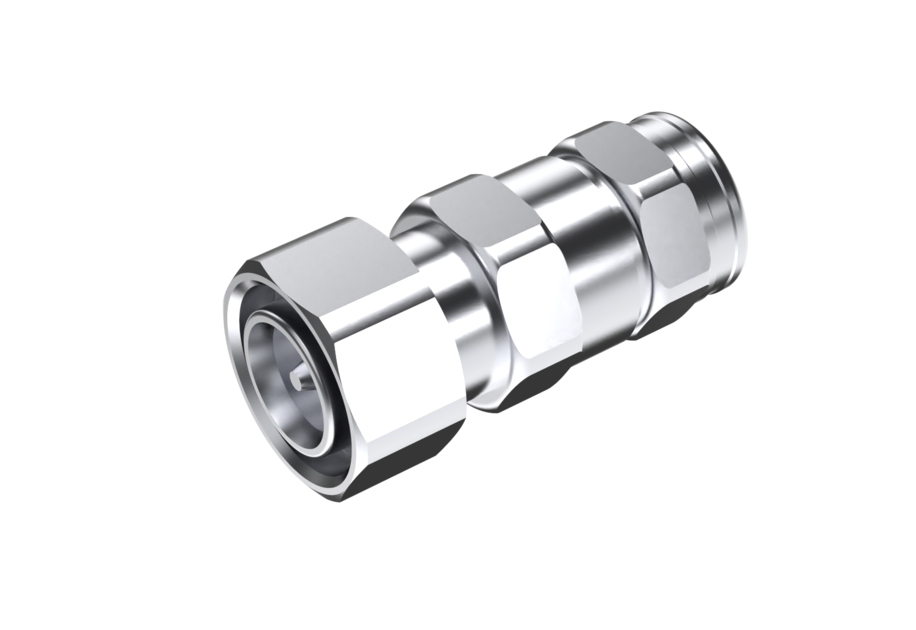

F4HM-F
4.3-10 Male for 1/2 in FSJ4-50B cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ4-50B | FSJ4RK-50B |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Body Style | Straight |
| Cable Family | FSJ4-50B |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 47.5 mm | 1.870 in |
| Diameter | 24 mm | 0.945 in |
| Nominal Size | 1/2 in |

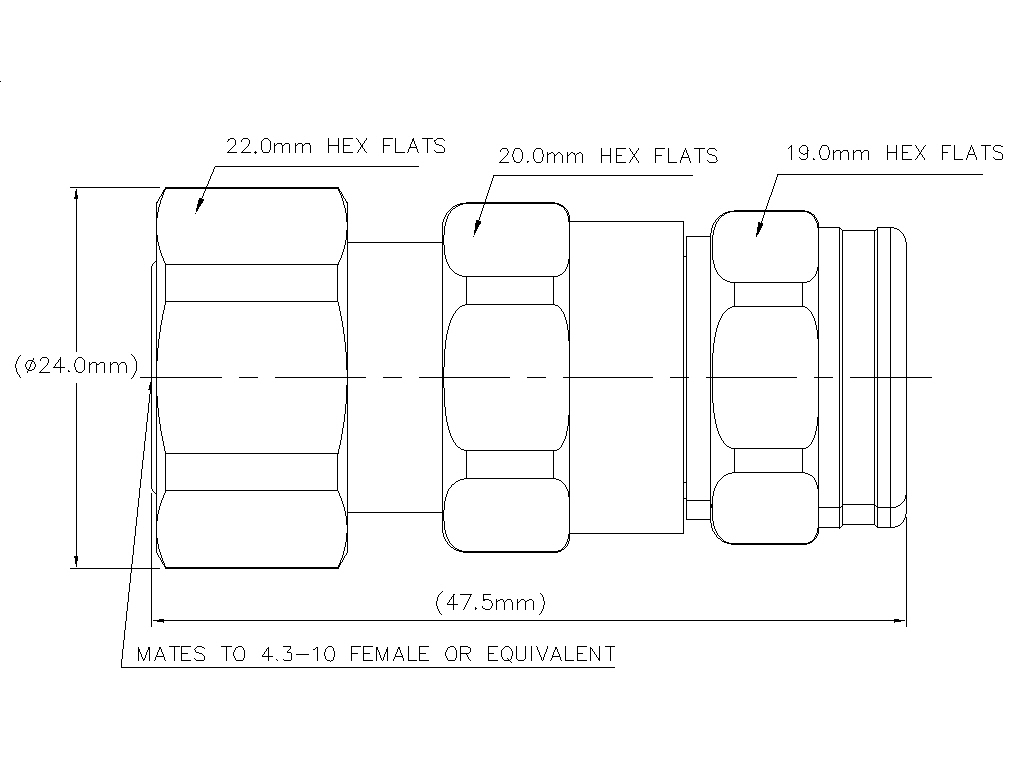

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -116 dBm @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 600.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 22.5 kW |
| RF Operating Voltage, maximum (vrms) | 884 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) | Gated vswr | Gated return loss (db) | Vswr, typical | Return loss, typical (db) |
| 0–3000 MHz | 1.101 | 26.40 | 1.032 | 36.00 | ||
| 3000–4000 MHz | 1.253 | 19.00 | 1.041 | 34.00 | ||
| 4000–5000 MHz | 1.253 | 19.00 | 1.065 | 30.00 | ||
| 5000–6000 MHz | 1.253 | 19.00 | 1.106 | 26.00 | ||
| 6000–8800 MHz | 1.253 | 19.00 | 1.577 | 13.00 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 445 N | 100.040 lbf |
| Connector Retention Torque | 2.5 N-m | 22.127 in lb |
| Coupling Nut Proof Torque | 10 N-m | 88.507 in lb |
| Coupling Nut Retention Force | 449.27 N | 101.000 lbf |
| Insertion Force | 66.72 N | 14.999 lbf |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -45 °C to +85 °C (-49 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 248.920 mm | 9.8 in |
| Width, packed | 266.700 mm | 10.5 in |
| Length, packed | 266.700 mm | 10.5 in |
| Packaging quantity | 50 |
| Weight, net | 72.69 g | 0.160 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ4-50B | FSJ4RK-50B |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Body Style | Straight |
| Cable Family | FSJ4-50B |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 47.5 mm | 1.870 in |
| Diameter | 24 mm | 0.945 in |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD at Frequency | -116 dBm @ 900 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 600.0 W @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Impedance | 50 ohm |
| Inner Contact Resistance, maximum | 1 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 8800 MHz |
| Outer Contact Resistance, maximum | 1 mOhm |
| Peak Power, maximum | 22.5 kW |
| RF Operating Voltage, maximum (vrms) | 884 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) | Gated VSWR | Gated Return Loss (dB) | VSWR, typical | Return Loss, typical (dB) |
| 0–3000 MHz | 1.101 | 26.40 | 1.032 | 36.00 | ||
| 3000–4000 MHz | 1.253 | 19.00 | 1.041 | 34.00 | ||
| 4000–5000 MHz | 1.253 | 19.00 | 1.065 | 30.00 | ||
| 5000–6000 MHz | 1.253 | 19.00 | 1.106 | 26.00 | ||
| 6000–8800 MHz | 1.253 | 19.00 | 1.577 | 13.00 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 445 N | 100.040 lbf |
| Connector Retention Torque | 2.5 N-m | 22.127 in lb |
| Coupling Nut Proof Torque | 10 N-m | 88.507 in lb |
| Coupling Nut Retention Force | 449.27 N | 101.000 lbf |
| Insertion Force | 66.72 N | 14.999 lbf |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -45 °C to +85 °C (-49 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 248.920 mm | 9.8 in |
| Width, packed | 266.700 mm | 10.5 in |
| Length, packed | 266.700 mm | 10.5 in |
| Packaging quantity | 50 |
| Weight, net | 72.69 g | 0.160 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
