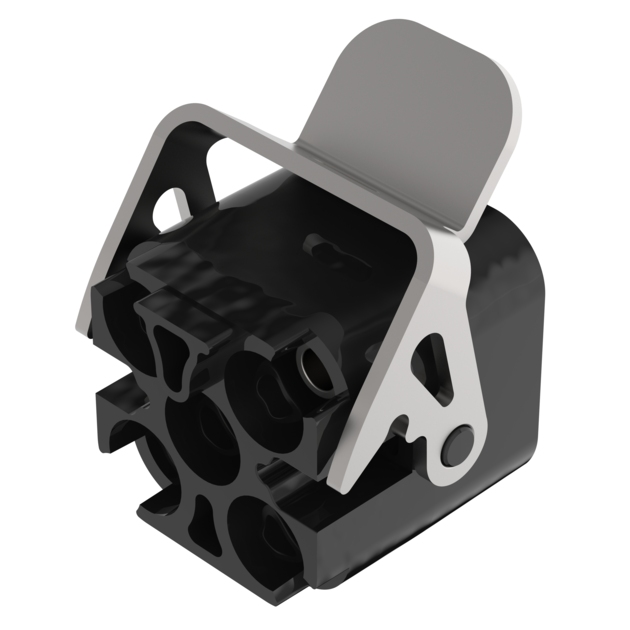

MLOC-CAPKIT
Female End Cap Assembly for MLOC, Quick lock
Specifications
Product classification
| Product Brand | HELIAX® |
| Product Series | MLOC |
General specifications
| Interface | NEX10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 50.9 mm | 2.004 in |
| Width | 39.8 mm | 1.567 in |
| Length | 39 mm | 1.535 in |

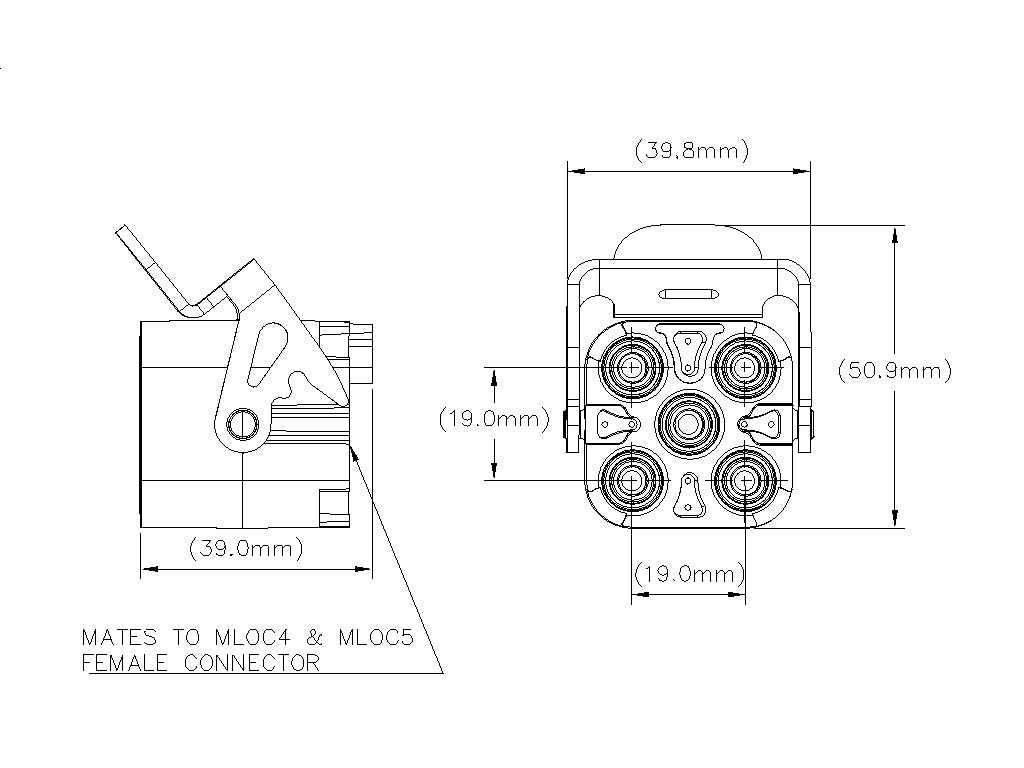

Outline drawing
| Click on image to enlarge. |
Material specifications
| Material Type | Brass | Plastic |
Mechanical specifications
| Interface Durability | 25 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 170.180 mm | 6.7 in |
| Width, packed | 270.002 mm | 10.63 in |
| Length, packed | 270.002 mm | 10.63 in |
| Packaging quantity | 50 |
| Weight, net | 106.4 g | 0.235 lb |
Product classification
| Product Brand | HELIAX® |
| Product Series | MLOC |
General specifications
| Interface | NEX10 Male |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 50.9 mm | 2.004 in |
| Width | 39.8 mm | 1.567 in |
| Length | 39 mm | 1.535 in |
Material specifications
| Material Type | Brass | Plastic |
Mechanical specifications
| Interface Durability | 25 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Height, packed | 170.180 mm | 6.7 in |
| Width, packed | 270.002 mm | 10.63 in |
| Length, packed | 270.002 mm | 10.63 in |
| Packaging quantity | 50 |
| Weight, net | 106.4 g | 0.235 lb |
