F1-XMXM-W-D

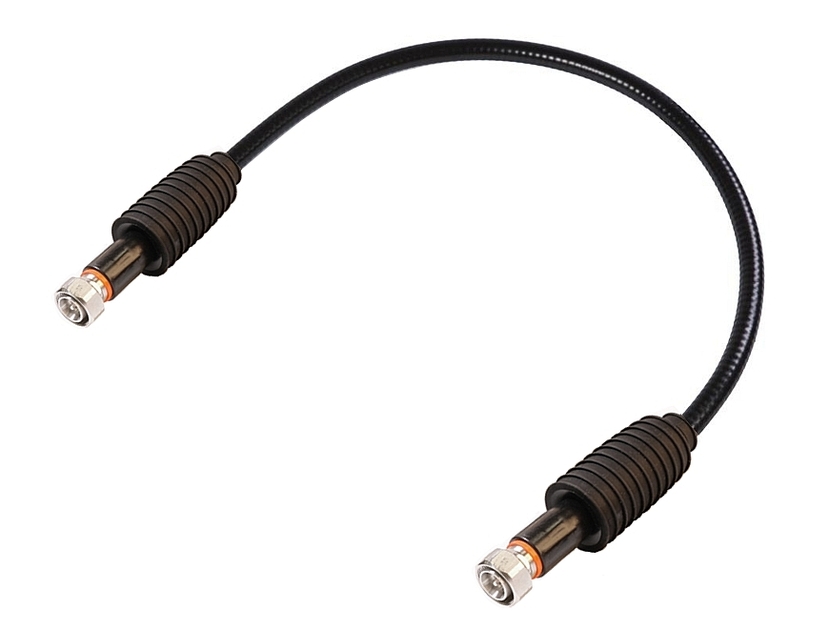

D-CLASS FSJ1-50A SureFlex® Jumper with interface types NEX10 Male and NEX10 Male with HELIAX® SureGuard weatherproofing boot , variable length
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | NEX10 Male |
| Interface, Connector B | NEX10 Male |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths, contact your local ANDREW representative |
Dimensions
| Nominal Size | 1/4 in |
Logo image
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 698–960 MHz | 1.065 | 30.04 |
| 1700–2200 MHz | 1.083 | 27.99 |
| 2500–2700 MHz | 1.106 | 25.96 |
| 3400–3800 MHz | 1.222 | 20.01 |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Weatherproofing Method | HELIAX® SureGuard weatherproofing boot |
Packaging and weights
| Included | Weatherproofing boot |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Wireless transmission cable assembly |
| Product Series | FSJ1-50A |
General specifications
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | NEX10 Male |
| Interface, Connector B | NEX10 Male |
| Specification Sheet Revision Level | A |
| Variable Length | For custom lengths, contact your local ANDREW representative |
Dimensions
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 698–960 MHz | 1.065 | 30.04 |
| 1700–2200 MHz | 1.083 | 27.99 |
| 2500–2700 MHz | 1.106 | 25.96 |
| 3400–3800 MHz | 1.222 | 20.01 |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Weatherproofing Method | HELIAX® SureGuard weatherproofing boot |
Packaging and weights
| Included | Weatherproofing boot |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
