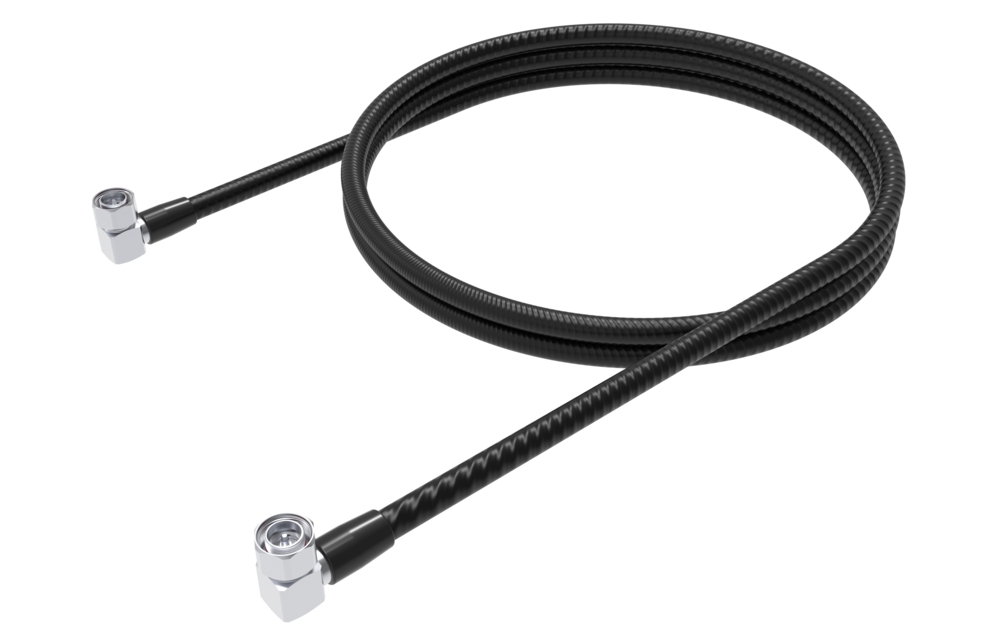

F4A-HPHRHR
HELIAX® 1/2 SureFlex® Jumper with interface types 4.3-10 Male Righ Angle and 4.3-10 Male Righ Angle
Specifications
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Series | RSJ4-50 |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Right angle |
| Body Style, Connector B | Right angle |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 15 |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -119 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers per IEC 62037 |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Series | RSJ4-50 |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Right angle |
| Body Style, Connector B | Right angle |
| Interface, Connector A | 4.3-10 Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Cable Assembly Length Range (m) | 1 – 15 |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -119 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers per IEC 62037 |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
