L4A-NMNR-P
Base product

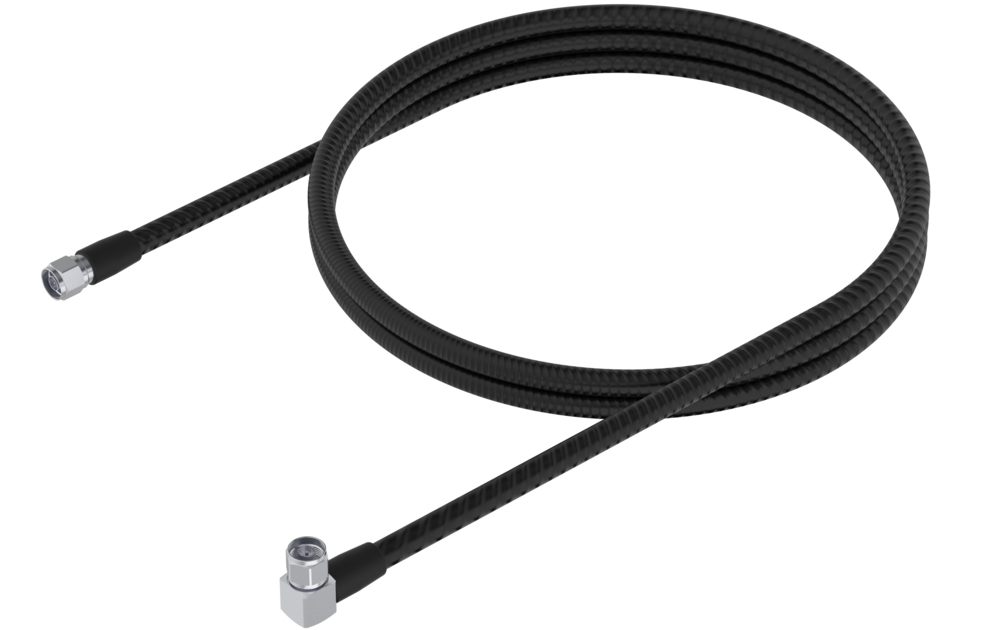

LDF4-50A SureFlex® Jumper with interface types N Male and N Male Right Angle
Specifications
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Right angle |
| Interface, Connector A | N Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |

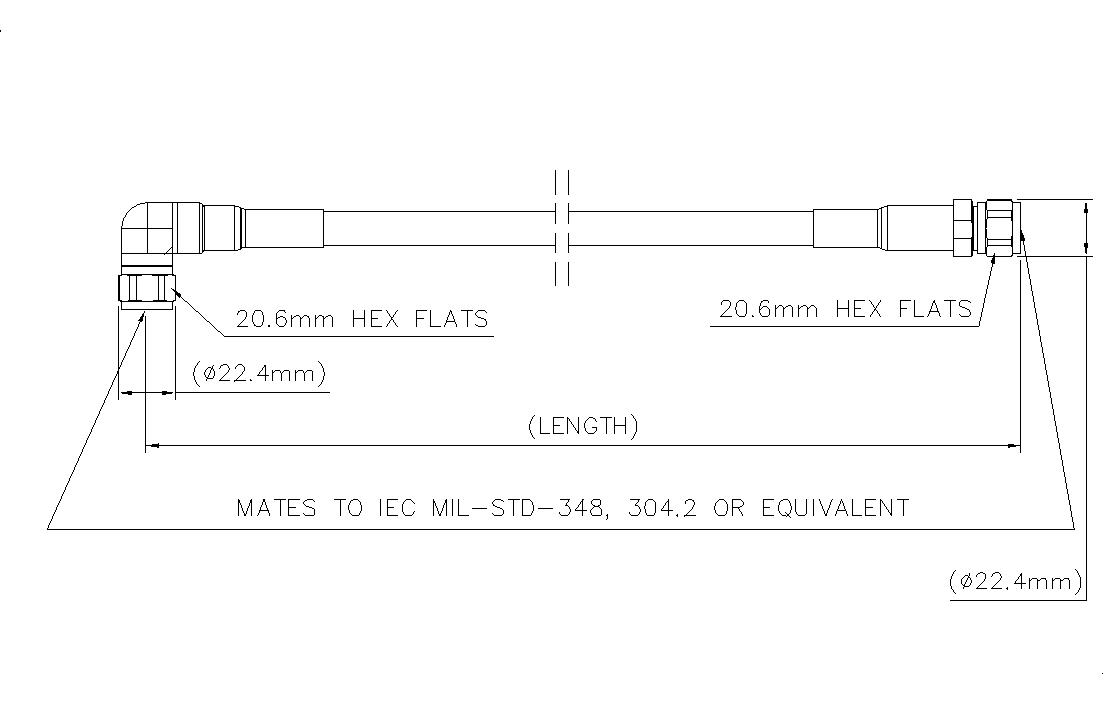

Dimensions
| Cable Assembly Length Range (ft) | 1 – 100 |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers per IEC 62037 |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Jumper assembly sample label
| Click on image to enlarge. |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Right angle |
| Interface, Connector A | N Male |
| Interface, Connector B | N Male |
| Specification Sheet Revision Level | A |
Dimensions
| Cable Assembly Length Range (ft) | 1 – 100 |
| Nominal Size | 1/2 in |
Electrical specifications
| 3rd Order IMD Static | -112 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers per IEC 62037 |
| DTF, Connector A | -34 dB |
| DTF, Connector B | -34 dB |
Environmental specifications
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
