7847185

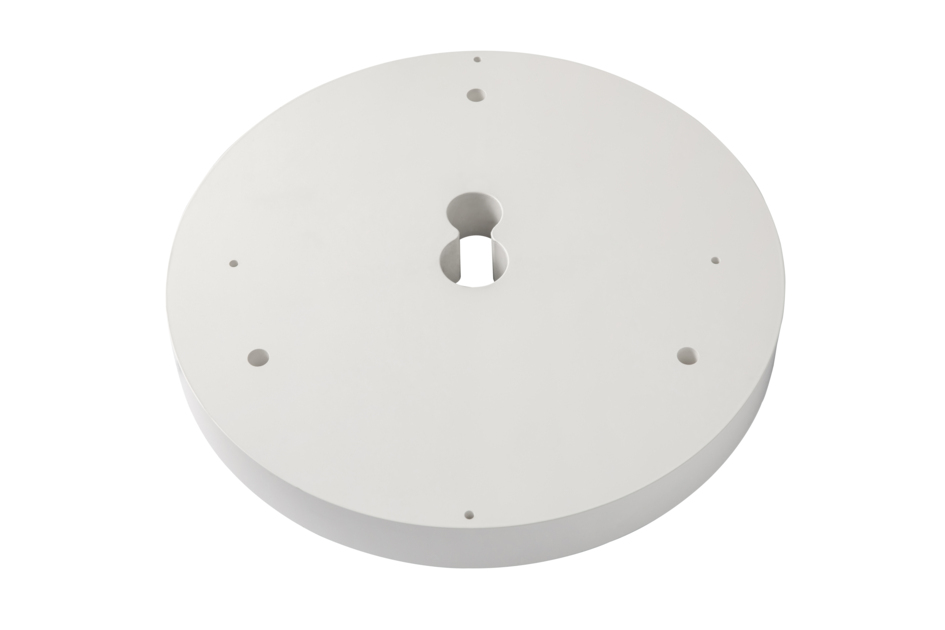

Omni Absorber ground plane to improve VSWR on metal ceilings

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Cover

General specifications

Color White (RAL 9016)

Dimensions

Height 30 mm | 1.181 in
Outer Diameter 267 mm | 10.512 in

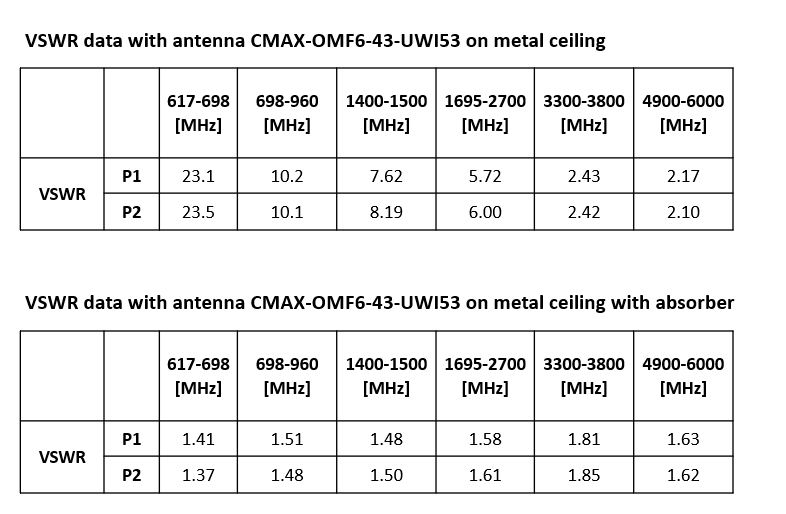

Electrical performance

Click on image to enlarge.

Material specifications

Material Type ASA | PC

Environmental specifications

UV Resistance UV stabilized

Packaging and weights

Height, packed 40 mm | 1.575 in
Width, packed 280 mm | 11.024 in
Length, packed 280 mm | 11.024 in
Packaging quantity 1
Weight, gross 500 g | 1.102 lb
Weight, net 350 g | 0.772 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Cover

General specifications

Color White (RAL 9016)

Dimensions

Height 30 mm | 1.181 in
Outer Diameter 267 mm | 10.512 in

Material specifications

Material Type ASA | PC

Environmental specifications

UV Resistance UV stabilized

Packaging and weights

Height, packed 40 mm | 1.575 in
Width, packed 280 mm | 11.024 in
Length, packed 280 mm | 11.024 in
Packaging quantity 1
Weight, gross 500 g | 1.102 lb
Weight, net 350 g | 0.772 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
