H-3-UW-43-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

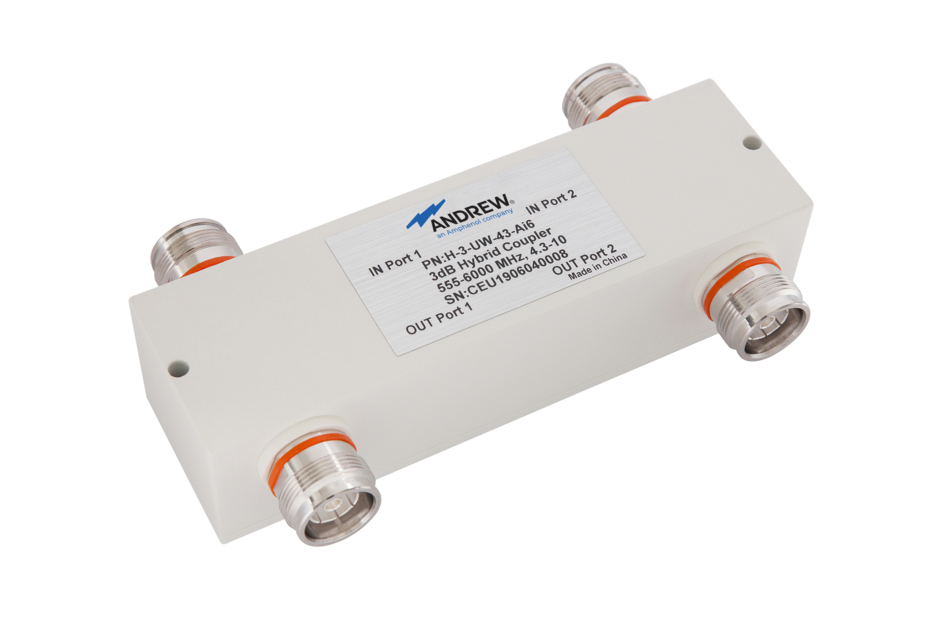

Low PIM Air Dielectric Hybrid Coupler, 555–6000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid coupler |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 36 mm | 1.417 in |
| Width | 79 mm | 3.110 in |
| Length | 145 mm | 5.709 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±0.7dB @ 610-6000 MHz | ±1.1dB @ 555–610 MHz |
| Impedance | 50 ohm |
| Isolation Between Bands | 20 dB |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 500 W |
| VSWR | 1.25 |
Mechanical specifications
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 60 mm | 2.362 in |
| Width, packed | 105 mm | 4.134 in |
| Length, packed | 170 mm | 6.693 in |
| Weight, gross | 0.64 kg | 1.411 lb |
| Weight, net | 0.57 kg | 1.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Hybrid coupler |
General specifications
| Device Type | Hybrid |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 36 mm | 1.417 in |
| Width | 79 mm | 3.110 in |
| Length | 145 mm | 5.709 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power, maximum | 200 W |
| Coupling | 3.1 dB |
| Coupling Tolerance | ±0.7dB @ 610-6000 MHz | ±1.1dB @ 555–610 MHz |
| Impedance | 50 ohm |
| Isolation Between Bands | 20 dB |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 500 W |
| VSWR | 1.25 |
Mechanical specifications
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 60 mm | 2.362 in |
| Width, packed | 105 mm | 4.134 in |
| Length, packed | 170 mm | 6.693 in |
| Weight, gross | 0.64 kg | 1.411 lb |
| Weight, net | 0.57 kg | 1.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
