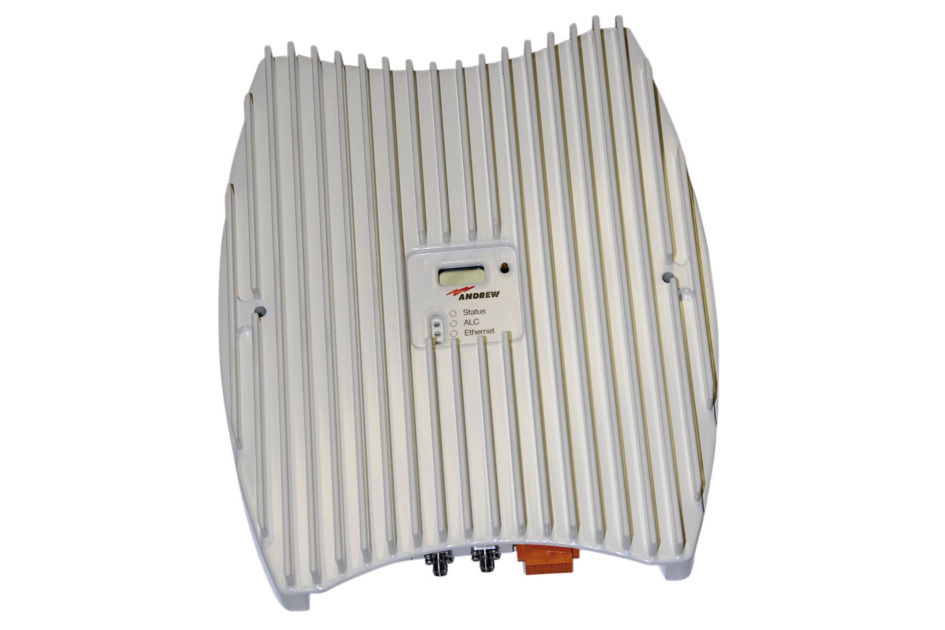

7613614 | MR418 380-385 390-395
Base product: MR-REPEATERS
Indoor Coverage for 400 MHz TETRA and Tetrapol Applications
Specifications
Product classification
| Product Type | RF repeater unit |
General specifications
| Antenna Interface at Repeater | SMA Female |
| Indoor Antenna | Optional, not included |
| Optional Antenna Gain | 2 dBi |
| Optional Antenna Type | Omni |
| Optional Modem Type | External GSM |
| Performance Note | Values typical, unless otherwise stated |
| Supervision/Control Option | Heartbeat via SMS | Remote control |
Dimensions
| Height | 270 mm | 10.63 in |
| Width | 240 mm | 9.449 in |
| Depth | 45 mm | 1.772 in |
| Optional Antenna Length | 165 mm | 6.496 in |
Electrical specifications
| Gain, typical | 70 dB |
| Gain Adjustment Range | 30 dB |
| License Band | TETRA | Tetrapol |
| Local Power | 6 Vdc |
| Mains Power | 100–240 Vac |
| Return Loss | 10 dB |
| Power Consumption | 25 W |
| Electrical Compliance | ETSI TS 101 789-1 |
Electrical specifications, rx (uplink)
| Operating Frequency Band | 380 – 385 MHz | 410 – 415 MHz | 415 – 420 MHz |
| Output Power @ One Carrier | 19 dBm |
| Output Power @ Two Carriers | 16 dBm |
Electrical specifications, tx (downlink)
| Operating Frequency Band | 390 – 395 MHz | 420 – 425 MHz | 425 – 430 MHz |
| Output Power @ One Carrier | 19 dBm |
| Output Power @ Two Carriers | 16 dBm |
Environmental specifications
| Operating Temperature | +5 °C to +40 °C (+41 °F to +104 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and weights
| Weight, net | 3.2 kg | 7.055 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | RF repeater unit |
General specifications
| Antenna Interface at Repeater | SMA Female |
| Indoor Antenna | Optional, not included |
| Optional Antenna Gain | 2 dBi |
| Optional Antenna Type | Omni |
| Optional Modem Type | External GSM |
| Performance Note | Values typical, unless otherwise stated |
| Supervision/Control Option | Heartbeat via SMS | Remote control |
Dimensions
| Height | 270 mm | 10.63 in |
| Width | 240 mm | 9.449 in |
| Depth | 45 mm | 1.772 in |
| Optional Antenna Length | 165 mm | 6.496 in |
Electrical specifications
| Gain, typical | 70 dB |
| Gain Adjustment Range | 30 dB |
| License Band | TETRA | Tetrapol |
| Local Power | 6 Vdc |
| Mains Power | 100–240 Vac |
| Return Loss | 10 dB |
| Power Consumption | 25 W |
| Electrical Compliance | ETSI TS 101 789-1 |
Electrical specifications, rx (uplink)
| Operating Frequency Band | 380 – 385 MHz | 410 – 415 MHz | 415 – 420 MHz |
| Output Power @ One Carrier | 19 dBm |
| Output Power @ Two Carriers | 16 dBm |
Electrical specifications, tx (downlink)
| Operating Frequency Band | 390 – 395 MHz | 420 – 425 MHz | 425 – 430 MHz |
| Output Power @ One Carrier | 19 dBm |
| Output Power @ Two Carriers | 16 dBm |
Environmental specifications
| Operating Temperature | +5 °C to +40 °C (+41 °F to +104 °F) |
| Ingress Protection Test Method | IEC 60529:2001, IP30 |
Packaging and weights
| Weight, net | 3.2 kg | 7.055 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
