OC-10B0-001 | BC-W2001-CMU CONTROLLER MODULE UNIT

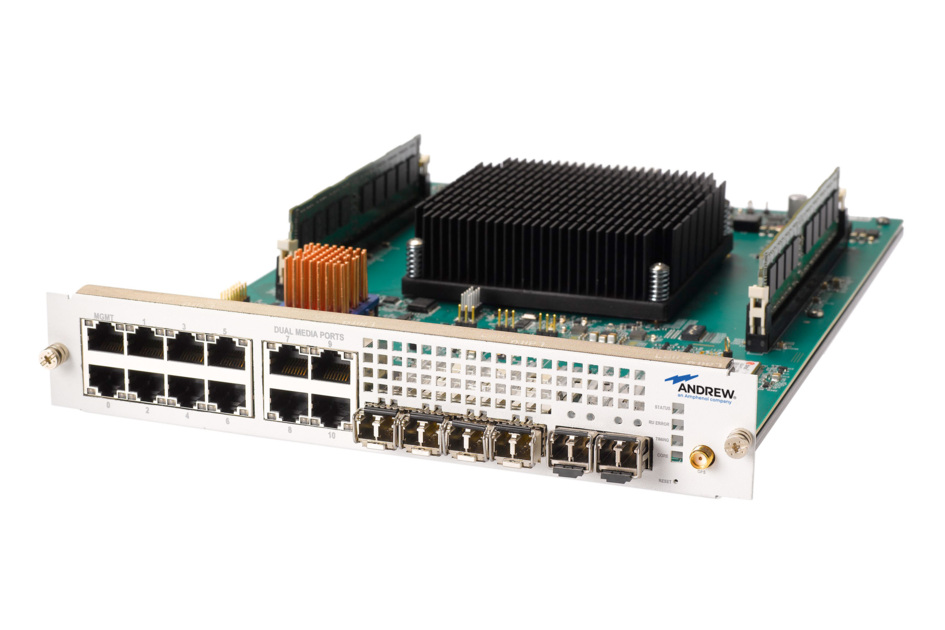

ONECELL® Baseband Controller 2000 Controller Module.
Features and benefits
- Pooled baseband processing with centralized scheduler
- Smart Reuse for multi-sector throughput without border handovers or interference
- Single PCI across multiple Radio Points
- Joint Transmission and Reception
- No borders or handovers within controller
Specifications
Product classification
| Product Type | Controller unit |
| Product Brand | ONECELL® |
General specifications
| Technology | LTE MIMO |
| Application | LTE delivery for public venues and large enterprises |
| Backhaul Interface | Enterprise broadband connection fiber, cable or DSL |
| Backhaul Security | IKEv2/IPSec with certificate mutual authentication |
| Boot and Storage Security | Secure Boot, Secure Storage (TrE) |
| Cell Virtualization Reuse Factor | Up to 4 virtual cells per physical cell, depending on channel bandwidth, deployment topology and usage. |
| Controller to RP Management Security | HTTPS/SSL PSK |
| Core Network Interface | S1-MME & S1-U |
| Coverage Area | Up to 1,000,000 square feet |
| Coverage Area Note | Depending on frequency bands, channel bandwidth and building characteristics |
| DMS to Controller Management Security | HTTPS/SSL (cert) |
| Fronthaul and OTA Security | PDCP ciphering |
| Fronthaul Interface | IP Ethernet LAN |
| Modulation Type | DL: QPSK, 16QAM, 64QAM | UL: QPSK, 16QAM |
| Note | Two controller modules fit into one 1RU 19-inch chassis |
| Physical Interface | 2x 10 GigE SFP+ Optical or Electrical | 4x GigE SFP Optical or Electrical | 7x GigE Electrical (10/100/1000) |
| Simultaneous RRC Connected Users | 512 |
| Timing and Synchronization | GPS via SMA connector | IEEE 1588 v2 PTP |
| Virtual Sectors and Systems, maximum | 4 |
Dimensions
| Height | 44 mm | 1.732 in |
| Width | 242 mm | 9.528 in |
| Depth | 476 mm | 18.74 in |
Electrical specifications
| Input Current, maximum, specific | .85 A | 1.7 A |
| Input Voltage Range | 120/230 Vac - 50/60 Hz |
| Electrical Safety Standard | IEC 60950-1 Second Edition |
| Electromagnetic Compatibility (EMC) | 47CFR Part 15 (CFR 47) Class A | EN 55022, 2010/AC:2011 Class A | EN 55024, 2010 ITE | ICES-003, Issue 5 Class A |
| Power Consumption | 100 W |
Mechanical specifications
| Transportation Vibration Standard | ISTA-3A |
Environmental specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Packaging and weights
| Weight, net | 5.9 kg | 13.007 lb |
Regulatory compliance/certifications
| Agency | Classification |
UKCA
|
United Kingdom Conformity Assessed for products placed on the market in England, Wales and Scotland |
Product classification
| Product Type | Controller unit |
| Product Brand | ONECELL® |
General specifications
| Technology | LTE MIMO |
| Application | LTE delivery for public venues and large enterprises |
| Backhaul Interface | Enterprise broadband connection fiber, cable or DSL |
| Backhaul Security | IKEv2/IPSec with certificate mutual authentication |
| Boot and Storage Security | Secure Boot, Secure Storage (TrE) |
| Cell Virtualization Reuse Factor | Up to 4 virtual cells per physical cell, depending on channel bandwidth, deployment topology and usage. |
| Controller to RP Management Security | HTTPS/SSL PSK |
| Core Network Interface | S1-MME & S1-U |
| Coverage Area | Up to 1,000,000 square feet |
| Coverage Area Note | Depending on frequency bands, channel bandwidth and building characteristics |
| DMS to Controller Management Security | HTTPS/SSL (cert) |
| Fronthaul and OTA Security | PDCP ciphering |
| Fronthaul Interface | IP Ethernet LAN |
| Modulation Type | DL: QPSK, 16QAM, 64QAM | UL: QPSK, 16QAM |
| Note | Two controller modules fit into one 1RU 19-inch chassis |
| Physical Interface | 2x 10 GigE SFP+ Optical or Electrical | 4x GigE SFP Optical or Electrical | 7x GigE Electrical (10/100/1000) |
| Simultaneous RRC Connected Users | 512 |
| Timing and Synchronization | GPS via SMA connector | IEEE 1588 v2 PTP |
| Virtual Sectors and Systems, maximum | 4 |
Dimensions
| Height | 44 mm | 1.732 in |
| Width | 242 mm | 9.528 in |
| Depth | 476 mm | 18.74 in |
Electrical specifications
| Input Current, maximum, specific | .85 A | 1.7 A |
| Input Voltage Range | 120/230 Vac - 50/60 Hz |
| Electrical Safety Standard | IEC 60950-1 Second Edition |
| Electromagnetic Compatibility (EMC) | 47CFR Part 15 (CFR 47) Class A | EN 55022, 2010/AC:2011 Class A | EN 55024, 2010 ITE | ICES-003, Issue 5 Class A |
| Power Consumption | 100 W |
Mechanical specifications
| Transportation Vibration Standard | ISTA-3A |
Environmental specifications
| Operating Temperature | 0 °C to +40 °C (+32 °F to +104 °F) |
Packaging and weights
| Weight, net | 5.9 kg | 13.007 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
UKCA
|
United Kingdom Conformity Assessed for products placed on the market in England, Wales and Scotland |
