S8B0-D8-A00D00-00 | CMC8S
- Available in:
- Latin America
- North America

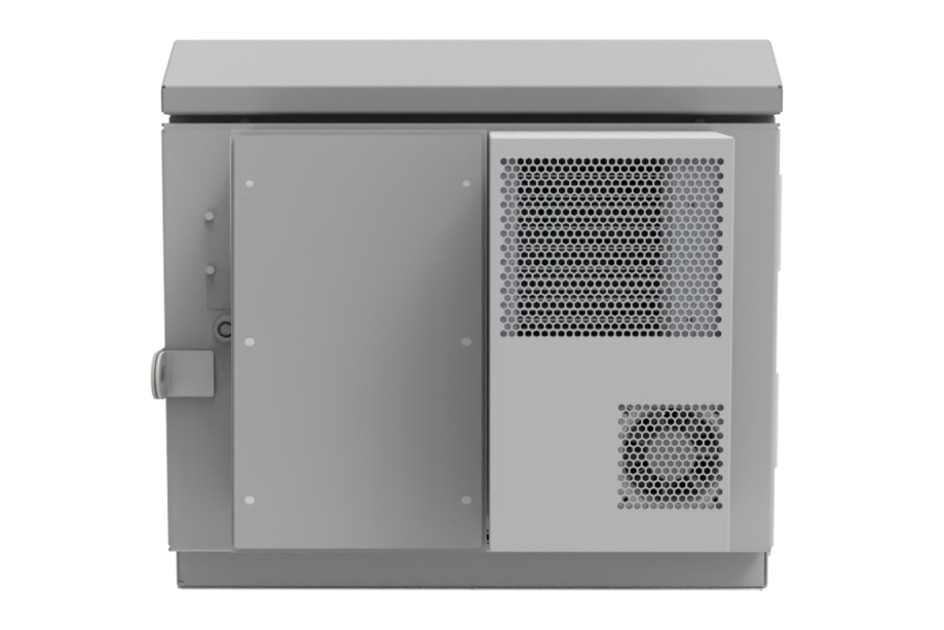

Empty CMC8S 1x 300W HVAC, 1x 300W Heater, Outdoor Equipment Cabinet
Features and benefits
The cabinet is designed to house rack mounted equipment. This includes DC power systems, Fiber storage/splice trays, cell site routers, batteries, and other rack mounted equipment. This cabinet provides mechanical and environmental protection for the equipment inside.
- Excellent Thermal Performance with a HVAC
- Provides mounting space for power distribution, network servers, batteries, or other equipment.
- Front door compatible with Pad Lock.
- Provides flexible access for the cable entrances.
- One built-in 300w heater for cold environments.
- Optional battery tray (Integration Program only)
- Provides 8RU of 19” Rack Space for Equipment
- Common parts available across the same platform.
- Additional options available through our Integration Program - For more information, consult local sales manager for details
Specifications
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Micro cell site enclosure |
| Product Series | CMC |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Access | Front door | Removable panel |
| Alarm Type | Door alarm | HVAC alarms (including high temperature, failure) | S2 module, 20P or standard and user defined alarms |
| Color | Light Gray (RAL 7035) |
| Cooling | Air conditioned |
| Door Security | Hasp and staple |
| Door Type, front | Hinged | Turn latch |
| Grounding Connection | Standard |
| Mounting | H-frame | Pad | Plinth | Universal pole mount | Universal wall mount |
| Noise Emission, maximum | 65 dBA |
| Power Supply Compatibility | 6302 |
| Rack Type | EIA 19 in |
| Rack Units | 8 |
Dimensions
| Height | 635.000 mm | 25 in |
| Width | 609.6 mm | 24 in |
| Width, Battery | 0.000 mm | 0 in |
| Width, Battery Compartment | 0.000 mm | 0 in |
| Depth | 609.600 mm | 24 in |

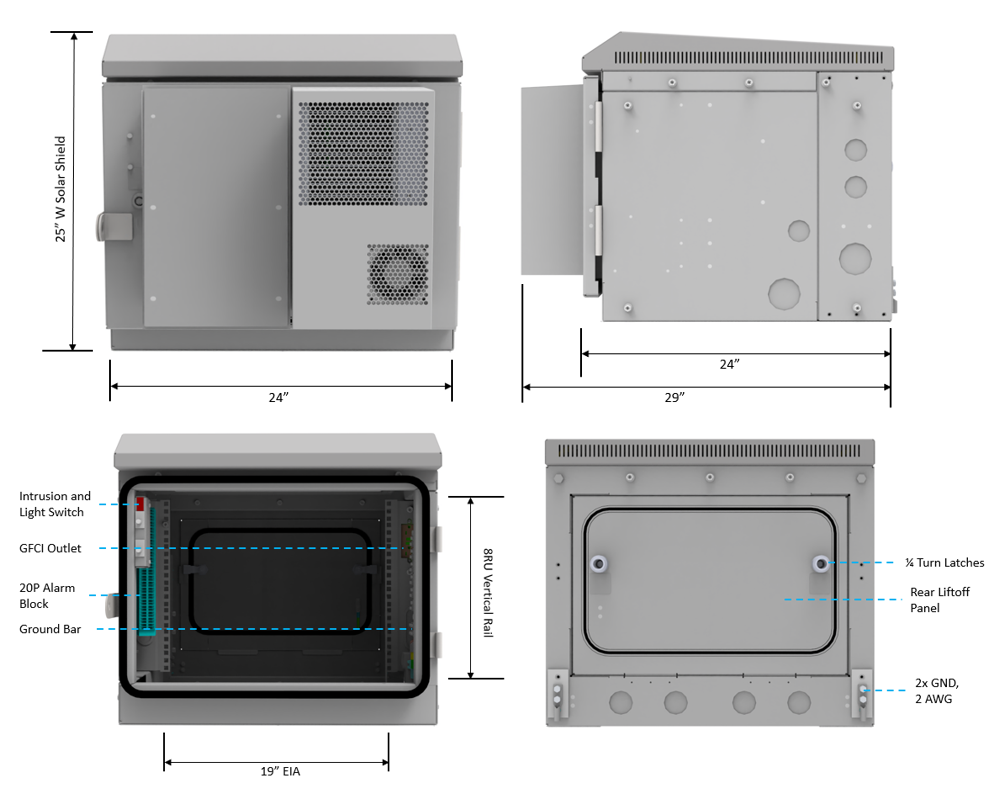

Dimension drawing
| Click on image to enlarge. |
Electrical specifications
| Alarm Output | Dry contacts |
| Cooling Capacity | 300 W |
| dc Distribution Type | 19” Rack DC Distribution Panels or DIN Breakers |
| Voltage | -48 Vdc |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
Environmental specifications
| Operating Temperature | -40 °C to +46 °C (-40 °F to +115 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Above ground | Outdoor | UV resistant for outdoor | Wireless installation |
| Qualification Standards | GR-3108 class 4 | IP55 | NEMA, Type 4 | Telcordia GR-1089-CORE | Telcordia GR-487 | UL/ETL Type 3R |
| Safety Standard | UL | cUL |
| Thermal Compliance | GR-487 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 47.627 kg | 105 lb |
Product classification
| Regional Availability | Latin America | North America |
| Product Type | Micro cell site enclosure |
| Product Series | CMC |
| Warranty | For more information, please consult our Product Warranty guidelines |
General specifications
| Access | Front door | Removable panel |
| Alarm Type | Door alarm | HVAC alarms (including high temperature, failure) | S2 module, 20P or standard and user defined alarms |
| Color | Light Gray (RAL 7035) |
| Cooling | Air conditioned |
| Door Security | Hasp and staple |
| Door Type, front | Hinged | Turn latch |
| Grounding Connection | Standard |
| Mounting | H-frame | Pad | Plinth | Universal pole mount | Universal wall mount |
| Noise Emission, maximum | 65 dBA |
| Power Supply Compatibility | 6302 |
| Rack Type | EIA 19 in |
| Rack Units | 8 |
Dimensions
| Height | 635.000 mm | 25 in |
| Width | 609.6 mm | 24 in |
| Width, Battery | 0.000 mm | 0 in |
| Width, Battery Compartment | 0.000 mm | 0 in |
| Depth | 609.600 mm | 24 in |
Electrical specifications
| Alarm Output | Dry contacts |
| Cooling Capacity | 300 W |
| dc Distribution Type | 19” Rack DC Distribution Panels or DIN Breakers |
| Voltage | -48 Vdc |
Material specifications
| Finish | Powder coated | UV resistant |
| Material Type | Aluminum |
Environmental specifications
| Operating Temperature | -40 °C to +46 °C (-40 °F to +115 °F) |
| Storage Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | Above ground | Outdoor | UV resistant for outdoor | Wireless installation |
| Qualification Standards | GR-3108 class 4 | IP55 | NEMA, Type 4 | Telcordia GR-1089-CORE | Telcordia GR-487 | UL/ETL Type 3R |
| Safety Standard | UL | cUL |
| Thermal Compliance | GR-487 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 47.627 kg | 105 lb |
| Click on image to enlarge. |
