SA-1C

Base product: STAND-OFF-ADAPTER-SERIES

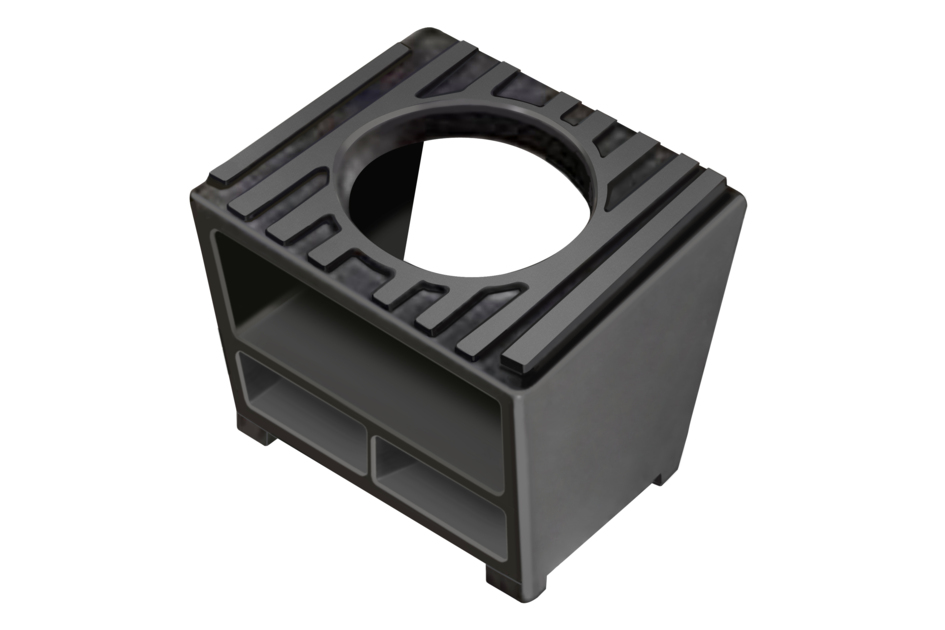

PIM-Guard®, Single-Way Snap-in Stand-off Adapter has a two slots for round member attachment. It includes one 3/4" hole for Snap-in hangers, supporting three stacks for 4-17mm or two stacks for 26-40mm cables

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Stand-off mount
Product Brand PIM-Guard®
Ordering Note ANDREW® standard product (Global)

General specifications

Adapter Type Stand-off adapter
Color Black
Mounting 3/4 in through hole | Round member

Dimensions

Inside Height 29.21 mm | 1.15 in
Outside Width 29.972 mm | 1.18 in
Outside Length 34.29 mm | 1.35 in

Material specifications

Material Type Engineered polymer

Mechanical specifications

Maximum Loading Triple stack for hangers SSH-47, SSH-710, SSH-1014, SSH-1416, SSH-411, SSH-1117
Vibration Survival ≥4 hours at resonant frequency

Environmental specifications

Operating Temperature -40 ºC to +85 ºC (-40 ºF to +185 ºF)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours

Packaging and weights

Height, packed 17 cm | 6.693 in
Width, packed 13 cm | 5.118 in
Length, packed 10 cm | 3.937 in
Packaging quantity 10
Weight, gross 0.15 kg | 0.331 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type Stand-off mount
Product Brand PIM-Guard®
Ordering Note ANDREW® standard product (Global)

General specifications

Adapter Type Stand-off adapter
Color Black
Mounting 3/4 in through hole | Round member

Dimensions

Inside Height 29.21 mm | 1.15 in
Outside Width 29.972 mm | 1.18 in
Outside Length 34.29 mm | 1.35 in

Material specifications

Material Type Engineered polymer

Mechanical specifications

Maximum Loading Triple stack for hangers SSH-47, SSH-710, SSH-1014, SSH-1416, SSH-411, SSH-1117
Vibration Survival ≥4 hours at resonant frequency

Environmental specifications

Operating Temperature -40 ºC to +85 ºC (-40 ºF to +185 ºF)
Environmental Strength Capability Double cable weight
UV Resistance, minimum with no degradation ≥1000 hours

Packaging and weights

Height, packed 17 cm | 6.693 in
Width, packed 13 cm | 5.118 in
Length, packed 10 cm | 3.937 in
Packaging quantity 10
Weight, gross 0.15 kg | 0.331 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
