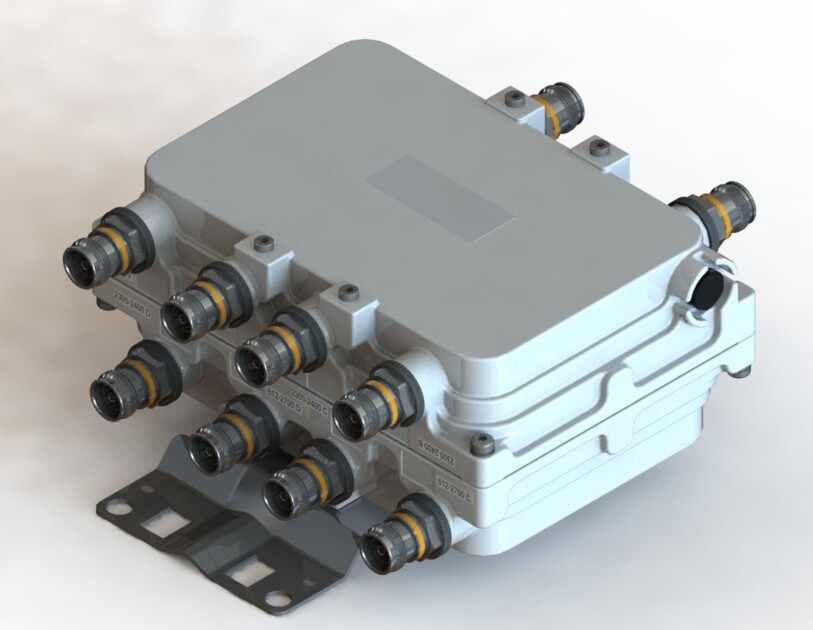

E14F06P99
Quad Diplxer 612-2700/2300 DC/AISG bypass on all ports
Features and benefits
- Industry leading PIM performance
- New 4.3-10 connectors for improved PIM performance and size reduction
- Designed for network modernization application, introduction of LTE 4x4 MIMO
- Designed for network Modernization, introduction of LTE2300 on existing site
Specifications
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 154 mm | 6.063 in |
| Width | 219 mm | 8.622 in |
| Depth | 95 mm | 3.740 in |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 | IMT 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | Port 612-22002496 to 2700 MHz | Port 2300 to 2400 MHz |
| License Band | APT 700, Band Pass CEL 850, Band Pass CEL 900, Band Pass DCS 1800, Band Pass IMT 2100, Band Pass IMT 2600, Band Pass USA 600, Band Pass | TDD 2300, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2300–2400 | 612–22002496–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 48 | 44 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 |
| 3rd Order PIM, typical, dBc | -155 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Volume | 3.3 L |
| Weight, net | 4.9 kg | 10.803 lb |
| Weight, without mounting hardware | 4.7 kg | 10.362 lb |
Product classification
| Product Type | Diplexer |
General specifications
| Color | Gray |
| Modularity | 4-Quad |
| Mounting Pipe Hardware | Band clamps |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 154 mm | 6.063 in |
| Width | 219 mm | 8.622 in |
| Depth | 95 mm | 3.740 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | APT 700 | CEL 850 | CEL 900 | DCS 1800 | IMT 2100 | IMT 2600 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through, combiner | Branch 1 | Branch 2 |
| dc/AISG Pass-through, demultiplexer | Branch 1 | Branch 2 |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
Electrical specifications
| Sub-module | 1 | 2 | 1 | 2 |
| Branch | 1 | 2 |
| Port Designation | Port 612-2200;2496 to 2700 MHz | Port 2300 to 2400 MHz |
| License Band | APT 700, Band Pass; CEL 850, Band Pass; CEL 900, Band Pass; DCS 1800, Band Pass; IMT 2100, Band Pass; IMT 2600, Band Pass; USA 600, Band Pass | TDD 2300, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 2300–2400 | 612–2200;2496–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 |
| Return Loss, typical, dB | 20 | 20 |
| Isolation, typical, dB | 48 | 44 |
| Input Power, RMS, maximum, W | 200 | 200 |
| Input Power, PEP, maximum, W | 1,500 | 1,500 |
| 3rd Order PIM, typical, dBc | -155 | |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Environmental Test Method | ETSI EN 300 019-1-4 |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Volume | 3.3 L |
| Weight, net | 4.9 kg | 10.803 lb |
| Weight, without mounting hardware | 4.7 kg | 10.362 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
