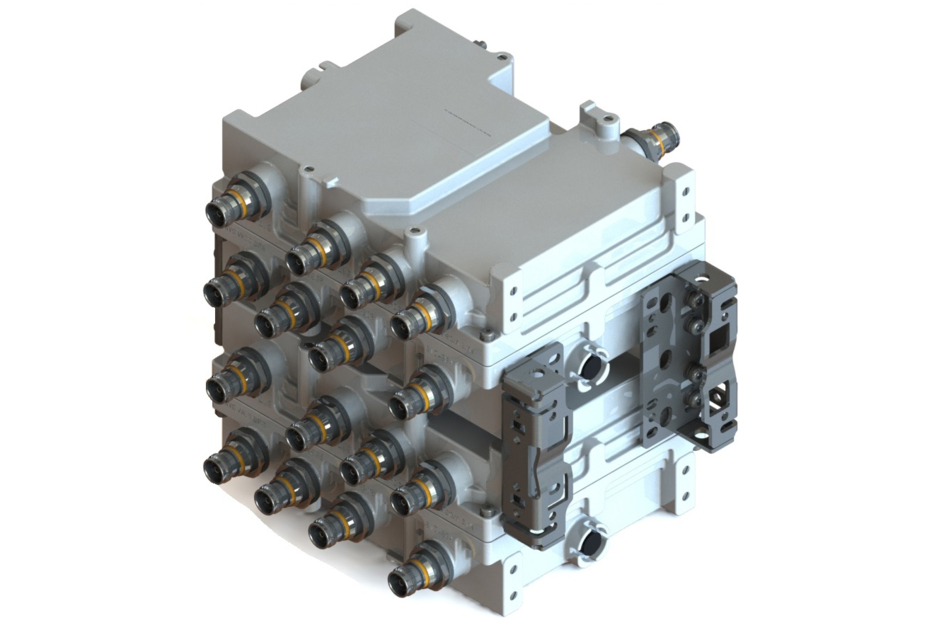

CQX681926Q-DS-43 | E14F15P22
Quad Quadplexer, 600/800/PCS/AWS+WCS+BRS, DC Sense, 4.3-10
Features and benefits
- BTS-to-feeder and feeder-to-antenna application
- Automatic dc switching with dc sense
- Convertible mounting brackets
- New 4.3-10 connectors for improved PIM performance and size reduction
- DC Load Sense in Feeder-to-Antenna applications
Specifications
Product classification
| Product Type | Quadplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 200 mm | 7.874 in |
| Width | 252 mm | 9.921 in |
| Depth | 265 mm | 10.433 in |
| Ground Screw Diameter | 6 mm | 0.236 in |

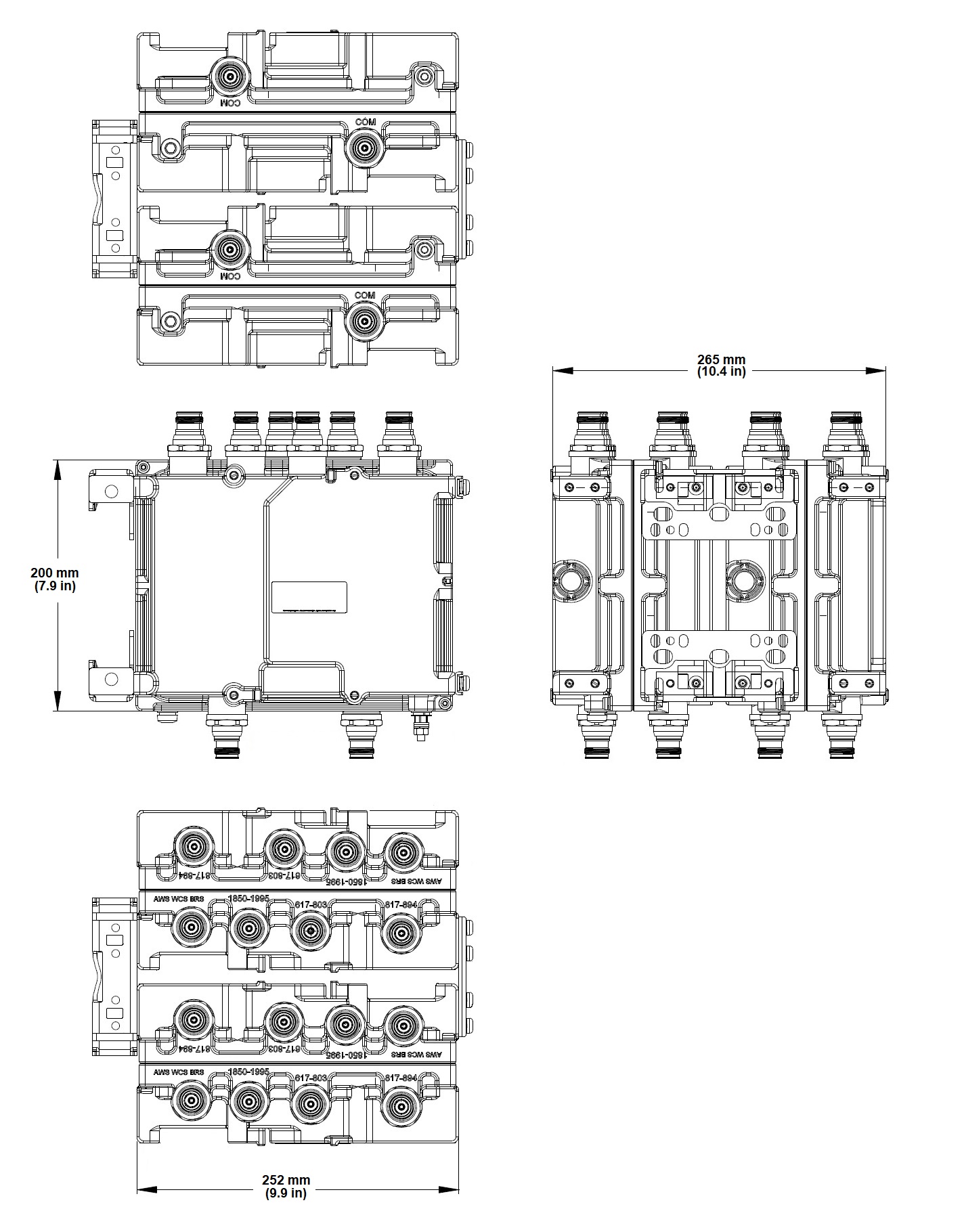

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | AWS 2000 | CEL 850 | LMR 750 | LMR 800 | PCS 1900 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 15 mA @ 12 V | 15 mA @ 24 V |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 10 dB |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 | 3 | 4 | 4 |
| Port Designation | 617-803 | 817-894 | PCS | AWS+WCS+BRS | AWS+WS+BRS |
| License Band | LMR 750, Band Pass USA 600, Band Pass USA 700, Band Pass USA 750, Band Pass | CEL 850, Band Pass LMR 800, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass AWS 2000, Band Pass WCS 2300, Band Pass | AWS 1700, Band Pass AWS 2000, Band Pass WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 617–803 | 817–894 | 1850-1995 | 1695–1780 | 2110–2200 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 | 0.30 | 0.30 | 0.15 |
| Total Group Delay, maximum, ns | 50 | 65 | 25 | 25 | 25 |
| Return Loss, typical, dB | 22 | 22 | 22 | 22 | 22 |
| Isolation, minimum, dB | 50 | 50 | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 120 | 120 | 120 | 120 | 120 |
| Input Power, PEP, maximum, W | 1,200 | 1,200 | 1,200 | 1,200 | 1,200 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | -161 | -161 | -161 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |

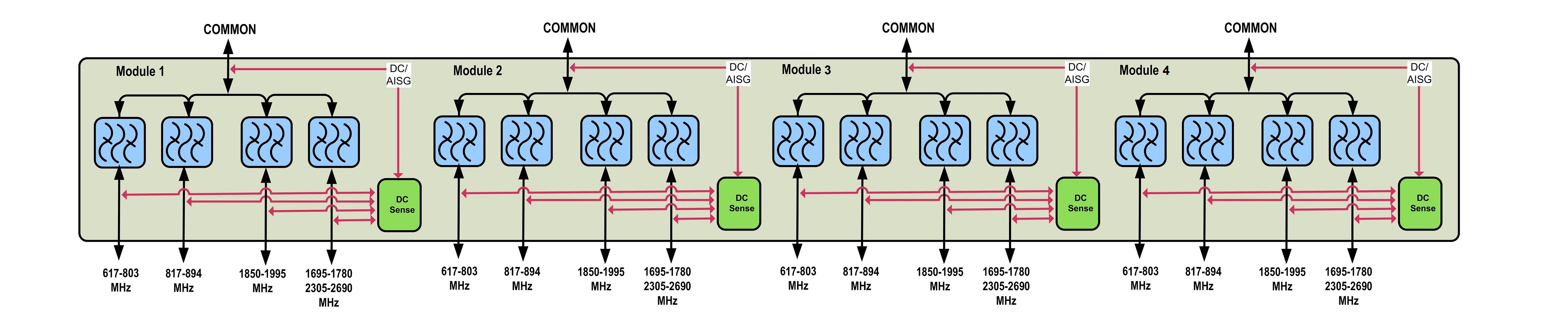

Block diagram
| Click on image to enlarge. |

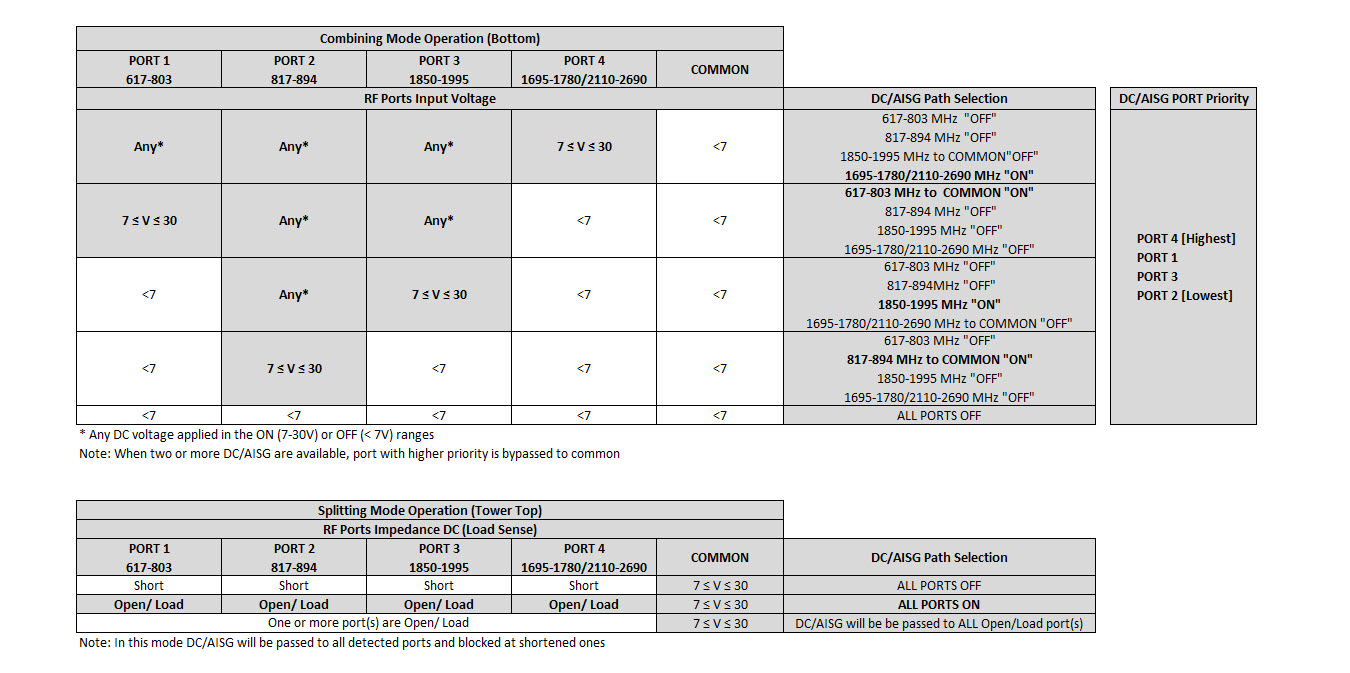

Logic table
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 13.4 L |
| Weight, without mounting hardware | 15.5 kg | 34.172 lb |
Product classification
| Product Type | Quadplexer |
General specifications
| Color | Gray |
| Common Port Label | Common |
| Modularity | 4-Quad |
| Mounting | Pole | Wall |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 200 mm | 7.874 in |
| Width | 252 mm | 9.921 in |
| Depth | 265 mm | 10.433 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Electrical specifications
| Impedance | 50 ohm |
| License Band, Band Pass | AWS 1700 | AWS 2000 | CEL 850 | LMR 750 | LMR 800 | PCS 1900 | USA 600 | USA 700 | USA 750 | WCS 2300 |
Electrical specifications, dc power/alarm
| dc/AISG Pass-through Method | Auto sensing |
| dc/AISG Pass-through Path | See logic table |
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 15 mA @ 12 V | 15 mA @ 24 V |
| Voltage | 7–30 Vdc |
Electrical specifications, aisg
| AISG Carrier | 2176 KHz ± 100 ppm |
| Insertion Loss, maximum | 1 dB |
| Return Loss, minimum | 10 dB |
Electrical specifications
| Sub-module | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 |
| Branch | 1 | 2 | 3 | 4 | 4 |
| Port Designation | 617-803 | 817-894 | PCS | AWS+WCS+BRS | AWS+WS+BRS |
| License Band | LMR 750, Band Pass; USA 600, Band Pass; USA 700, Band Pass; USA 750, Band Pass | CEL 850, Band Pass; LMR 800, Band Pass | PCS 1900, Band Pass | AWS 1700, Band Pass; AWS 2000, Band Pass; WCS 2300, Band Pass | AWS 1700, Band Pass; AWS 2000, Band Pass; WCS 2300, Band Pass |
Electrical specifications, band pass
| Frequency Range, MHz | 617–803 | 817–894 | 1850-1995 | 1695–1780 | 2110–2200; 2300–2690 |
| Insertion Loss, typical, dB | 0.20 | 0.20 | 0.30 | 0.30 | 0.15 |
| Total Group Delay, maximum, ns | 50 | 65 | 25 | 25 | 25 |
| Return Loss, typical, dB | 22 | 22 | 22 | 22 | 22 |
| Isolation, minimum, dB | 50 | 50 | 50 | 50 | 50 |
| Input Power, RMS, maximum, W | 120 | 120 | 120 | 120 | 120 |
| Input Power, PEP, maximum, W | 1,200 | 1,200 | 1,200 | 1,200 | 1,200 |
| 3rd Order PIM, maximum, dBc | -161 | -161 | -161 | -161 | -161 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones | 2 x 20 W CW tones |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 13.4 L |
| Weight, without mounting hardware | 15.5 kg | 34.172 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
