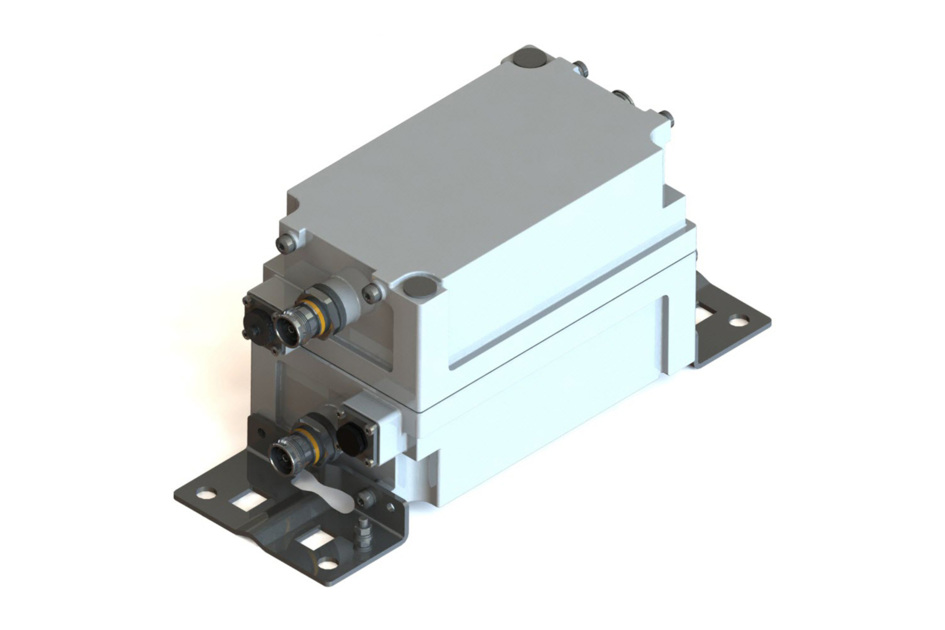

E14R00P46
Tower Mounted Amplifier, Dual 700 MHz with AISG 2.0, with 4.3-10 connectors
Features and benefits
- TMA is operating in AISG & CWA mode, Alarm Current consumption CWA mode 190 mA
- Designed to boost UP-Link Coverage and KPIs
- RET interface to control antenna RET actuators with AISG standard
- Single AISG with 1 RET connector
- Automatic LNA by-pass function
- Built in lightning protection
- Connectors “in line”
- 2 input ports and 2 output ports
Specifications
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 119 mm | 4.685 in |
| Width | 200 mm | 7.874 in |
| Depth | 141 mm | 5.551 in |
| Ground Screw Diameter | 8 mm | 0.315 in |
| Mounting Pipe Diameter Range | 40–160 mm |

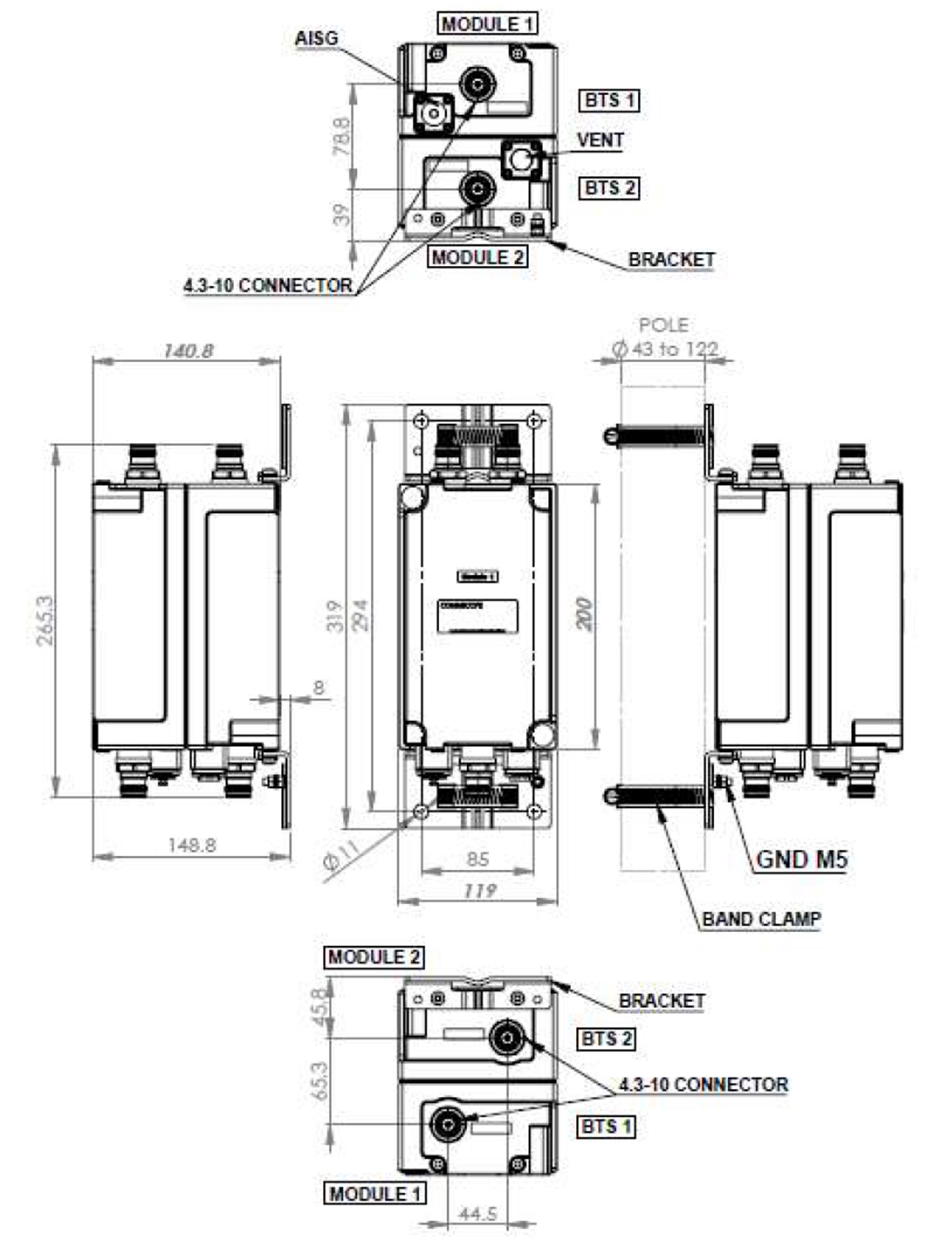

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, LNA | APT 700 | DCS 1800 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 240 mA @ 12 V |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | APT 700, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 703–733 |
| Bandwidth, MHz | 30.00 |
| Gain, nominal, dB | 12.0 |
| Gain Tolerance, dB | ±1 |
| Noise Figure, maximum, dB | 2.0 |
| Noise Figure, typical, dB | 1.8 |
| Group Delay Variation, maximum, ns | 50 |
| Group Delay Variation Bandwidth, MHz | 5.00 |
| Total Group Delay, maximum, ns | 130 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 |
| Return Loss - Bypass Mode, typical, dB | 14 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 758–788 |
| Bandwidth, MHz | 30.00 |
| Insertion Loss, maximum, dB | 0.70 |
| Insertion Loss, typical, dB | 0.50 |
| Group Delay Variation, maximum, ns | 10 |
| Group Delay Variation Bandwidth, MHz | 5.00 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 21 |
| Input Power, RMS, maximum, W | 200 |
| Input Power, PEP, maximum, W | 2,000 |
| 3rd Order PIM, typical, dBc | -161 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |

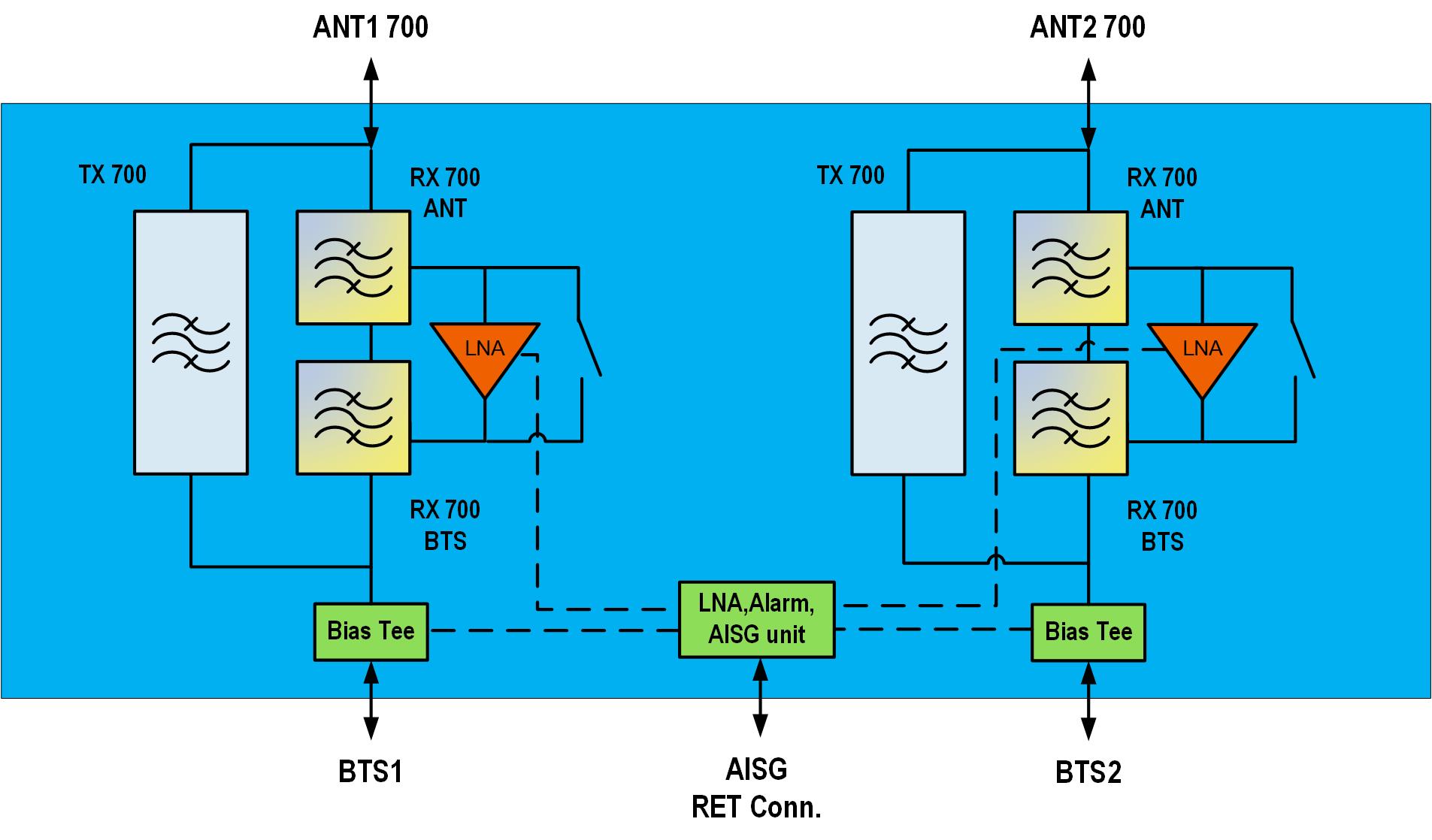

Block diagram
| Click on image to enlarge. |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 3.4 L |
| Weight, net | 5.1 kg | 11.244 lb |
| Weight, without mounting hardware | 4.8 kg | 10.582 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | 1-BTS:1-ANT (Uniplex) | Tower mounted amplifier |
General specifications
| Color | Gray |
| Modularity | 2-Twin |
| Mounting | Pole | Wall |
| Mounting Pipe Hardware | Band clamps (2) |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 119 mm | 4.685 in |
| Width | 200 mm | 7.874 in |
| Depth | 141 mm | 5.551 in |
| Ground Screw Diameter | 8 mm | 0.315 in |
| Mounting Pipe Diameter Range | 40–160 mm |
Electrical specifications
| License Band, LNA | APT 700 | DCS 1800 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 240 mA @ 12 V |
Electrical specifications, aisg
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT |
| License Band | APT 700, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 703–733 |
| Bandwidth, MHz | 30.00 |
| Gain, nominal, dB | 12.0 |
| Gain Tolerance, dB | ±1 |
| Noise Figure, maximum, dB | 2.0 |
| Noise Figure, typical, dB | 1.8 |
| Group Delay Variation, maximum, ns | 50 |
| Group Delay Variation Bandwidth, MHz | 5.00 |
| Total Group Delay, maximum, ns | 130 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Insertion Loss - Bypass Mode, typical, dB | 2.5 |
| Return Loss - Bypass Mode, typical, dB | 14 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 758–788 |
| Bandwidth, MHz | 30.00 |
| Insertion Loss, maximum, dB | 0.70 |
| Insertion Loss, typical, dB | 0.50 |
| Group Delay Variation, maximum, ns | 10 |
| Group Delay Variation Bandwidth, MHz | 5.00 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 21 |
| Input Power, RMS, maximum, W | 200 |
| Input Power, PEP, maximum, W | 2,000 |
| 3rd Order PIM, typical, dBc | -161 |
| 3rd Order PIM Test Method | Two +43 dBm carriers |
Material specifications
| Finish | Painted |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Included | Mounting hardware |
| Volume | 3.4 L |
| Weight, net | 5.1 kg | 11.244 lb |
| Weight, without mounting hardware | 4.8 kg | 10.582 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
