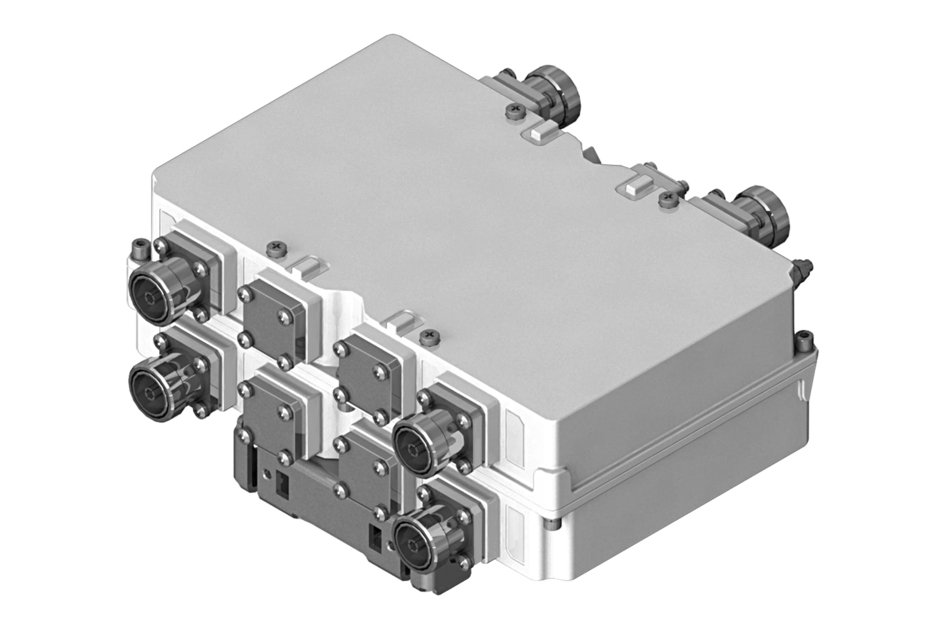

TMAQ23-11A | E15R07P03
Quad Tower Mounted Amplifier WCS
Specifications
Product classification
| Product Type | Tower mounted amplifier |
General specifications
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 170 mm | 6.693 in |
| Width | 270 mm | 10.63 in |
| Depth | 90 mm | 3.543 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Outline drawing
| Click on image to enlarge. |
Electrical specifications
| License Band, LNA | WCS 2300 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 210 mA @ 12 Vdc |
| Alarm Current, CWA Mode | 150 mA +/- 10 mA (10-18 VDC) |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT 0 WCS |
| AISG 2.0 Device Subunit | E25A01P03 1/2//3/4 |
| License Band | WCS 2300, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 2305–2315 |
| Gain, nominal, dB | 13.0 |
| Gain Tolerance, dB | +/-1 |
| Noise Figure, typical, dB | 1.7 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2350–2360 |
| Insertion Loss, maximum, dB | 0.60 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 200 |
| Input Power, PEP, maximum, W | 3,000 |
| 3rd Order PIM, typical, dBc | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |

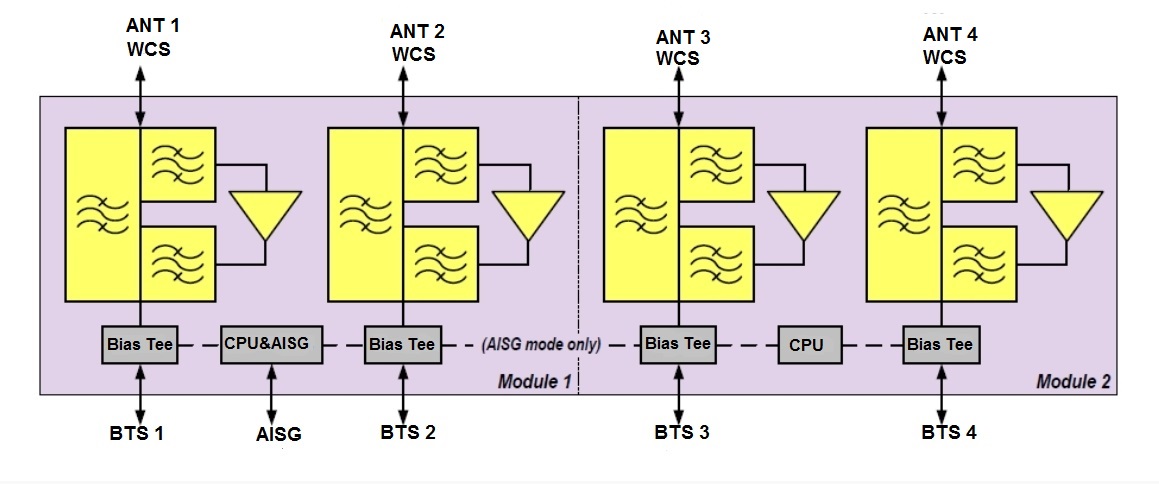

Block diagram
| Click on image to enlarge. |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 7.8 kg | 17.196 lb |
Product classification
| Product Type | Tower mounted amplifier |
General specifications
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Interface Body Style | Long neck |
Dimensions
| Height | 170 mm | 6.693 in |
| Width | 270 mm | 10.63 in |
| Depth | 90 mm | 3.543 in |
| Ground Screw Diameter | 6 mm | 0.236 in |
Electrical specifications
| License Band, LNA | WCS 2300 |
Electrical specifications, dc power/alarm
| Lightning Surge Current | 10 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Current at Voltage | 210 mA @ 12 Vdc |
| Alarm Current, CWA Mode | 150 mA +/- 10 mA (10-18 VDC) |
Electrical specifications, aisg
| AISG Carrier | 2.176 MHz ± 100 ppm |
| AISG Connector | 8-pin DIN Female |
| AISG Connector Standard | IEC 60130-9 |
| Protocol | AISG 1.1 | AISG 2.0 |
| Voltage, AISG Mode | 10–30 Vdc |
Electrical specifications
| Sub-module | 1 | 2 |
| Branch | 1 |
| Port Designation | ANT 0 WCS |
| AISG 2.0 Device Subunit | E25A01P03 1/2//3/4 |
| License Band | WCS 2300, LNA |
Electrical specifications, rx uplink
| Frequency Range, MHz | 2305–2315 |
| Gain, nominal, dB | 13.0 |
| Gain Tolerance, dB | +/-1 |
| Noise Figure, typical, dB | 1.7 |
Electrical specifications, tx downlink
| Frequency Range, MHz | 2350–2360 |
| Insertion Loss, maximum, dB | 0.60 |
| Insertion Loss, typical, dB | 0.50 |
| Total Group Delay, maximum, ns | 50 |
| Return Loss, minimum, dB | 18 |
| Return Loss, typical, dB | 20 |
| Input Power, RMS, maximum, W | 200 |
| Input Power, PEP, maximum, W | 3,000 |
| 3rd Order PIM, typical, dBc | -155 |
| 3rd Order PIM Test Method | 2 x 20 W CW tones |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Weight, net | 7.8 kg | 17.196 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
