EQ-P1018-AL
Base product: HEAVY-DUTY-PLATFORMS

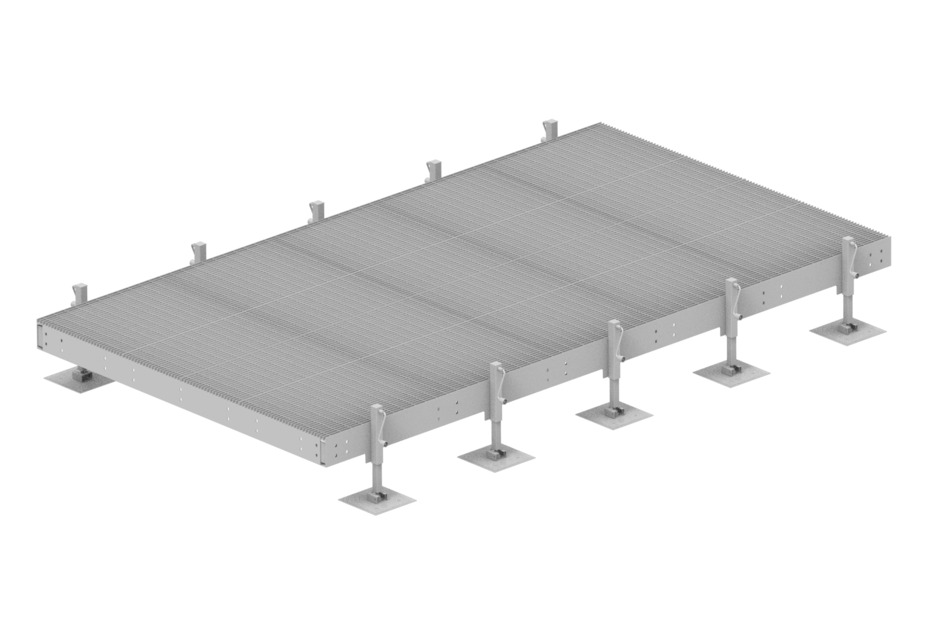

Equipment Platform, 10 ft x 18 ft, base with ten adjustable legs
Specifications
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 10 |
Dimensions
| Height | 698.500 mm | 27.5 in |
| Width | 5486.4 mm | 216 in |
| Length | 3048 mm | 120 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 1340.03 kg | 2954.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Equipment platform system |
General specifications
| Legs, quantity | 10 |
Dimensions
| Height | 698.500 mm | 27.5 in |
| Width | 5486.4 mm | 216 in |
| Length | 3048 mm | 120 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Load Capacity | Up to 10,000 lb (4536 kg) loading |
Packaging and weights
| Included | Frame | Grating | Hardware | Legs |
| Packaging quantity | 1 |
| Weight, net | 1340.03 kg | 2954.257 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
