CM-SH30

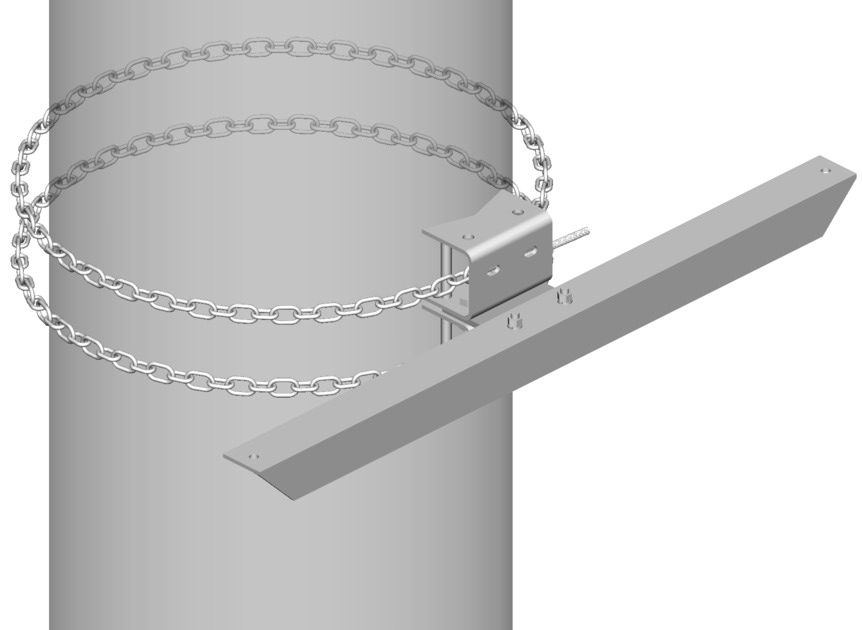

Heavy Duty Stiff Arm Mount, two 8 ft chains

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Monopole Stiff Arm Mounts

Product classification

Product Type Stiff arm mount

General specifications

Chains, quantity 2

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 1168.4 mm | 46 in
Chain Length 2400.3 mm | 94.5 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 203.2 mm | 8 in
Stand-off Distance 1219.2 mm | 48 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 635 mm | 25 in

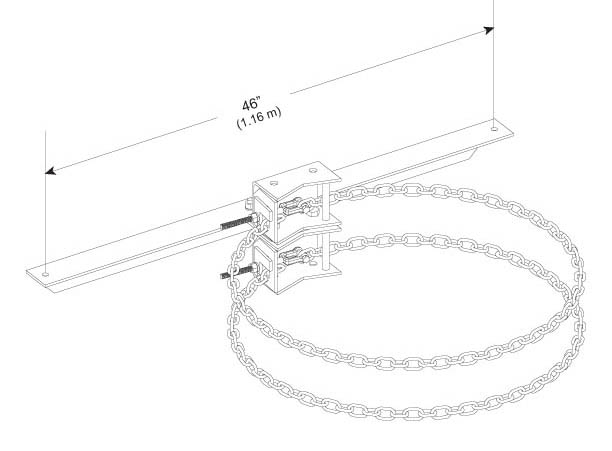

Outline drawing

Click on image to enlarge.

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Chains | Stiff arm attachment
Packaging quantity 1
Weight, net 22.7 kg | 50.045 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product classification

Product Type Stiff arm mount

General specifications

Chains, quantity 2

Dimensions

Height 152.4 mm | 6 in
Width 203.2 mm | 8 in
Length 1168.4 mm | 46 in
Chain Length 2400.3 mm | 94.5 in
Mounting Diameter, maximum 762 mm | 30 in
Mounting Diameter, minimum 203.2 mm | 8 in
Stand-off Distance 1219.2 mm | 48 in
Mounting Circumference, maximum 2392.68 mm | 94.2 in
Mounting Circumference, minimum 635 mm | 25 in

Material specifications

Material Type Hot dip galvanized steel

Packaging and weights

Included Chains | Stiff arm attachment
Packaging quantity 1
Weight, net 22.7 kg | 50.045 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Assembly drawing

Heavy Duty Stiff Arm
